Triducer

Triducer combines Speed, temperature, and Depth into one Transducer. These instructions were provided by Evan at the bottom of this ardupilot.org blog post

Mounting the triducer

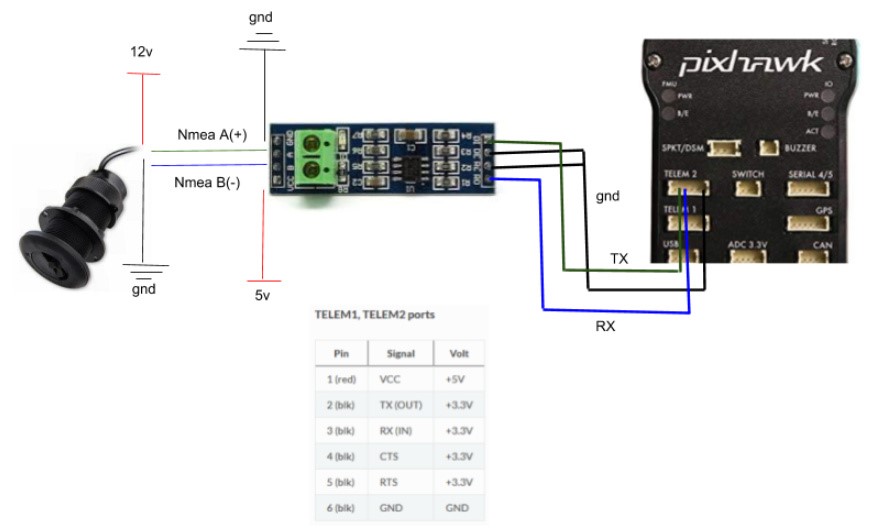

The following example provides schematics to install a triducer on a Pixhawk and uses these parts:

• A triducer. In this example, it is an Airmar DST800 triducer ;
• An RS-485 TTL converter. In this example, it is MAX485 chipset based.

Parameters for this particular hawdware:

• RNGFND_MAXCM = 700
• RNGFND_MIN_CM = 50
• RNGFND_ORIENT = 25
• RNDFND_TYPE = 17
• SERIAL2_PROTOCOL = 9
• SERIAL2_BAUD = 4

Troubleshooting

It is possible to connect the triducer (or other transducers) to a computer through an RS-485 to USB converter. Once it is properly working, it is possible to connect to the appropriate COM port with a 4800 baud rate.

Note

This page needs some improvement. Please, help this task by opening an issue on GitHub with more useful information to add here.
