Buzzer (aka Tone Alarm)

../_images/pixhawk_buzzer.jpg

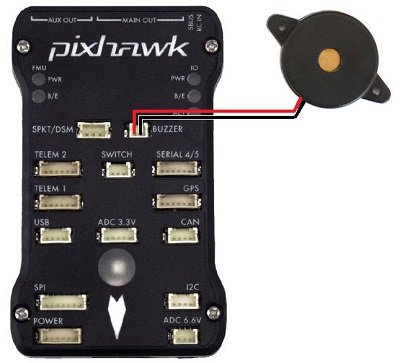

A buzzer (or Tone Alarm) can be used to audibly indicate status changes for the vehicle. Depending on board capabilities, this can be an active device (only needs voltage applied to produce a single frequency tone), as shown below, or a passive piezo device driven by PWM capable of producing variable tones, as shown above. Some boards can use either type.

../_images/buzzer.jpg

If a passive piezo is used, it can play various sounds including the Arming buzz and Lost Vehicle Alarms (search for “Lost Copter Alarm” on this page , “Lost Plane” in the RCx_OPTIONS, for example, RC5_OPTION , or “Lost Rover” in the Auxiliary Functions).

If an active buzzer is used, it can indicate the following:

STATUS Pattern
ARMING 3 sec long Beep
ARMING FAILURE Single Beep
DISARMED Single Beep
BATTERY FAILSAFE Single Beep repeating every 3 sec
EKF FAILURE Beeeep-Beeep-Beep-Beep
LOST VEHICLE Beep-Beep repeating every 3 sec

Using an active buzzer instead of a passive buzzer

An active buzzer can be used with boards setup for a passive buzzer in two ways.

First, the active buzzer can simply replace the passive piezo, paying attention to the polarity of the buzzer (unlike passive piezo buzzers, active buzzers need to be connected with the right polarity in order to function). It will play all the sounds, however, at lower volume and without the precise tone frequencies as played with a passive buzzer.

Alternatively, you can set the NTF_BUZZ_PIN to a GPIO pin, like those used for relay control , and attach an active buzzer to that pin with its negative lead, and apply power (usually +5V) to the buzzer’s positive lead.

Note

For many boards, the GPIO pin numbers are assigned to PWM outputs for alternate use can only be found by looking at that board’s hwdef.dat file here .

Mounting the buzzer

The sound from the buzzer can impact the accelerometers if placed too close to the flight controller which can lead to poor altitude hold performance when the buzzer is activated. The buzzer should ideally be mounted at least 5cm away from the flight controller and the speaker (i.e. the open hole) should not be pointing directly at the flight controller.

Silencing the buzzer

Some flight controllers (like the HobbyKing PixRacer) have built-in buzzers. We recommend disabling the these buzzers by setting the following parameter:
