STorM32 Gimbal Controller

The STorM32-BGC is a relatively low-cost 3-axis brushless gimbal controller that can communicate with ArduPilot (Copter, Plane and Rover) using MAVLink.

With 3-axis control and MAVLink interface, the STorM32 offers more capabilities and than the Tarot Gimbal. MAVLink is a richer communications format that PWM and may be used in the future to provide additional information to the gimbal including centrefugal force corrections leading to better performance during aggressive maneuvers.

Please refer to the STorM32-BGC wiki pages for more detailed information including where the gimbals can be purchased. This gimbal has been tested with a DYS 3-axis brushless gimbal.

Note

Support for this gimbal is included in Copter 3.3 (and higher) for gimbals running v067e (or higher).

Be aware that some v1.3x boards has been found to cause significant RF interference on the 433mhz and 915mhz band. Use with caution, if you are using either 433/915mhz control or telemetry.

Connecting the gimbal to the Pixhawk

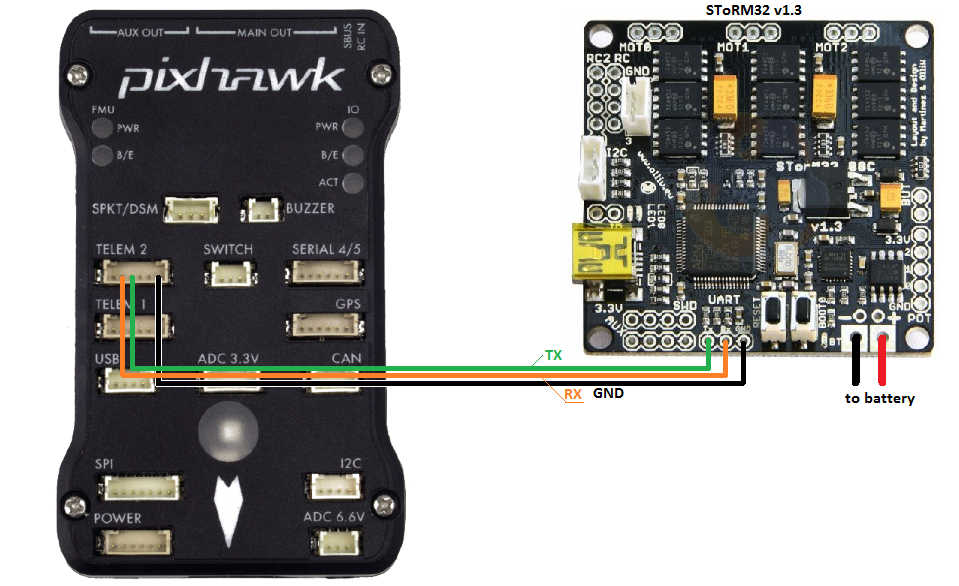

You will need to solder 3-pins of a DF13 6-pin cable to the gimbal controller board as shown above and then plug the other end into one of the Pixhawk’s Telemetry ports (Telem1, Telem2, Serial4).

Note

The remaining 3 pins (VCC, RTS, CTS) of the cable should not be connected.

Configuring the gimbal

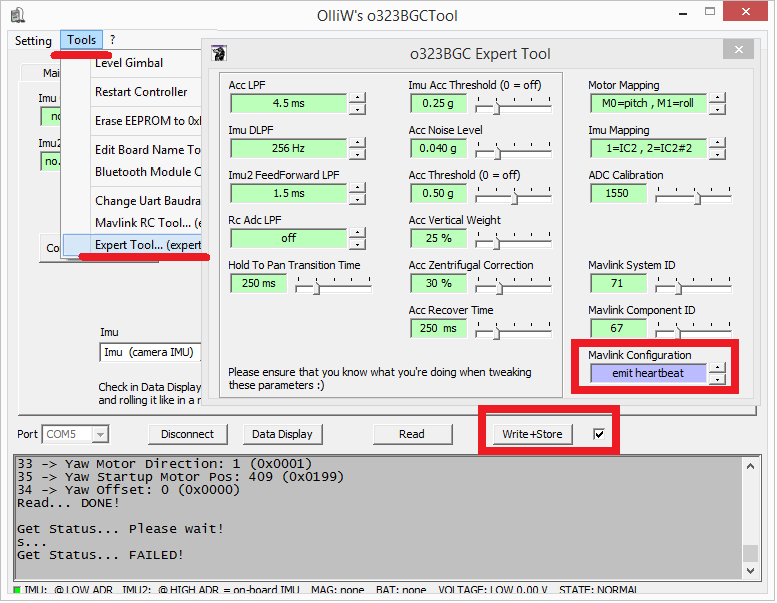

In addition to the regular gimbal configuration described on the STorM32-BGC wiki, the MAVlink heartbeats should be enabled through OlliW’s o323BGCTool’s Tools | Expert Tool screen as shown below.

Set-up through the Mission Planner (MAVLink protocol)

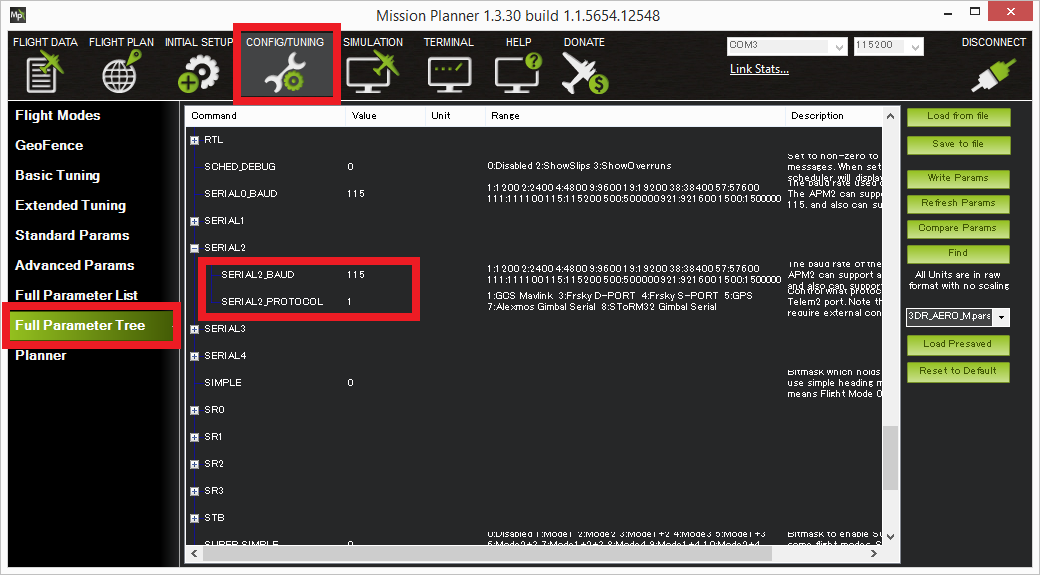

Through your GCS (i.e. MP’s Full Param List or Tree) set the following parameters

If using Telem1:

• SERIAL1_BAUD = "115"
• SERIAL1_PROTOCOL = "1"
• BRD_SER1_RTSCTS = "0"

If using Telem2:

• SERIAL2_BAUD = "115"
• SERIAL2_PROTOCOL = "1"
• BRD_SER2_RTSCTS = "0"

If using Serial4:

• SERIAL4_BAUD = "115"
• SERIAL4_PROTOCOL = "1"

Set MNT_TYPE to “4” to enable the STorM32 gimbal driver (the Pixhawk must be rebooted for this change to take effect).

Set MNT_RC_IN_TILT to “6” if you wish to control the gimbal’s tilt (aka pitch angle) with your transmitters ch6 tuning knob.

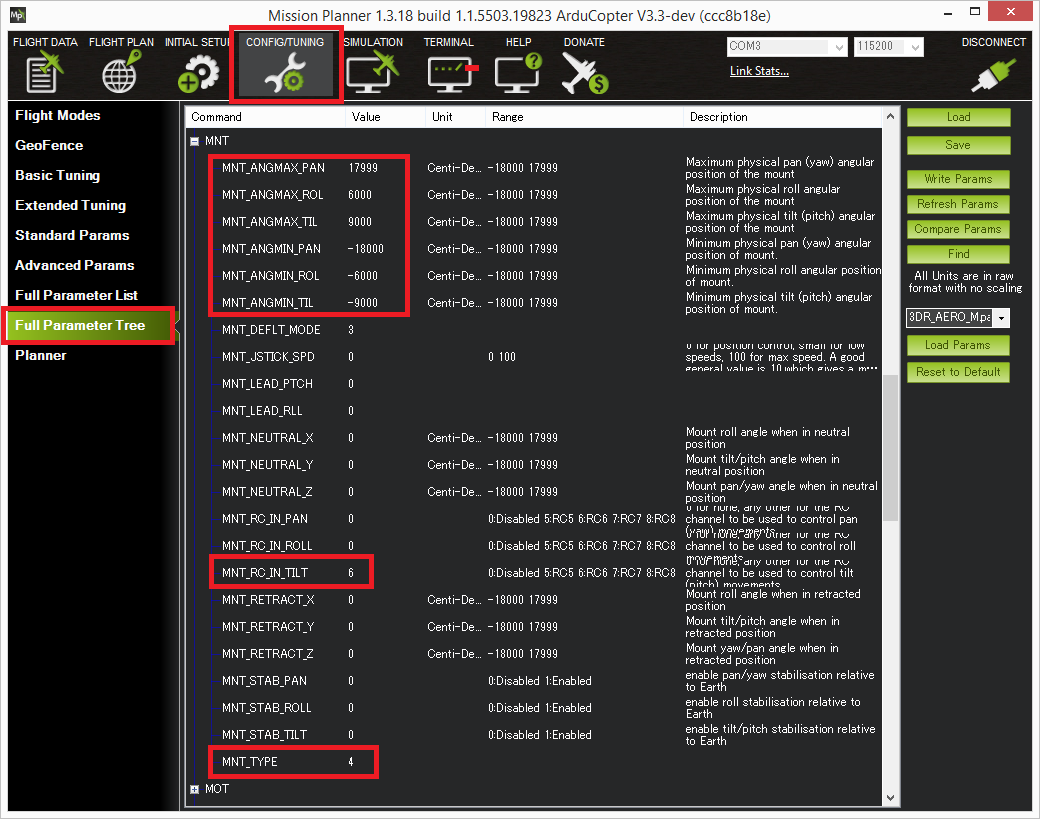

Set the MNT_ANGMAX_PAN, MNT_ANGMIN_TIL, MNT_ANGMIN_ROL and MNT_ANGMIN_PAN, MNT_ANGMIN_TIL, MNT_ANGMIN_ROL to match the range of your gimbal. For example, the screenshot below shows a setup in which the gimbal has:

• 360 of yaw rotation (MNT_ANGMIN_PAN = -18000, MNT_ANGMAX_PAN = 17999)
• 60 degrees of roll (MNT_ANGMIN_ROL = -6000, MNT_ANGMAX_ROL = +6000)
• Can point straight down (MNT_ANG_MIN_TIL = -9000)
• Can point straight up (MNT_ANG_MAX_TIL = +9000)

Set-up through the Mission Planner (STorM32 serial protocol)

The custom STorM32 protocol was added as an alternative to the MAVLink protocol and has the same features. To use the serial protocol use all the same settings as above except:

• Set SERIALX_PROTOCOL to “8” (where “X” is “1”, “2” or “4” depending upon which Pixhawk serial port the gimbal is connected to)
• Set MNT_TYPE to “5”
• When Configuring the Gimbal controller set the “MAVLink configuration” parameter to “no heartbeat”

Testing the gimbal

For instructions for testing the gimbal moves correctly please check the similar section for the SimpleBGC gimbal.

The video below shows the STorM32 being tested on Copter3.3. It demonstrates a few features that would not be possible on a 2-axis gimbal like the Tarot Gimbal.

Resistor issue on some boards

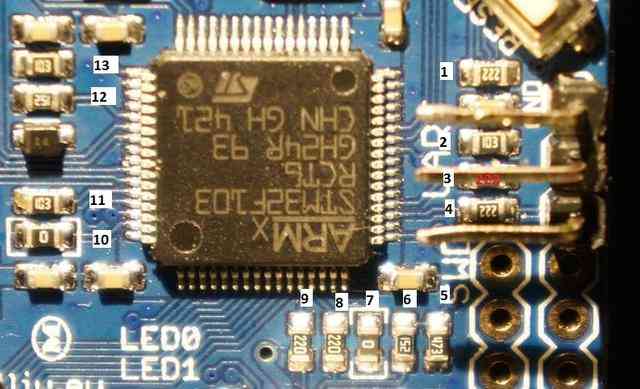

Some in-depth analysis here on rcgroups turned up that some STorM32 boards need resistor #4 (shown in pic below) shorted (i.e. a wire soldered over the top of the resistor to turn it into a regular wire) in order for the gimbal controllers messages to get through to the Pixhawk.
