VIO tracking camera for Non-GPS Navigation

This article explains how a VIO tracking camera such as the Intel Realsense T265 can be used with ArduPilot as a substitude for a GPS allowing position control modes like Loiter, PosHold, RTL, Auto. We will demonstrate how to make a MAVLink bridge between the Intel Realsense T265 and ArduPilot in Python, without the use of ROS.

Note

The choice of Python is optional, and you can use any other wrappers supported by librealsense. ROS users can find the equivalent article here.

Video

Hardware Requirements

Note

Depends on what you need from the T265, the companion computer should have USB2 (pose data only) or USB3 (pose + image data). For localization and navigation, we only need to capture pose data, so RPi 3B is sufficient for the task.

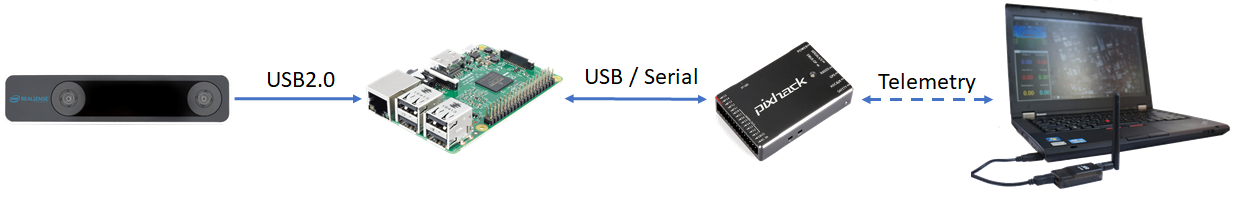

System Overview

../_images/ros-vio-connection.png

In a nutshell, the 6-DOF pose data (position and orientation) and confidence level obtained from the Realsense T265 will be processed by our script and send to ArduPilot through MAVLink. Overall, the script will do the following tasks:

  • Obtain 6-DOF pose data and tracking confidence level data using relevant APIs from pyrealsense2, which is the Python wrapper for librealsense.
  • Perform necessary matrix transformation to align the frames of the Realsense T265 and NED frame as well as other processing steps.
  • Pack pose data into MAVLink message VISION_POSITION_ESTIMATE and confidence level data into a dummy message, then send them to ArduPilot at a predetermined frequency so as to not flood the Flight Controller with incoming data.
  • Automatically set EKF home for simple setup and flying.

Note

For the sake of brevity, explanation of the system will be kept short. More in-depth discussion can be found in the following blog posts: part 4, part 5.

Install librealsense and pyrealsense2

The Realsense T265 is supported via librealsense on Windows and Linux. Installation process varies widely for different systems, hence refer to the official github page for instructions for your specific system:

For RPi running Ubuntu, the installation process for librealsense has been detailed in this wiki. Follow the instructions to install librealsense and pyrealsense2. Since we are not using ROS, realsense-ros is not required.

Configure ArduPilot

Connect to the flight controller with a ground station (i.e. Mission Planner) and check that the following parameters are set as shown below:

After the parameters are modified, reboot the flight controller.

Python Packages Installation

# Update the PYTHONPATH environment variable to add the path to the pyrealsense2 library
export PYTHONPATH=$PYTHONPATH:/usr/local/lib

cd ~/librealsense/wrappers/python/example

# You should see a stream of data coming from the T265.
python3 t265_example.py

# pip install may require sudo, so proceed accordingly
pip install pyrealsense2
pip3 install transformations
pip3 install dronekit
pip3 install apscheduler

# Install serial packages for serial connection
sudo pip3 install pyserial

# Navigate to the location of the scripts
cd ~/path/to/the/script/

# Download the script if you haven’t already:
wget https://raw.githubusercontent.com/hoangthien94/vision_to_mavros/master/scripts/t265_to_mavlink.py

chmod +x t265_to_mavlink.py

How to run

  • Before the script can be run, the PYTHONPATH environment variable needs to be added with the path to the pyrealsense2 library. Alternatively, copy the build output (librealsense2.so and pyrealsense2.so in ~/librealsense/build/) next to the script. First, run the test script t265_test_streams.py to verify installation of pyrealsense2 and the T265 is connected.
# Update the PYTHONPATH environment variable to add the path to the pyrealsense2 library
export PYTHONPATH=$PYTHONPATH:/usr/local/lib

# Navigate to the location of the scripts
cd ~/path/to/the/script/

# Download and run a test script, you should see a short stream of pose data coming from the T265 on the terminal
wget https://raw.githubusercontent.com/hoangthien94/vision_to_mavros/master/scripts/t265_test_streams.py
chmod +x t265_test_streams.py
python3 t265_test_streams.py
  • Modify parameters in the t265_to_mavlink.py script for your system configuration. Most importantly, find and change the following parameters in the script:
# Default configurations for connection to the FCU
connection_string_default = '/dev/ttyUSB0'
connection_baudrate_default = 921600

# Default frequency for pose and confidence messages
vision_msg_hz_default = 30
confidence_msg_hz_default = 1

# Transformation to convert different camera orientations to NED convention. Replace camera_orientation_default for your configuration.
#   0: Forward, USB port to the right
#   1: Downfacing, USB port to the right
camera_orientation_default = 0
  • The parameters can also be passed as input arguments from the command line. Now let’s run the main script:
# For serial connection: set udev.rules in order to get the USB available; allow permission to serial
sudo chmod 666 /dev/ttyUSB0

# When everything is working and all defaults are set:
python3 t265_to_mavlink.py

Tip

View all available input arguments: python3 t265_to_mavlink.py --help

Verification before testing

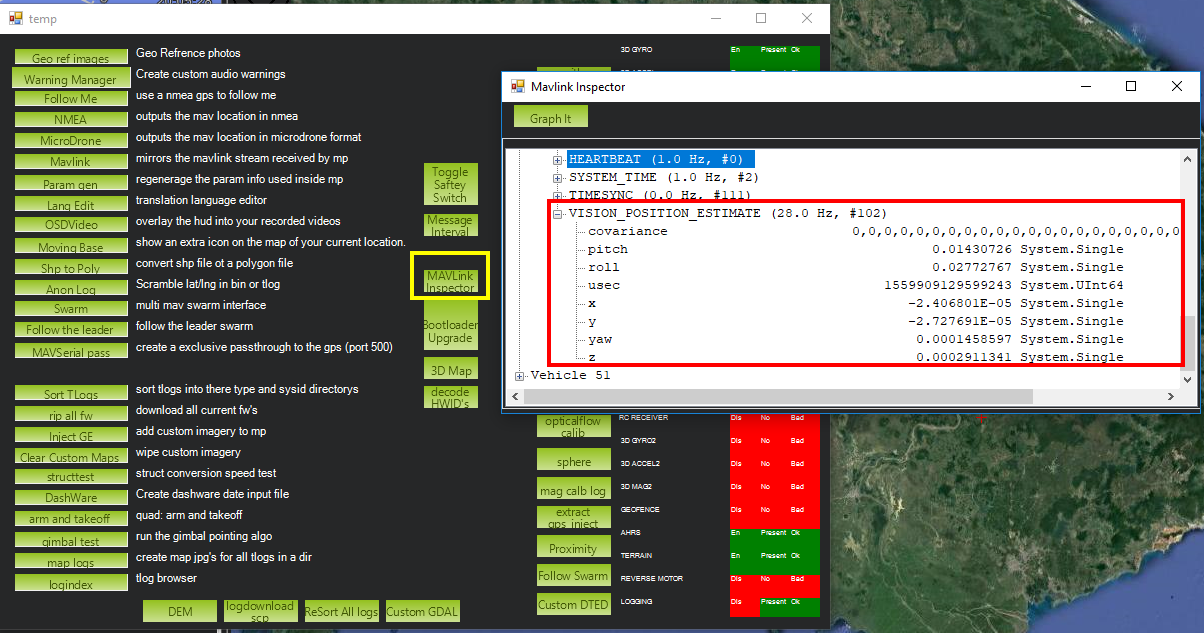

  • To verify that ArduPilot is receiving VISION_POSITION_ESTIMATE messages, on Mission Planner: press Ctrl+F and click on “Mavlink Inspector”, you should be able to see data coming in. The confidence level can be viewed in message VISION_POSITION_DELTA, field confidence.
../_images/ros-vio-check-data.png
  • Changes in value of the tracking confidence level can also be notified on Mission Planner’s message panel, HUD and by speech. These notifications will pop up when the system starts and when confidence level changes to a new state, for example from Medium to High.
    • To enable speech in Mission Planner: Tab Config/Tuning > Planner > Speech > tick on “Enable speech”.
    • If there are some messages constantly displayed on the HUD, you might not be able to see / hear the confidence level notification.
    • If telemetry is slow, notification might be dropped. You can still see the latest message in MAVLink Inspector, message STATUSTEXT.

Ground Test

  • After power on, ssh into the companion computer, navigate to the script and run: python3 t265_to_mavlink.py.
  • Wait until the quadcopter icon appears on the map of Mission Planner.

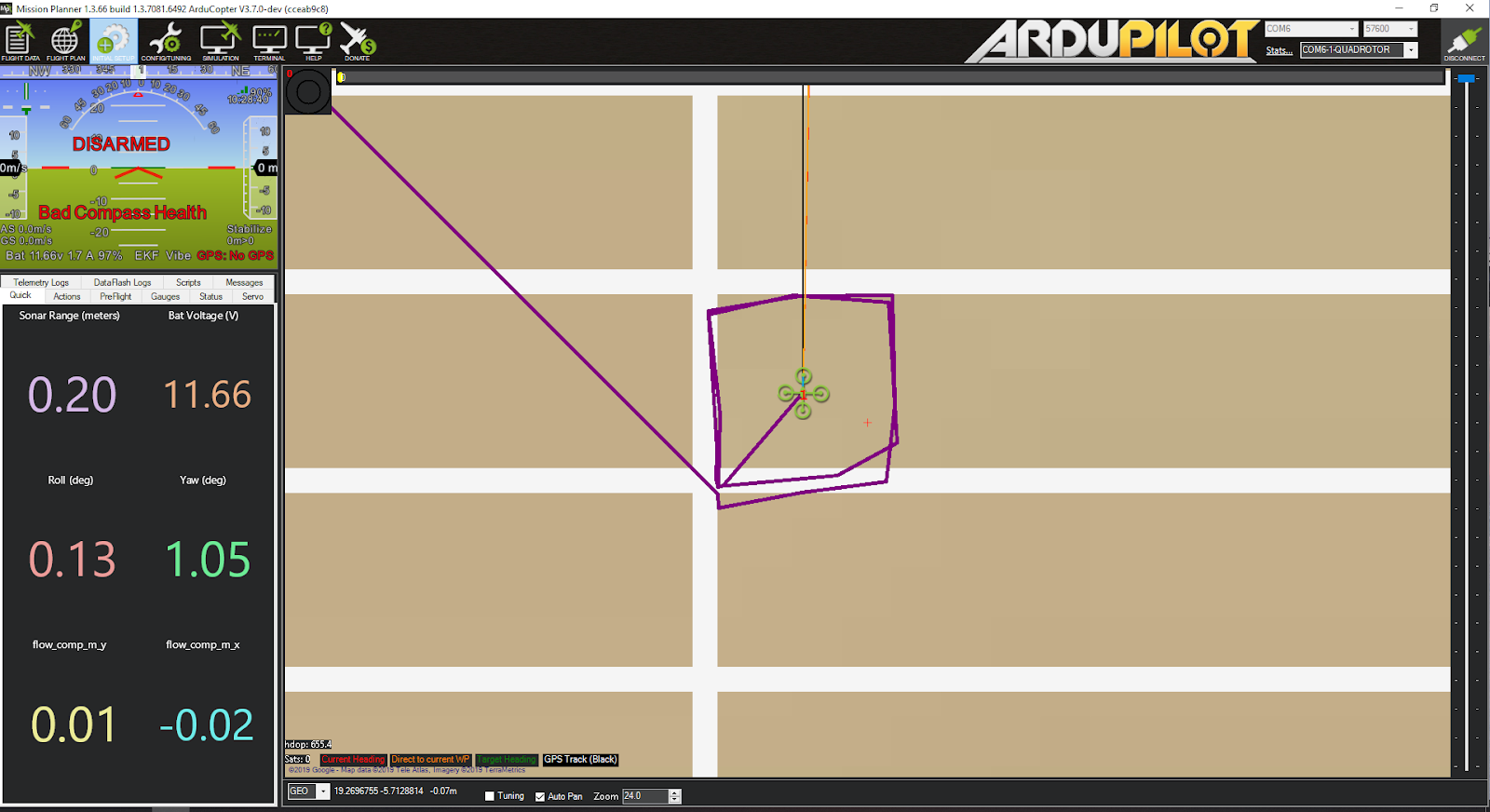

  • Pick-up the vehicle and walk it around, check that the vehicle’s position movements are shown on the map. The trajectory of the vehicle on the map should reflect the real movements without too much distortion or overshoot. Below is an example of walking in a 2m x 2m square.
../_images/ros-vio-ground-test.png
  • During the test, view the confidence level and verify tracking performance. For most applications you should trust the full 6dof pose only in high confidence. If you only need the rotation (3dof), lower confidence poses can be used.
  • If the external navigation data is lost for any reason (tracking lost, script is interrupted etc.), reboot the Flight Controller.

Tip

If you are flying in a confined environment, it might be best to go around the safety perimeter of flying, view the trajectory on the map, then remember not to fly/setup mission beyond that perimeter.

Flight Test

For your first flight:

  • Takeoff in Stabilize or Alt-Hold, check that the vehicle is stable.
  • Move the vehicle around and observe the position on Mission Planner to see if tracking is stable.
  • Switch to Loiter, but always ready to switch back to Stabilize/Alt-Hold if anything goes awry.
  • Otherwise, the vehicle should hover stably and able to keep its position.
  • Move the vehicle around (translate, rotate) at varying speed, always ready to switch back to Stabilize/Alt-Hold.

If everything works as expected, next time you can arm and takeoff in Loiter mode.

Tip

Always confirm that position feedback is running ok before switching to Loiter mode. Also look out for the safety boundary in your environment, i.e. where tracking might get lost due to lack of features, fast or rotation movement.

Indoor and Outdoor Experiments

DataFlash logging

  • The visual odometry information will appear in the VISO dataflash log messages.
  • EKF’s visual odometry information will appear in XKFD messages

Autorun at boot

The script can be run automatically at boot time.

  • Download or create a shell file t265.sh, modify the path to t265_to_mavlink.py script in this shell file, then make it executable:
wget https://raw.githubusercontent.com/hoangthien94/vision_to_mavros/master/scripts/t265.sh

nano t265.sh

# In t265.sh, change the path to t265_to_mavlink.py, in my case:
# /home/ubuntu/catkin_ws/src/vision_to_mavros/scripts/t265_to_mavlink.py

chmod +x /path/to/t265.sh

# Run test the shell. The script t265_to_mavlink.py should run as normal
./t265.sh
  • Depends on your system, use any method to make the script autorun at boot. In the steps below, we will use systemd to turn it into a service.
  • Let’s create a file /etc/systemd/system/t265.service with the following content. Set your actual username after User= and set the proper path to your t265.sh in ExecStart=.
[Unit]
Description=Realsense T265 Service
After==multi-user.target
StartLimitIntervalSec=0
Conflicts=

[Service]
User=ubuntu
EnvironmentFile=
ExecStartPre=
ExecStart=/home/ubuntu/catkin_ws/src/vision_to_mavros/scripts/t265.sh

Restart=on-failure
RestartSec=1

[Install]
WantedBy=multi-user.target
  • That’s it. We can now start the service and automatically get it to start on boot:
systemctl start t265

systemctl enable t265
