UAVCAN Setup

This article provides guidance to setup UAVCAN protocol on Ardupilot.

Tip

The UAVCAN protocol should be enabled first. Please refer to the CAN Bus Setup

Overview

UAVCAN is a lightweight protocol designed for reliable communication in aerospace and robotic applications via CAN bus. The UAVCAN network is a decentralized peer network, where each peer (node) has a unique numeric identifier - node ID and that is only one parameter needs to be set for basic setup.

Detailed description of protocol can be found at https://uavcan.org/

UAVCAN driver for Aurdupilot do not support auto node numbering in current version. All nodes should have the ID explicitly set.

Configuration settings

There are three parameters present at the moment in CAN category of setting:

  • CAN_DX_UC_NODE - which is the node ID of the autopilot
  • CAN_D1_UC_ESC_BM - bitmask that enables sending of ESC commands
  • CAN_D1_UC_SRV_BM - bitmask that enables sending of servo commands

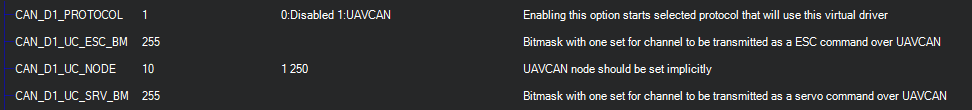

../_images/uavcan-main-settings.png

In a bitmap mask, each position in the binary number represents an ESC or servo ID that the command will be generated for. In case of copters, usually the ESC bitmask should be filled and in case of planes - main one is for servo, though any mix is possible.

To reduce bandwidth, the CAN_D1_UC_ESC_BM and CAN_D1_UC_SRV_BM params should be set to enable only the motor and servo channels you need CAN signals sent to.

  • Example: For a configuration of CAN servos on channels 1,2,4 and ESC motor on channel 3, set:
  • Example: CAN_D1_UC_SRV_BM = 0x0B
  • Example: CAN_D1_UC_ESC_BM = 0x04

GNSS receiver configuration settings

If there is a GNSS connected to UAVCAN network, it has to be enabled in GPS subgroup of parameters. The TYPE parameter should be set to 9 for corresponding GNSS receiver in autopilot.

../_images/uavcan-gnss-settings.png
