Motor Thrust Scaling

Copter includes motor thrust scaling which compensates for the non-linear thrust output of most ESCs and motors.

Tip

The default curve should work for nearly all ESC/motor combinations. Normally the parameters should not be adjusted unless the vehicle’s actual thrust curve has been measured.

Note

Motor thrust scaling was introduced in Copter 3.3.

Thrust Curves

The curve is controlled by two parameters:

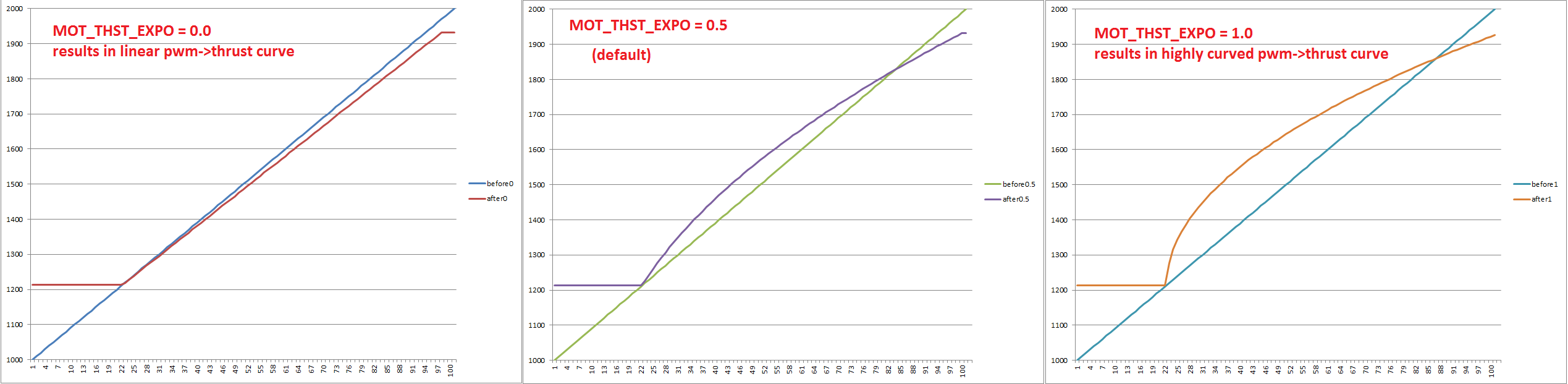

  • MOT_THST_EXPO controls the shape of the thrust curve with “0” meaning a completely linear curve and “1.0” being very curved (see pictures below). The default is “0.65” (the image below incorrectly states the default is 0.5).
../_images/MotThstExpo_graphs2.png
  • MOT_THST_MAX controls the point at which the thrust flattens out near it’s maximum. By default this is 0.95 meaning 95% of full throttle.

Thrust Stands

The thrust stands listed below can be used to measure the PWM signal vs thrust output for a vehicle’s specific motor, esc and battery

MatLab example code

This MatLab example code can be used to calculate the appropriate value for MOT_THST_EXPO based on measured thrust values.

Fill in the thrust array with the actual measured thrust values from the vehicle. When Run, the MOT_THST_EXPO value will be printed.

throttle_pwm = [1000; 1100; 1200; 1300; 1400; 1500; 1600; 1700; 1800; 1900; 2000];
thrust = [0; 68.9; 203.1; 441.0; 785.8; 1177.3; 1655.0; 2118.8; 2673.0; 3153.8; 3490.2];
% Set MOT_THST_MAX to 90% to remove saturated top end
working_range = 1:9;
thrust = thrust(working_range);

% Normalise the throttle and thrust
throttle_normalised = (throttle_pwm(working_range) - min(throttle_pwm(working_range)))./(max(throttle_pwm(working_range))-min(throttle_pwm(working_range)));
thrust_normalised = thrust./max(thrust);
% Perform a least squares fit to solve for a in thrust = (1-a)*throttle + a*throttle^2
mdl = @(a,x)((1-a(1))*x + a(1)*x.^2);
startingVals = [0.5];
coefEsts = nlinfit(throttle_normalised, thrust_normalised, mdl, startingVals);
disp(['MOT_THST_EXPO is : ', num2str(coefEsts)]);
figure(2)
hold on;
plot(throttle_normalised, thrust_normalised, '*');
xgrid = linspace(0,1,100);
line(xgrid, mdl(coefEsts, xgrid), 'Color','g','LineWidth',4);
xlabel('Normalised Throttle');
ylabel('Normalised Thrust');
