Channel Output Functions¶
All flight controller servo/motor outputs may be mapped to any output function supported by ArduPilot. This page describes how to configure these output channels and what each of the available functions is.
The SERVOn_FUNCTION parameters¶
In the advanced parameter view of your GCS you will find that each SERVO output channel has a SERVOn_FUNCTION parameter. For example, SERVO5_FUNCTION controls the output function of channel 5, SERVO6_FUNCTION controls the output function of channel 6 and so on.
Not all the functions are available in each vehicle. Defaults are set to 0 when firmware for a vehicle type is first loaded. Choosing a frame configuration in Mission Planner during initial setup will set the outputs to the basic typical functions for that frame type. For example, fixed wing plane will set the first four outputs, SERVO1-SERVO4 to Aileron, Elevator, Throttle, and Rudder functions, respectively.
All of these functions may be used on multiple channels. So if you want 3 elevator channels for some reason you can set SERVOn_FUNCTION to 19 on 3 of your output channels.
Configuration¶

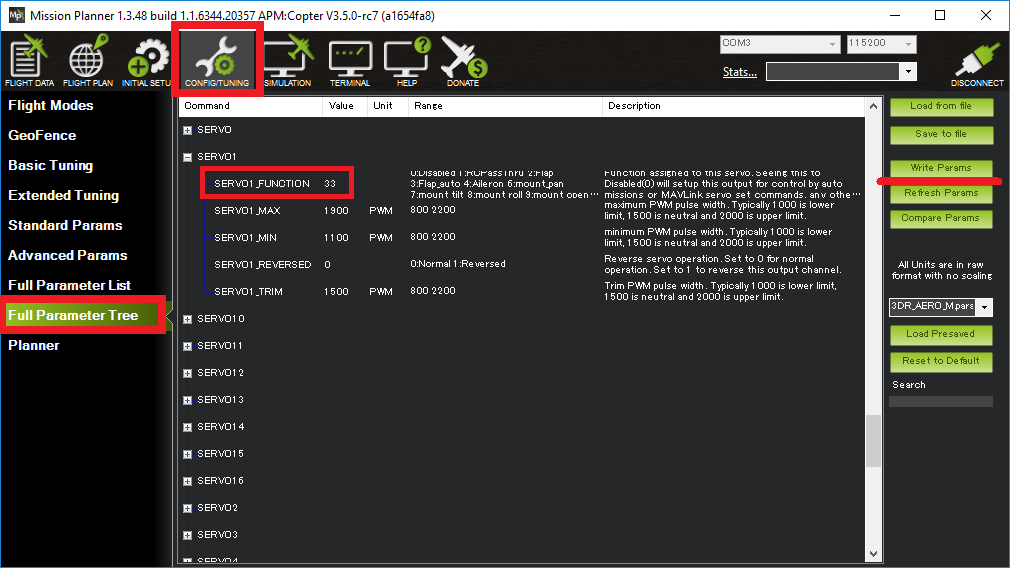

Configuration can be done using the SERVO tab of Mission Planner or by directly setting the SERVOx_FUNCTION parameter for an output.
For example, if you wished to re-order a Copter quad-x frame’s motors from the kitty-corner default to a more logical clockwise method, make these changes:
- SERVO1_FUNCTION leave as 33 (aka “motor1”, front-right)
- SERVO2_FUNCTION change from 34 (aka “motor2”, back-left) to 36 (motor #4, back-right)
- SERVO3_FUNCTION change from 35 (aka “motor3”, front-left) to 34 (motor #2, back-left)
- SERVO4_FUNCTION change from 36 (aka “motor4”, back-right) to 35 (motor #3, front-left)
GENERIC FUNCTIONS¶
| Function | ID | Available in: |
| Disabled | 0 | Plane, Copter, Rover |
| RCPassThru | 1 | Plane, Copter, Rover |
| RCPassThru1 | 51 | Plane, Copter, Rover |
| RCPassThru2 | 52 | Plane, Copter, Rover |
| RCPassThru3 | 53 | Plane, Copter, Rover |
| RCPassThru4 | 54 | Plane, Copter, Rover |
| RCPassThru5 | 55 | Plane, Copter, Rover |
| RCPassThru6 | 56 | Plane, Copter, Rover |
| RCPassThru7 | 57 | Plane, Copter, Rover |
| RCPassThru8 | 58 | Plane, Copter, Rover |
| RCPassThru9 | 59 | Plane, Copter, Rover |
| RCPassThru10 | 60 | Plane, Copter, Rover |
| RCPassThru11 | 61 | Plane, Copter, Rover |
| RCPassThru12 | 62 | Plane, Copter, Rover |
| RCPassThru13 | 63 | Plane, Copter, Rover |
| RCPassThru14 | 64 | Plane, Copter, Rover |
| RCPassThru15 | 65 | Plane, Copter, Rover |
| RCPassThru16 | 66 | Plane, Copter, Rover |
Disabled¶
For normal operation, the Disabled output function sets the output value of the channel to the trim value (for example, if SERVO5_FUNCTION is 0 then channel 5 will output SERVO5_TRIM). The exception to this is when a MAVLink override of the channel or a mission servo set is used. So in some ways “disabled” could be called “mission-controlled”.
When you perform an auto mission you can ask for a servo to be set to a value as part of that mission. In that case you should set the SERVOn_FUNCTION for that channel to Disabled, so that the value doesn’t get changed by another output function immediately after the mission sets the value.
RCPassThru¶
Setting a channel to RCPassThru means it will output the value that is coming into the board from the corresponding input channel. For example, if SERVO5_FUNCTION is 1 (meaning RCPassThru) then channel 5 output will always be equal to channel 5 input.
RCPassThru1 to RCPassThru16¶
This operates the same as RCPassThru explained above. However, instead of the SERVOx output being controlled by the RCx input, any RC input can be assigned to control this output. For example RCPassThru 1 (51) would assign RC Channel 1 input to control the output. So, for output 1, assigning 51 to the SERVO1_FUNCTION is identical to assigning the value of 1 passing RC Channel 1 to the output.
PLANE FUNCTIONS (Also applies to QuadPlanes)¶
| Function | ID | Available in: |
| Aileron | 4 | Plane |
| Elevator | 19 | Plane |
| Throttle | 70 | Plane, Copter, Rover |
| Throttle Left | 73 | Plane, Rover |
| Throttle Right | 74 | Plane, Rover |
| Rudder | 21 | Plane |
| Flap | 2 | Plane |
| Automatic Flaps | 3 | Plane |
| Flaperon Left | 24 | Plane |
| Flaperon Right | 25 | Plane |
| Elevon Left | 77 | Plane |
| Elevon Right | 78 | Plane |
| V-Tail Left | 79 | Plane |
| V-Tail Right | 80 | Plane |
| Differential Spoiler Left1 | 16 | Plane |
| Differential Spoiler Right1 | 17 | Plane |
| Differential Spoiler Left2 | 86 | Plane |
| Differential Spoiler Right2 | 87 | Plane |
| Ground Steering | 26 | Plane, Rover |
| Boost Engine Throttle | 81 | Copter, QuadPlane |
| Motor Enable Switch | 30 | Copter, QuadPlane |
| Landing Gear | 29 | Copter, Plane |
Aileron¶
The Aileron output function provides an aileron output, with its own per-channel trim and range. This is useful when you want to trim each aileron separately, or if your main roll control is setup as ELEVONS, and you also want some normal ailerons.
Elevator¶
The elevator output function provides an elevator output. Multiple outputs are possible, each with separate per-channel trim and range. This is useful when you want to trim each elevator separately, or if your main pitch control is setup as ELEVONS, and you also want some normal elevator.
Throttle¶
Typical servo output for motor power control for vehicles. Multiple outputs can be used for multi-engine vehicles. Primary power control output for normal fixed-wing planes, single rotor helicopter, and rovers.
Throttle Left/ Right¶
In Plane, these outputs are for differential thrust in twin engine aircraft and the amount of yaw affecting the base throttle value is determined by RUDD_DT_GAIN. In Rover, these outputs are for control of the steering motors in Skid-Steering Rovers.
Rudder¶
The rudder output function provides a rudder outputs with its own per-channel trim and range. Separate rudder channels are particularly useful for nose wheel steering where the nose wheel may need to be reversed as compared to the normal rudder channel or for multi-wheel planes.
Flap¶
When a channel is set as a flap it’s value comes from the FLAP_IN_CHANNEL . The reason you may want to use this instead of a RCPassThru is that you can setup multiple flap channels with different trims and ranges, and you may want to take advantage of the FLAP_SLEWRATE to limit the speed of flap movement.
Automatic Flaps¶
The Automatic Flaps output function behaves like the Flap output, except it can also accept automatic flap output control from the TKOFF_FLAP_PCNT and LAND_FLAP_PERCNT parameters, as well as the FLAP_1_SPEED, FLAP_1_PERCNT, FLAP_2_SPEED and FLAP_2_PERCNT parameters. in addition to manual control.
If you have both a FLAP_IN_CHANNEL set and the Automatic Flaps function set then the amount of flap applied is the higher of the two.
Flaperons¶
Using SERVOn_FUNCTION 24 and 25 (FlaperonLeft / FlaperonRight) you can setup flaperons, which are ailerons that double as flaps. They are very useful for aircraft which have ailerons but no flaps.
See the Flaperon guide section for more details.
Note that flaperons act like Automatic or normal flaps, described above for the flap component of the output.
V-tail Left/ Right¶
Provides outputs for V-Tail Planes .
Differential Spoilers Left/Right¶
See Differential Spoilers section.
Ground Steering¶
The GroundSteering output function acts much like the rudder output function except that it only acts when the aircraft is below GROUND_STEER_ALT altitude. At altitudes above GROUND_STEER_ALT the output will be the trim value for the channel.
See the separate page on setting up ground steering
Boost Engine Throttle¶
This output is for throttle control of an auxiliary Booster Motor to add an additional vertical thrust source in Multi-Copter and Quadplane applications.
Motor Enable Switch¶
This provides an output that reflects the ARM/DISARM state of the vehicle to control a motor enable/kill switch. When ARMED, it is at SERVOx_MAX pwm, and at SERVOx_MIN pwm when disarmed.
Landing Gear¶
This output controls the landing gear servo(s) in Copter and Plane. See Landing Gear for more information.
COPTER / QUADPLANE FUNCTIONS¶
| Function | ID | Available in: |
| Motor 1 | 33 | Copter, QuadPlane, HeliQuad, Traditional & Dual helicopters |
| Motor 2 | 34 | Copter, QuadPlane, HeliQuad, Traditional & Dual helicopters |
| Motor 3 | 35 | Copter, QuadPlane, HeliQuad, Traditional & Dual helicopters |
| Motor 4 | 36 | Copter, QuadPlane, HeliQuad, Traditional & Dual helicopters |
| Motor 5 | 37 | Copter, QuadPlane, Dual Helicopter |
| Motor 6 | 38 | Copter, QuadPlane, Dual Helicopter |
| Motor 7 | 39 | Copter, QuadPlane |
| Motor 8 | 40 | Copter, QuadPlane |
| Motor 9 | 82 | Copter |
| Motor 10 | 83 | Copter |
| Motor 11 | 84 | Copter |
| Motor 12 | 85 | Copter |
| Motor Tilt | 41 | QuadPlane |
| Tilt Motor Left | 75 | QuadPlane |
| Tilt Motor Right | 76 | QuadPlane |
| Boost Engine Throttle | 81 | Copter, QuadPlane |
| Motor Enable Switch | 30 | Copter, QuadPlane |
| Parachute Release | 27 | Copter |
| Landing Gear | 29 | Copter, Plane |
| Rotor Head Speed | 31 | Traditional & Dual Helicopter, HeliQuad |
| Tail Rotor Speed | 32 | Traditional Helicopter |
Motors 1 - 12¶
These are the Copter and Quadplane VTOL motor outputs. For Multi-Copters, see Motor Order Diagrams . Or see Tradtional Helicopter, or SingleCopter and CoaxCopter, or HeliQuads (Variable Pitch Multicopters).
Note
It is only possible to modify the output channel used, it is not possible to redefine the direction the motor spins with these parameters. Copter-3.5 (and earlier) do not support assigning the same function to multiple output channels but this feature will be present in Copter-3.6 (and higher).
For Quadplanes, see QuadPlane Frame setup for motor output configuration.
Motor Tilt/ Tilt Motor Left/ Tilt Motor Right¶
These outputs control the tilt servos for Tilt Rotor Planes.
Boost Engine Throttle¶
This output is for throttle control of an auxiliary Booster Motor to add an additional vertical thrust source in Multi-Copter and Quadplane applications.
Motor Enable Switch¶
This provides an output that reflects the ARM/DISARM state of the vehicle to control a motor enable/kill switch. When ARMED, it is at SERVOx_MAX pwm, and at SERVOx_MIN pwm when disarmed.
Landing Gear¶
This output controls the landing gear servo(s) in Copter and Plane. See Landing Gear for more information.
Rotor Head Speed¶
Motor control output for Traditional Helicopter.
Tail Rotor Speed¶
Output to Traditional Helicopter tail rotor ESC/Governor (future enhancement).
ROVER FUNCTIONS¶
| Function | ID | Available in: |
| Ground Steering | 26 | Plane, Rover |
| Throttle | 70 | Plane, QuadPlane, Copter, Rover |
| Throttle Left | 73 | Plane, Rover |
| Throttle Right | 74 | Plane, Rover |
| Winch | 88 | Rover |
| Main Sail Sheet | 89 | Rover |
Throttle¶
Typical servo output for motor power control for vehicles. Multiple outputs can be used for multi-engine vehicles. Primary power control output for normal fixed-wing planes, single rotor helicopter, and rovers.
Throttle Left/ Right¶
In Plane, these outputs are for differential thrust in twin engine aircraft and the amount of yaw affecting the base throttle value is determined by RUDD_DT_GAIN. In Rover, these outputs are for control of the steering motors in Skid-Steering Rovers.
Winch/ Main Sail Sheet¶
These outputs are used to control the Main Sail in Rover based Sailboats. See Sailing Vehicle Setup setup for more information.
ANTENNA TRACKER FUNCTIONS¶
| Function | ID | Available in: |
| Tracker Yaw | 71 | Antenna Tracker |
| Tracker Pitch | 72 | Antenna Tracker |
Tracker Yaw/Pitch¶
These outputs control the pitch and yaw servos for an Antenna Tracker.
CAMERA/GIMBAL FUNCTIONS¶
| Function | ID | Available in: |
| Mount Pan | 6 | Plane, Copter, Rover |
| Mount Tilt | 7 | Plane, Copter, Rover |
| Mount Roll | 8 | Plane, Copter, Rover |
| Mount Deploy/Retract | 9 | Plane, Copter, Rover |
| Camera Trigger | 10 | Plane, Copter, Rover |
| Mount2 Pan | 12 | Plane, Copter, Rover |
| Mount2 Tilt | 13 | Plane, Copter, Rover |
| Mount2 Roll | 14 | Plane, Copter, Rover |
| Mount2 Deploy/Retract | 15 | Plane, Copter, Rover |
| Camera ISO | 90 | Plane, Copter, Rover |
| Camera Aperture | 91 | Plane, Copter, Rover |
| Camera Focus | 92 | Plane, Copter, Rover |
| Camera Shutter Speed | 93 | Plane, Copter, Rover |
Mount Pan/Tilt/Roll/Deploy¶
These control the output channels for controlling a servo gimbal. Please see the camera gimbal configuration documentation for details.
The Mount2 options are the same, but control a second camera gimbal.
Camera_trigger¶
The Camera_trigger output function is used to trigger a camera with a servo. See the camera gimbal documentation for details.
Camera ISO/Aperture/Focus/Shutter Speed¶
These outputs are used to remotely control the above values for BMMC (Blackmagic Micro Cinema Camera) compatible devices.
INTERNAL COMBUSTION ENGINE FUNCTIONS¶
| Function | ID | Available in: |
| Ignition | 67 | Plane, Copter, Rover |
| Choke | 68 | reserved for future use |
| Starter | 69 | Plane, Copter, Rover |
Ignition/Starter/Choke¶
For control of an internal combustion engine’s spark plug/igniter, starter motor, and choke. See Internal Combustion Engines (ICE) .
MISCELLANEOUS FUNCTIONS¶
| Function | ID | Available in: |
| Gripper | 28 | Plane, Copter, Rover |
| EggDrop | 11 | Deprecated |
| Sprayer Pump | 22 | Copter |
| Sprayer Mixer | 23 | Copter |
Gripper¶
This is an output for controlling a servo or electormagnetic gripper for holding items for delivery applications. See Grippers (for delivery) for more information.
Sprayer Pump/Mixer¶
These outputs are controlling a Crop Sprayer .
DEFAULT VALUES¶
Either upon loading the firmware or selecting the frame type, certain default values will be set for the output functions. The user may move these to alternate servo/motor outputs if they desire. The default values are shown below:
| VEHICLE TYPE SERVO | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| MultiCopter | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 | 82 | 83 | 84 | 85 |
| Tricopter | 33 | 34 | 0 | 36 | 0 | 0 | 39 | 0 | 0 | 0 | 0 | 0 |
| SingleCopter/ CoAxialCopter | 33 | 34 | 35 | 36 | 37 | 38 | 0 | 0 | 0 | 0 | 0 | 0 |
| Traditional Helicopter | 33 | 34 | 35 | 36 | 0 | 0 | 0 | 31 | 0 | 0 | 0 | 0 |
| Dual Helicopter | 33 | 34 | 35 | 36 | 37 | 38 | 0 | 31 | 0 | 0 | 0 | 0 |
| HeliQuad | 33 | 34 | 35 | 36 | 0 | 0 | 0 | 31 | 0 | 0 | 0 | 0 |
| Fixed Wing Plane | 4 | 19 | 21 | 70 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Quadplane | 4 | 19 | 21 | 70 | 33 | 34 | 35 | 36 | 0 | 0 | 0 | 0 |
| Quadplane Tricopter | 4 | 19 | 21 | 70 | 33 | 34 | 0 | 36 | 0 | 0 | 39 | 0 |
| Rover | 26 | 0 | 70 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Note
Rover Skid Steered vehicles will need to manually change SERVO1 and SERVO3 to Throttle Left and Throttle Right to enable skid steering.
