FlightDeck FrSky Taranis App

Overview

FlightDeck by Craft and Theory allows easy viewing of flight modes, altitude, speeds, attitude and critical system alerts including failsafes and battery errors such as unbalanced cells warnings and low battery alerts on your transmitters. As such, it is a good companion to Tower or Mission Planner that adds extra confidence to your piloting.

Complete documentation for FlightDeck is available here.

Turnkey Packages

../_images/FrSky_FlightDeck_Package.jpg

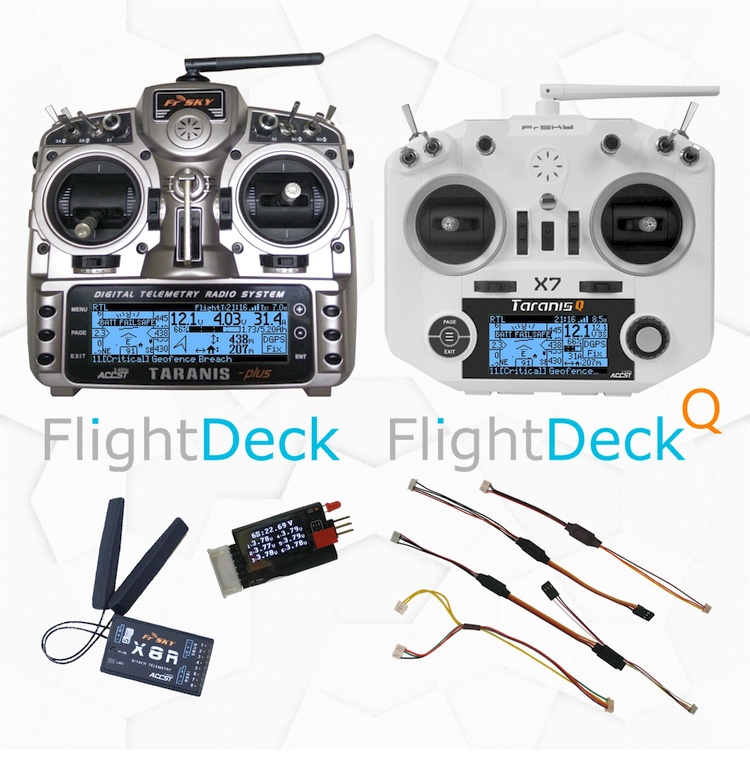

Complete turnkey packages containing the required equipment for FrSky telemetry with FlightDeck preinstalled on the Taranis are available here.

With the turnkey package, FlightDeck can be run in 3 easy steps:

  1. Plug in the telemetry cable with the Pixhawk off;
  2. Set the SERIAL#_PROTOCOL to 10 using your favorite GCS application as exlpained here;
  3. Launch FlightDeck! Turn on your Taranis and long press on the PAGE button.

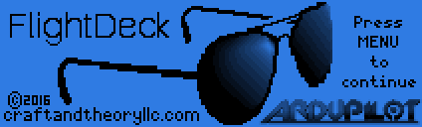

If the Taranis is configured properly, the LCD display should show this introductory screen:

../_images/frsky_flightdeck1.png
