SiK Radio — Advanced Configuration

This article provides advanced configuration information for the SiK Telemetry Radio. It is intended for “power users”, and those who wish to gain a better understanding of how the radios operate.

Tip

Most users will only need the basic guide and feature overview provided in SiK Radio v2.

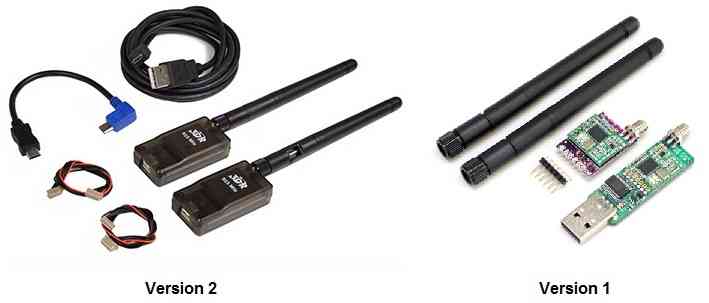

../_images/Telemetry_Ver1Ver2.jpg

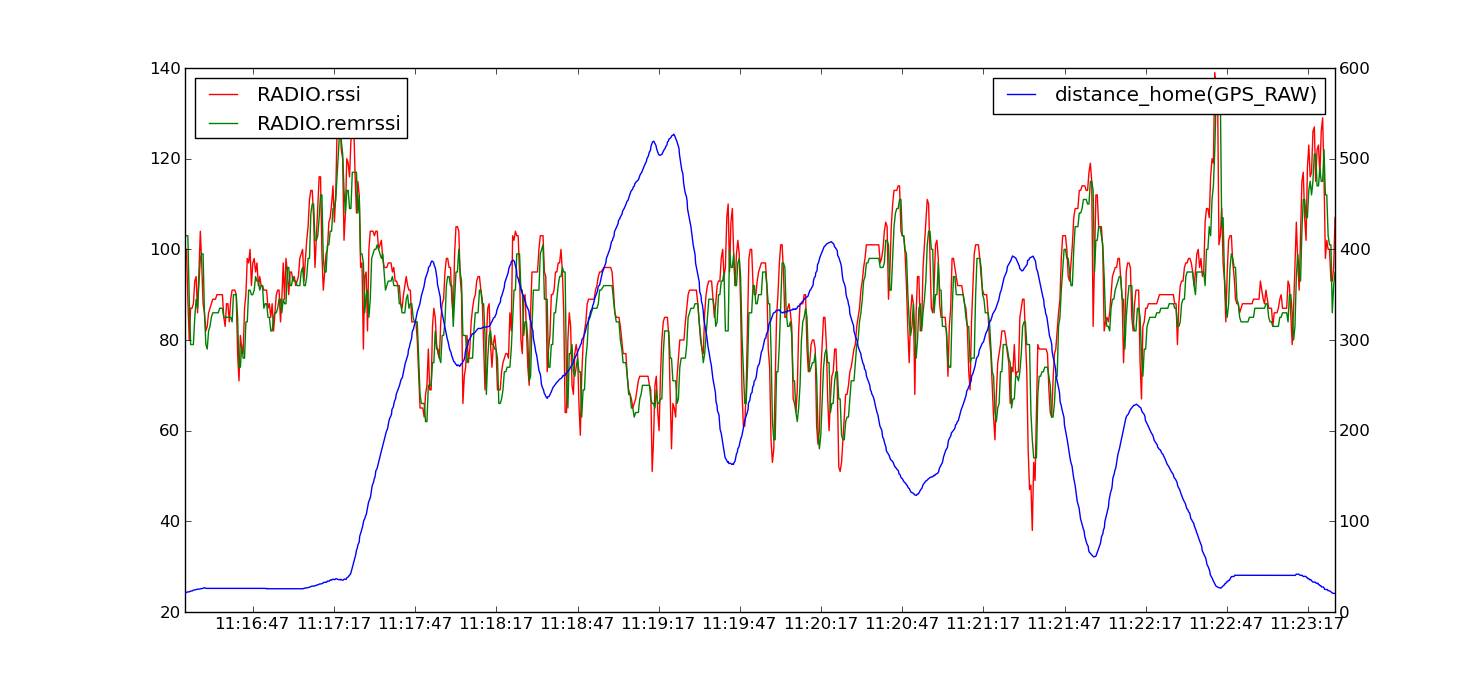

Diagnosing range problems

If you get less range than you would expect from the above information then what you need to do is graph the noise and signal levels from a flight to work out what the problem is.

The most common source of range problems is noise. Noise is unwanted radio emissions in the same frequency range that your radio is using that interferes with the operation of your radio. The radios have telemetry logging built in to help you diagnose the source of the noise.

There are three key types of noise that are likely to affect your radios:

  • Noise from the electronics in your aircraft (such as your motor, ESC, APM etc)
  • Noise from your ground station computer, especially its USB bus
  • Noise from other people operating radios nearby that are on the same frequency as your radios

To work out what sort of noise you have, open up mission planner and choose the “telemetry logs” tab. Then choose Tlog> Kml or Graph. When the window pops up choose Graph Log and select a log from a test flight with your radios. Wait for the log to load, then choose the following items to log:

  • rssi
  • remrssi
  • noise
  • remnoise

Put all 4 values on the one graph. You will end up with a plot like this:

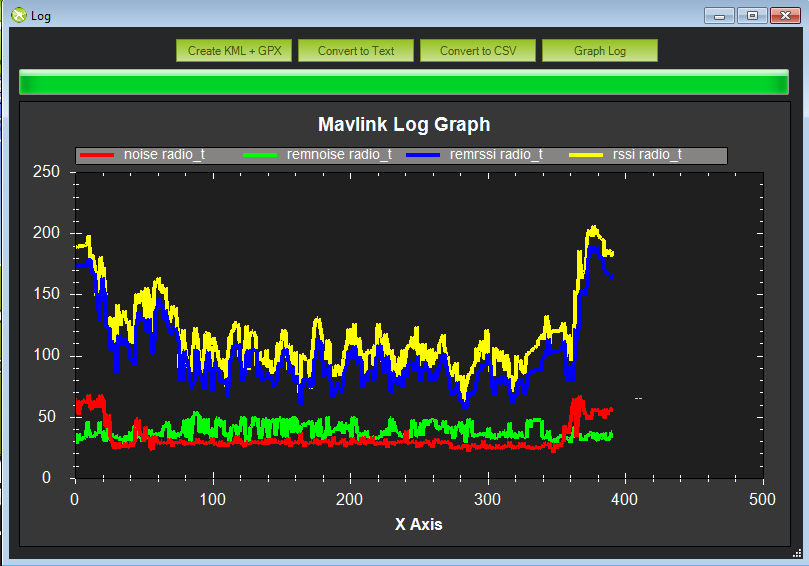

../_images/diag-range-graph1.png

That graph shows you 4 things:

  • the amount of signal being received on the ground
  • the amount of signal being received in the aircraft
  • the amount of noise being received on the ground
  • the amount of noise being received in the aircraft

For the best possible range you want the two noise lines to be low, and the two signal lines to be high. In the above graph (taken from my SkyFun with a pair of 3DR 433 radios) you can see that the noise levels in the plane are higher than the noise levels on the ground. Also note that at the start of the flight (before I started the motor) the noise levels on the plane were lower, then they went up after I started the motor. That shows I’m getting some noise from my motor. If I wanted more range I would need to move the radio further from the motor and ESC.

Perhaps the most common source of noise with the 3DR-433 is noise from the USB bus on your ground station. That shows up as high values for the RADIO.noise value. If you get this, then you could try using a different USB cable, or a different laptop. You can also try using a USB hub between your laptop and your radio.

If the ‘rssi’ and ‘noise’ levels meet on the graph then you will lose the link. To determine what your range would be, a rough rule of thumb is to subtract the ‘rssi’ and ‘noise’ numbers, then divide by 2. That tells you your “fade margin” in decibels. For each 6dB of fade margin your range doubles. So if you have 18dB of fade margin, then you will be able to do roughly 8x whatever range you were at when you measured the margin.

Another key source of range problems is the antenna placement. Your ground station antenna should be well clear of obstructions and a couple of meters off the ground. You may need to build a stand to hold it to get the best range.

Serial and air rates ‘one byte form’

The SERIAL_SPEED and AIR_SPEED parameters are in the same form that APM uses for the SERIAL3_SPEED EEPROM parameter. It is the rate in kbps, truncated to an integer. So ‘9’ means 9600 baud, ‘38’ means 38400, ‘115’ means 115200 etc.

Choosing the air data rate

The key parameter that controls the range of your radios is the AIR_SPEED. The default is 64 (which is 64kbps) will give you a range of over a kilometre with small omni antennas. The lower you set the AIR_SPEED the longer your range, although lowering the AIR_SPEED also lowers how much data you can send over the link.

The radio firmware can only support 13 possible air date rates, which are 2, 4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250. If your application needs a different air rate for some reason then we can potentially add it to the register tables. If you choose an unsupported air rate then the next highest rate from the supported list will be chosen.

What air data rate you choose will depend on the following factors:

  • What range you need
  • What data rate you will be sending
  • Whether you primarily send in one direction, or both
  • Whether you have ECC enabled
  • Whether you have an APM firmware with adaptive flow control

For most telemetry applications you will primarily be sending data mostly in one direction, from the aircraft to the ground station. For most people, the amount of data sent from the ground station to the aircraft is small, just an occasional control packet plus heartbeat packets.

If you are using a joystick to control your aircraft then you will be sending a lot more data from the ground station to the aircraft, and in that case you may find a higher AIR_SPEED is needed, although your range will be reduced.

The ECC parameter makes a big difference to the data rate you can support at a given AIR_SPEED. If you have ECC set to zero, then no error correcting information is sent, and the radio uses a simple 16 bit CRC to detect transmission errors. In that case your radio will be able to support data transfers in one direction of around 90% of the AIR_SPEED.

If you enable ECC (which is highly recommended), then the data rate you can support is halved. The ECC system doubles the size of the data sent by the radios. It is worth it however, as the bit error rate will drop dramatically, and you are likely to get a much more reliable link at longer ranges.

If you have the latest APM firmware (Plane 2.33 or later, or Copter 2.54 or later) then the APM will automatically adapt its telemetry rates to what the radio can handle, by using MAVLink RADIO packets injected into the MAVLink streams by the radios firmware. That allows you to ‘oversubscribe’ your link, by setting up a SERIAL_SPEED larger than what the radios can actually handle.

The other factor in choosing the air data rate is the TDM ‘sync time’. The two radios need to work out each others frequency hopping pattern. They do this by slowly changing the receive channel while rapidly changing the transmit channel. This process of getting in sync with the other radio takes just a few seconds at high air data rates, but gets slower for low air data rates.

For most amateur UAV applications the default AIR_SPEED of 64 with ECC enabled will be good.

Error correction

As mentioned above, the radios support a 12/24 Golay error correcting code if you set the ECC parameter to 1. This means that for every 12 bits of data the radio will send 24 bits, calculating the bits using Golay code lookup tables. The process is reversed on the receiving end, and allows the radio to correct bit errors of up to 3 bits in every 12 bits send (i.e. 25% bit error rate).

The downside of the ECC option is that it halves your available data bandwidth, but in most cases this is worth it, as you are able to sustain a reliable link over longer ranges. You will also get a lot less ‘noise’ in the serial stream.

Power levels

You need to be very careful to configure your radios to stay within the legal power limits of the country you are operating in. The default power level of 20dBm is fine for the US and Australia, as up to 30dBm is allowed by the LIPD class licenses there in the 915-928MHz frequency band for a frequency hopping radio. So as long as your antennas have a gain of less than 10dBi you should be within the ISM rules.

The radio cannot support arbitrary power levels. It can only support the power levels given in the following table

Power (dBm) Power (milliWatts)
1 1.3
2 1.6
5 3.2
8 6.3
11 12.5
14 25
17 50
20 100

If you choose an unsupported power level the radio will choose the next highest power level from the above table.

Please carefully check the EIRP (Equivalent isotropically radiated power) power limits for your country, making sure you take into account the antenna gain. The radio is a ‘DIY’ radio part and it is entirely your responsibility to ensure any use of it is compliant with local rules.

For example, if your local rules allow for a maximum of 30dBm (1W) EIRP, then if you use a amplifier with a 12dB transmit gain, and an antenna with 3dBi gain, then you will need to set TXPOWER to at most 14.

If you don’t know how to calculate it, we’ve made a tutorial for you here: Understanding dB, Watts and dBm.

Using the AT command set

The radios support a variant of the Hayes ‘AT’ modem command set for configuration.

If you connect with a serial console to a radio at the current serial baud rate, you can tell the radio to enter AT command mode by entering the sequence ‘+++’. To prevent data being seen as the command sequence there is a guard time required, so make sure you type nothing on the serial link for 1 second before and after you enter the sequence.

When you enter AT command mode you will receive a ‘OK’ prompt from the radio and it will stop displaying data sent from the other radio.

Once in AT command mode, you can give the radio either ‘AT’ commands to control the local radio, or (if successfully connected) you can use ‘RT’ commands to control the remote radio.

The AT commands available are:

  • ATI - show radio version
  • ATI2 - show board type
  • ATI3 - show board frequency
  • ATI4 - show board version
  • ATI5 - show all user settable EEPROM parameters
  • ATI6 - display TDM timing report
  • ATI7 - display RSSI signal report
  • ATO - exit AT command mode
  • ATSn? - display radio parameter number ‘n’
  • ATSn=X - set radio parameter number ‘n’ to ‘X’
  • ATZ - reboot the radio
  • AT&W - write current parameters to EEPROM
  • AT&F - reset all parameters to factory default
  • AT&T=RSSI - enable RSSI debug reporting
  • AT&T=TDM - enable TDM debug reporting
  • AT&T - disable debug reporting

all of these commands, except for ATO, may be used on a connected remote radio by replacing ‘AT’ with ‘RT’.

Perhaps the most useful command is ‘ATI5’ which displays all user settable EEPROM parameters. That will produce a report like this:

S0: FORMAT=22
 S1: SERIAL_SPEED=57
 S2: AIR_SPEED=64
 S3: NETID=25
 S4: TXPOWER=20
 S5: ECC=1
 S6: MAVLINK=1
 S7: OPPRESEND=1
 S8: MIN_FREQ=915000
 S9: MAX_FREQ=928000
 S10: NUM_CHANNELS=50
 S11: DUTY_CYCLE=100
 S12: LBT_RSSI=0
 S13: MANCHESTER=0
 S14: RTSCTS=0
 S15: MAX_WINDOW=131

The first column is the S register to set if you want to change that parameter. So for example, to set the transmit power to 10dBm, use ‘ATS4=10’.

Most parameters only take effect on the next reboot. So the usual pattern is to set the parameters you want, then use ‘AT&W’ to write the parameters to EEPROM, then reboot using ‘ATZ’. The exception is the transmit power, which changes immediately (although it will revert to the old setting on reboot unless you use AT&W).

The meaning of the parameter is as follows:

  • FORMAT - this is for EEPROM format version. Don’t change it
  • SERIAL_SPEED - this is the serial speed in ‘one byte form’ (see below)
  • AIR_SPEED - this is the air data rate in ‘one byte form’
  • NETID - this is the network ID. It must be the same for both your radios
  • TXPOWER - this is the transmit power in dBm. The maximum is 20dBm
  • ECC - this enables/disables the golay error correcting code
  • MAVLINK - this controls MAVLink framing and reporting. 0=no mavlink framing, 1=frame mavlink, 2=low latency mavlink
  • MIN_FREQ - minimum frequency in kHz
  • MAX_FREQ - maximum frequency in kHz
  • NUM_CHANNELS - number of frequency hopping channels
  • DUTY_CYCLE - the percentage of time to allow transmit
  • LBT_RSSI - Listen Before Talk threshold (see docs below)
  • MAX_WINDOW - max transmit window in msecs, 131 is the default, 33 recommended for low latency (but lower bandwidth)

For two radios to communicate the following must be the same at both ends of the link:

  • the radio firmware version
  • the AIR_SPEED
  • the MIN_FREQ
  • the MAX_FREQ
  • the NUM_CHANNELS
  • the NETID
  • the ECC setting
  • the LBT_RSSI setting
  • the MAX_WINDOW setting

the other settings may be different at either end of the link, although you will usually set them up the same at both ends.

Available frequency ranges

The following table may be helpful matching your local radio regulations to the two radio models available

Radio Minimum Frequency (MHz) Maximum Frequency (MHz)
433 414.0 454.0
900 895.0 935.0

DUTY_CYCLE setting

Most users will want to set the DUTY_CYCLE to 100. The DUTY_CYCLE is the maximum percentage of time that the radio will transmit packets.

The reason the duty cycle is included is that some regions of the world allow for higher transmit power or more frequencies if you have a duty cycle below a given threshold. So for example in Europe you can transmit on a wider range of frequencies in the 433 band if your duty cycle is below 10%.

When you set a duty cycle below 100% then your available bandwidth will be reduced, so you will find it will only work well for telemetry at higher baud rates. It is still quite practical to get good telemetry from an APM with a 10% duty cycle, as telemetry traffic is quite ‘bursty’, so the average transmit time is not generally high anyway.

For example, you can easily receive all telemetry streams at 2Hz with AIR_SPEED set to 128, ECC enabled and a DUTY_CYCLE set to 10.

You can also set a radio to receive only by setting the DUTY_CYCLE to 0. That will work best if you set NUM_CHANNELS to a low number, as otherwise the clock synchronisation will be poor.

Low latency mode

The radio can be configured to use ‘low latency mode’ to improve performance for things like tablet based joysticks etc… The two parameters you should set to enable this mode are as follows:

  • Set MAVLINK to 2. This turns on special checking for the RC_OVERRIDE packets used in joystick control, to allow those packets to always be sent first. If you are using mavlink (you probably are) there are no downsides for choosing this setting.
  • Change MAX_WINDOW from the default of 131 to 33. This will ensure that the GCS can send a packet to the vehicle at least once every 33 msecs. It is worth noting that this will lower the available bandwidth, so if you need absolute maximum bandwidth you are best off with the default of 131. Both radios on a channel must have the same value for this parameter, or they will not be able to talk to each other.

Listen Before Talk (LBT)

The radio can implement ‘listen before talk’ (LBT) functionality to allow it to comply with a wider range of regional regulatory requirements. LBT is a system where the radio is required to listen for a period of time and see no signal from other radios before it is allowed to transmit. By using a non-zero LBT_RSSI value your radio will become more ‘polite’, by waiting until everyone else has stopped transmitting before starting to transmit itself.

To enable LBT in your radio you need to set the LBT_RSSI threshold. This is the signal strength that the radio considers to be an indication that the channel is busy. If you set LBT_RSSI to zero then LBT is disabled.

The minimum non-zero setting is 25 which is a few dB above the receive sensitivity of the radio (-121 dBm). To setup LBT_RSSI you need to know what signal level your local radio regulations require for LBT functionality. Each increment in LBT_RSSI above 25 is roughly equal to 0.5dB above the radios receive sensitivity. So if you set LBT_RSSI to 40 then the radio will consider the channel to be free if the signal strength is less than 7.5dB above the receiver sensitivity.

Alternatively, you can use this formula to get the received signal strength in dBm:

signal_dBm = (RSSI / 1.9) - 127

This formula is approximate, but quite close. See the Si1000 data sheet for a more precise graph.

You will need to lookup your local regulatory requirements to see what LBT_RSSI setting you should use.

The LBT implementation in the radio uses a minimum listen time of 5ms, plus randomised listen time as per the European 9.2.2.2 rules.

Note that in many regions you need to implement LBT in conjunction with AFA (Adaptive Frequency Agility). The radio implements AFA as long as you have NUM_CHANNELS set to more than 1.

Upgrading radio firmware

The firmware for the radios is open source, and new features are regularly added. You should check for new releases regularly to get the most from your radios.

The easiest way to upgrade is to:

  • Connect the radio to be upgraded to your computer using the micro USB cable
  • Open the Mission Planner and go to the Initial Setup | Optional Hardware | SiK Radio page.
  • Select the correct COM port and set the baud rate to 57600. Ensure the “Connect” button is in a disconnected state as shown in the image below..
  • Press the Upload Firmware (Local) button and after a short delay, the “programming” message should appear and the green bar should slowly increase from the left to right.

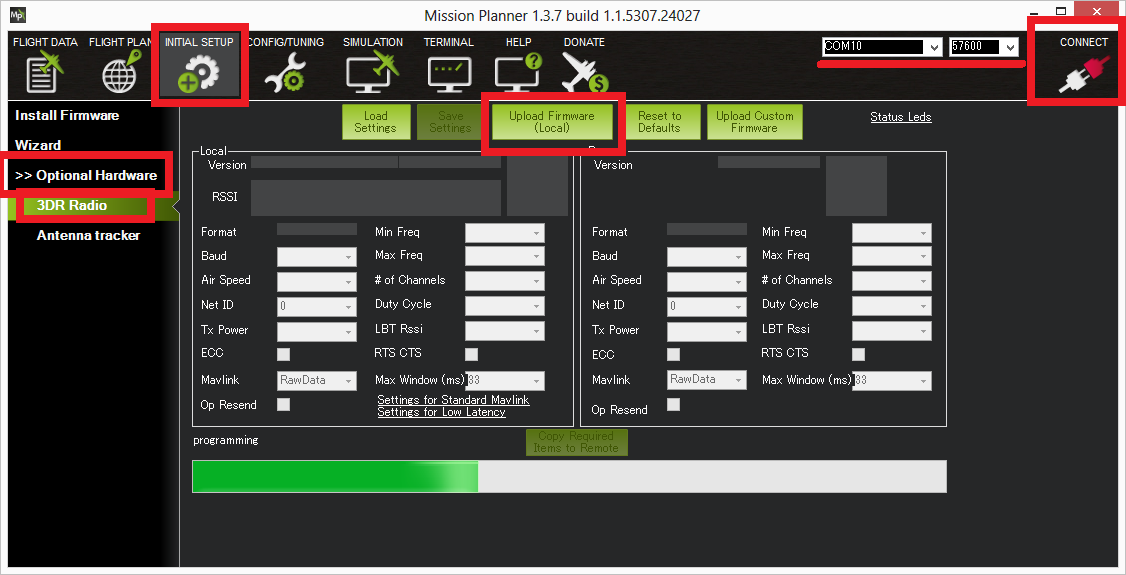

../_images/Telemetry_3DR_Radio_UploadFirmware.png

The above process should be performed for both radios.

Note

Occasionally a new firmware update will modify some settings so it might be a good idea to compare the settings before and after and look for changes.

Using a FTDI-to-USB cable to configure SiK radios

The recommended approach for configuring 3D Radios is to use Mission Planner, as discussed here.

If that approach doesn’t work do the following:

  1. Connect everything and configure the ground radio:
    • Connect your air radio with FTDI-to-USB cable to your computer USB port & note Com port #
      • Use Windows | Device Manager| Ports to identify com port #
      • You’ll know the FTDI cable is correctly oriented on the air radio when a green LED blinks.
    • Connect the ground radio to a USB port on your PC & note COM port # In MP Flight Data tab, at top right, set baud to 57600 & select ground radio COM port #
    • In MP Flight, press Ctrl + A to open the radio configuration window. Click on Load Settings (from the ground radio)
    • In Mission Planner radio configuration window, (MP) check the Advanced Options box
    • If loaded values aren’t the same as above recommended settings, make it so, then click on Save
  2. Configure air radio:
    • In MP at top right, select the air radio’s COM port
    • In MP radio configuration window, click on Load Settings (from air radio)
    • Edit the air radio’s settings (including Advanced Options) so they are exactly the same as the ground radio’s, then click on Save Settings (to air radio)
    • You may not be able to add a value in the Format field, that’s OK
    • In MP, press Configure | SiK Radio and enter exact same settings including advanced > click Save Settings.
  3. Wait for both radios to connect (solid green LED)
  4. Update firmware if above doesn’t work:
    • Click on Update Firmware while connected to each radio in turn. Then repeat the above.
  5. To verify wireless telemetry:
    • Remove the FTDI to USB cable from APM
    • Connect the air radio to APM & LIPO
    • In MP | Flight Data tab select the ground radio COM port then click on Connect

Note

Keep in mind that while you are physically connected to a radio via a specific COM port, you can’t use the ‘Copy Required items to Remote’ button (there is no remote until you go wireless)

This section of the wiki was contributed by the Documentation User Group (DUG).

Forcing bootloader mode

If you somehow manage to get your radio in a state where you can’t upload a new firmware via the Mission Planner then you may need to force the radio into bootloader mode.

The way firmware upload normally works is the planner connects to the radio and sends a AT&UPDATE command to put the radio into bootloader mode ready to receive a new firmware. That only works if the planner can send AT commands to the radio.

If you can’t send AT commands, then you can force bootloader mode by shorting the CTS and GROUND pins on the radio while powering on. The red LED will light up when in bootloader mode.

On the air radios the CTS and GROUND pins are easy to find, as they are marked on the back of the radio (they are two of the FTDI connector pins). On the USB radios it isn’t as obvious, so this diagram may help:

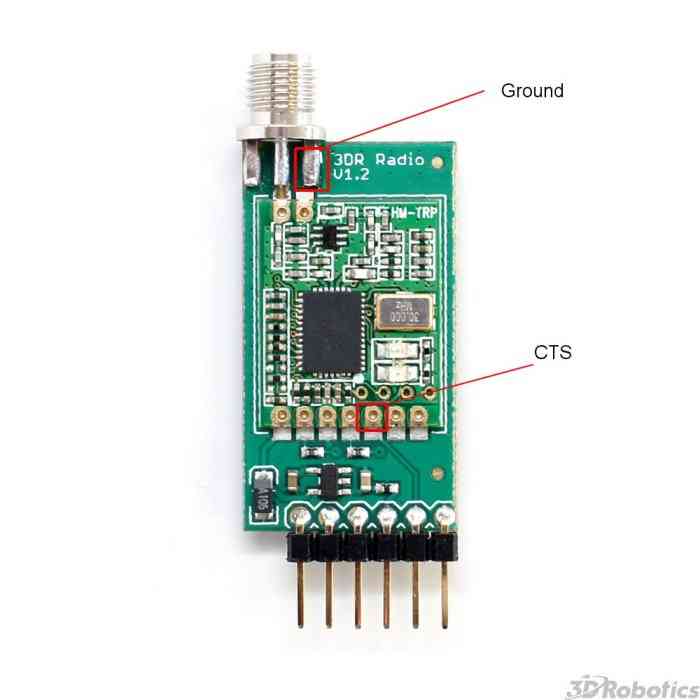

../_images/force-bootloader.jpg

After you have the radio in bootloader mode you should be able to upload a firmware.

Technical Details

When evaluating if this radio meets your local regulations it may be helpful to know what technology it uses.

The firmware implements frequency hopping spread spectrum (FHSS) with synchronous adaptive time division multiplexing (TDM).

Specifically, the radio divides up the frequency range between MIN_FREQ+delta and MAX_FREQ-delta into NUM_CHANNELS channels. The ‘delta’ value is a guard range to ensure that we stay well away from the edges of the allowed band. The guard range is set to half a channel width. The channel width is defined as:

channel_width = (MAX_FREQ - MIN_FREQ) / (NUM_CHANNELS+2)

Additionally, the radio skews the base frequency by up to one channel using a random seed based on NETID. This means that two radios using different NETID numbers use slightly different frequencies.

The radios use GFSK (Gaussian Frequency Shift Keying) for transmission on a particular frequency.

The TDM works by dividing up time into slices, based on multiples of 16 microsecond ticks. The time slicing is designed to give a maximum dwell time on any frequency of 0.4s (this is to meet US regulations). The TDM algorithm then works as follows:

  • the EEPROM parameters determine a set of TDM parameters, particularly the transmit window and silence period, both are in 16 microsecond units. You can view the results using ATI6.
  • the transmit window is scaled to allow for 3 full sized packets to be transmitted
  • the silence period is equal to twice the packet latency, for the given data rate
  • The two radios synchronise their clocks automatically by adding 13 bits of timestamp information to all packets. The timestamp is in 16 microsecond units.
  • Each radio only transmits when it is ‘their turn’. So a radio gets one transmit window worth of time, then there is a silence period when neither radio transmits, then the other radio gets its turn. We never have the situation where both radios transmit at the same time
  • the transmit channels are organised into a random sequence based on the NETID
  • the frequency is changed to the next channel twice for each full TDM round, during the silence periods
  • when not transmitting, data that comes in over the serial port is buffered in a 2048 byte buffer
  • to prevent the buffer from getting too much data (which increases latency and risks overflow) the radios send information on how full the buffer is to the connected device. The APM code adapts its telemetry rates by small amounts to keep the amount of buffered data reasonable.
  • The TDM algorithm is also adaptive, in the sense that when it is the turn of radio A to transmit, it can send a small token to radio B saying “I don’t need to send anything right now, you can take the rest of my timeslice”. That is how the link auto-balances for asymmetric loads
  • during the initial search for another radio, and any time the link is lost, the radios go into a mode where they move the receiving frequency very slowly but move the transmit frequency at the normal rate. This allows the two radios to find each other for initial clock sync. How long this takes depends on the number of channels, the air data rate and the packet loss rate.

In some regions you may need to know the distribution of radiated energy within each channel. That depends on a number of factors, but mostly the frequency deviation used for the GFSK modulation. The following formula will give you an estimate of the frequency deviation:

frequency_deviation = air_data_rate * 1.2    min freq deviation = 40    max freq deviation = 159

where frequency_deviation is in kHz and the air_data_rate is in kilo bits per second.
