Power Module Configuration in Mission Planner

A power module can be used to measure the battery voltage and current for use in the battery failsafe and also to provide a stable power supply to the flight controller

ArduPilot is compatible with a number of power modules.

Mission Planner Setup

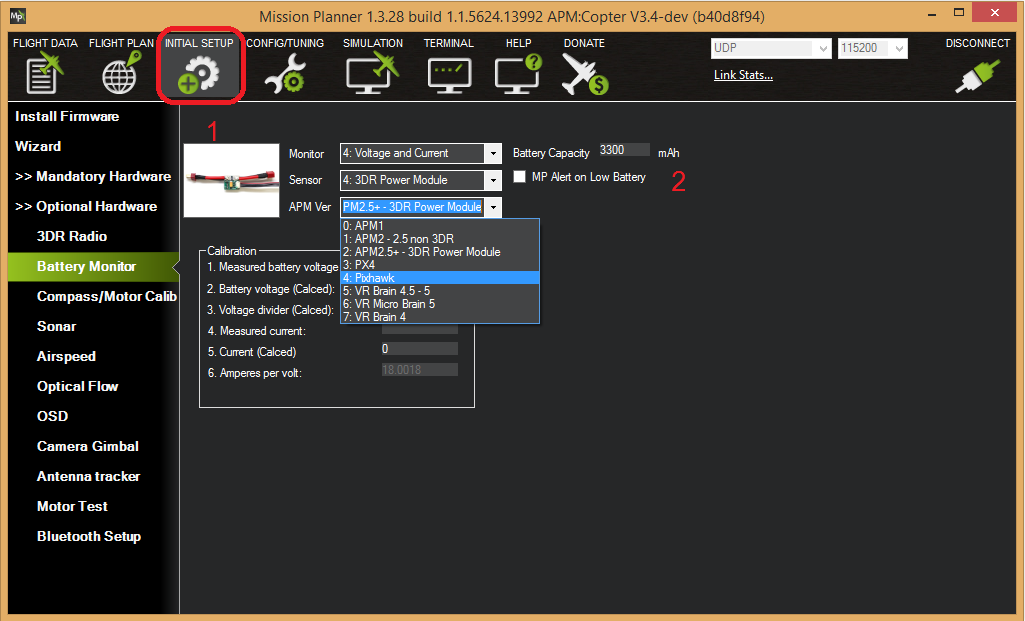

Battery measurement is primarily set up in the Mission Planner’s INITIAL SETUP | Optional Hardware | Battery Monitor screen.

../_images/MissionPlanner_BatteryMonitorConfiguration.png

MissionPlanner: Battery Monitor Configuration

Enable voltage and current sensing

Enter the properties your module can measure, the type of module, the type of flight controller, and the battery capacity:

  • Monitor: Voltage and Current or Battery Volts
  • Sensor: Supported power module, or “Other”
  • APM ver: Flight controller (e.g. Pixhawk )
  • Battery Capacity: Battery capacity in mAh

The Sensor selection list offers a number of Power Modules (including popular models from 3DR and AttoPilot) which you can select to automatically configure your module. If your PM is not on the list then you can select Other, and then perform a manual calibration as described below.

Calibration

The bottom section of the the Battery Monitor screen allows you to calibrate the voltage/current measurement in order to verify that the measured voltage of the battery is correct. You can also set the Sensor selection list to Other and use the calibration process to configure an “unknown” power module.

To calibrate the voltage reading:

  1. Check the voltage of your LiPo battery with a hand-held volt meter or a power analyzer

  2. Connect your Pixhawk-series to your computer and plug in the LiPo battery

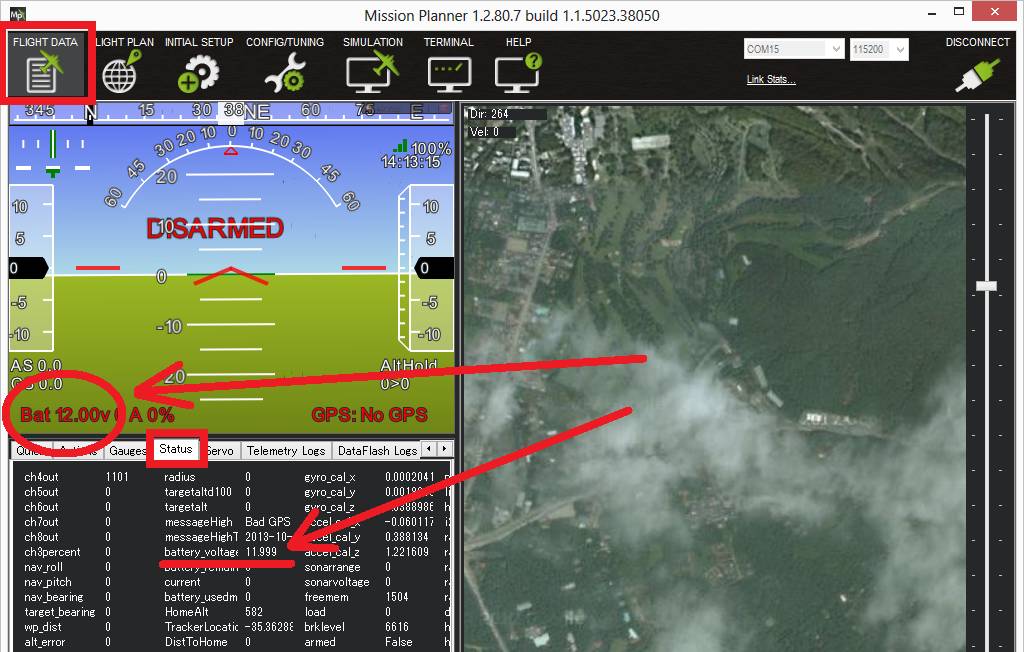

  3. Check the voltage through the Mission Planner’s INITIAL SETUP | Optional Hardware | Battery Monitor screen or on the Flight Data screen’s HUD or Status tab.

    ../_images/MPCheckVoltage.jpg

If you find the voltage is not correct (i.e. if off from the hand-held volt meter’s reading by more than perhaps 0.2V) you can calibrate it by doing the following:

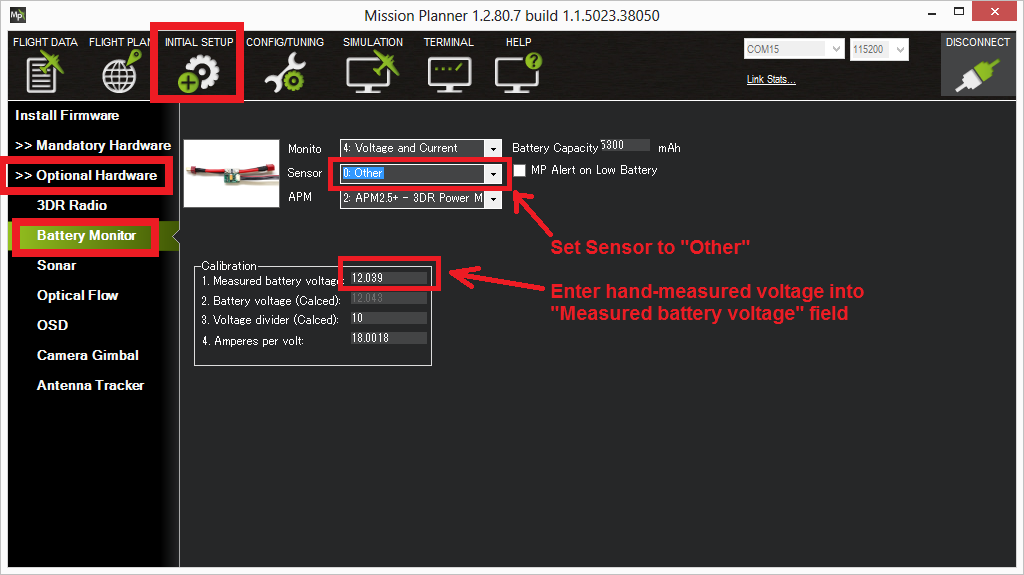

  1. On Mission Planner’s INITIAL SETUP | Optional Hardware | Battery Monitor screen set the “Sensor” to “Other”.

  2. Enter the voltage according to the hand-held volt meter in the “Measured Battery Voltage” field

  3. Press tab or click out of the field and the “Voltage Divider (Calced)” value will update and the “Battery voltage (Calced)” should now equal the measured voltage

    ../_images/CalibrateVoltage.png

Using the power analyser you can also measure the current and compare to results displayed in the Mission Planner.

Note

Most current sensors are not very accurate at low currents (less than 3Amps). Typically you should perform current calibration at around 10A. The exception is PMs that use hall-effect sensors, like those from Mauch.

This video shows the voltage and current calibration process using a Turnigy Power Analyser.

Enable Low Battery Alert

You can set Mission Planner to alert you verbally when your battery is low (using a computerized voice).

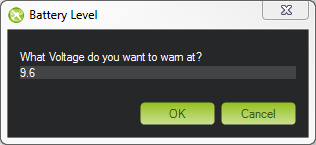

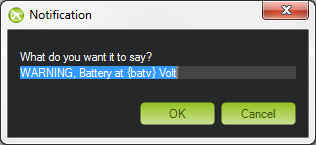

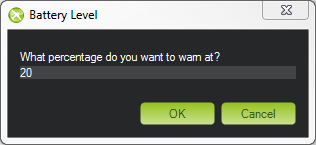

Simply check the MP Alert on Low Battery checkbox and enter the warning you wish to hear, the voltage level and finally the percentage of remaining current.

../_images/MP_battery_alarm_001.png ../_images/MP_battery_alarm_002.png ../_images/MP_battery_alarm_003.png

Connecting power module to alternative pins

The power module is generally plugged into the default port on the flight controller (ie. Pixhawk). If you wish to change where the power module is plugged into the controller, the pins used can be modified using the BATT_VOLT_PIN and BATT_CURR_PIN parameters.

The list of available analog input pins that can be used are listed on the Hardware Options page for each board (Pixhawk, APM2).
