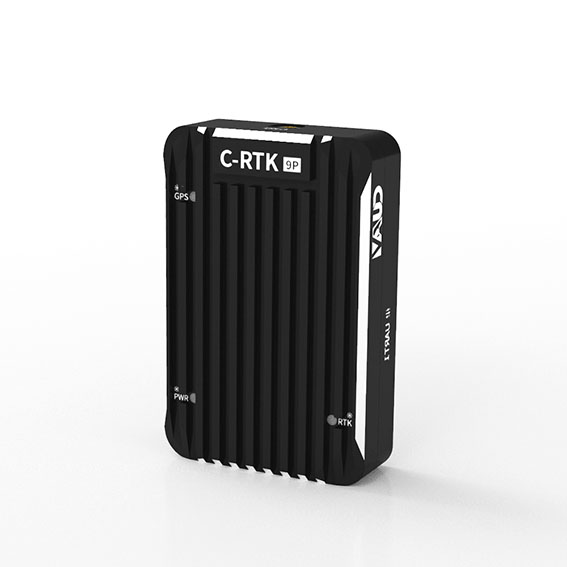

CUAV C-RTK 9P GPS

This article mainly introduces C-RTK 9P based on Ublox F9P. The C-RTK 9P offers more accurate positional accuracy and shorter convergence times than the Ublox M8P module. This description uses the Mission Planner for setup, but you can also use QgroundControl.

../_images/c-rtk-9p.jpg

Note

C- RTK 9P GPS is supported in Copter-3.6.10 (and higher), Plane 3.9.9 (and higher)

Key Features

  • RTK Receiver: Ublox F9P
  • Compass : IST8310
  • GNSS
    • GPS / QZSS,Beidou,Galileo, GLONASS
  • GNSS Bands
    • GPS L1C/A L2C, GLONASS L1OF L2OF, GALILEO E1B/C E5b, BDS B1I B2I, QZSS L1C/A L2C
  • Nav. update rate
    • RTK Up to 20HZ
  • Position accuracy
    • RTK 0.01 m + 1 ppm CEP
  • Convergence time
    • RTK < 10 sec
  • Acquisition
    • Cold starts 24 s
    • Aided starts 2 s
    • Reacquisition 2 s
  • Sensitivity
    • Tracking & Nav -167 dBm
    • Cold starts -148 dBm
    • Hot starts -157 dBm
    • Reacquisition -160 dBm
  • Anti-jamming
    • Active CW detection and removal Onboard band pass flter
  • Anti-spoofng
    • Advanced anti-spoofng algorithms
  • Interfaces
    • 2 UART
    • 1 USB
    • 1 I2C
    • 1 Antenna interface(MMCX)
  • Protocols
    • NMEA
    • UBX binary
    • RTCM version 3.x
    • Supply voltage
    • –40 °C to +85 °C
  • Size - 31.5*48*12MM - weight:21g

Where to buy

You can buy it from CUAV store.

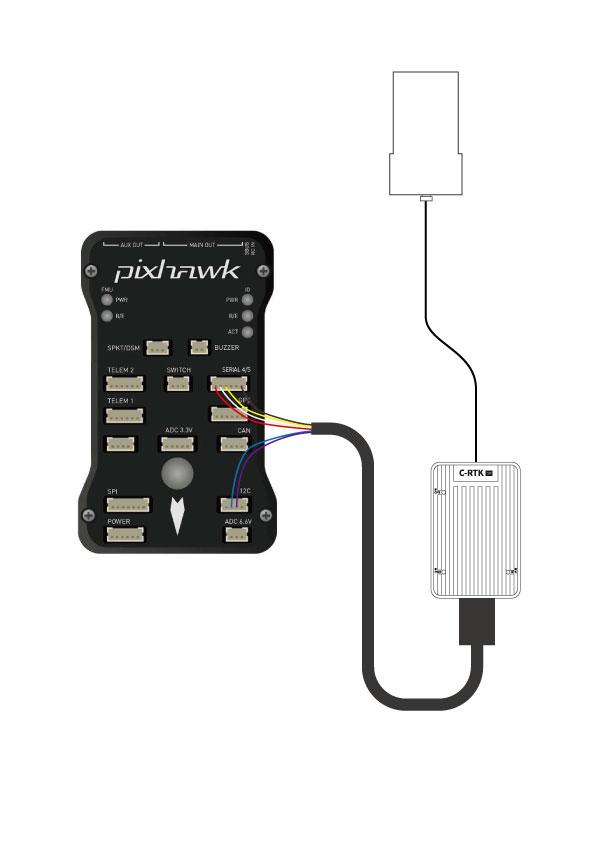

Connect to Pixhawk

../_images/connect-to-pixhawk.jpg

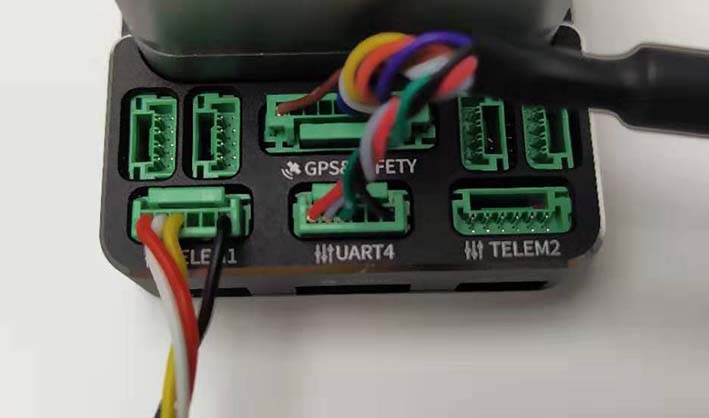

Connect to CUAV V5+ Or V5 nano

../_images/c-rtk-9p-connection.jpg

Note

Please use V5+ or V5 nano special cable,10 pin connector plugged into GPS&SAFETY PORT, 6 pin connector plugged into UART 4.

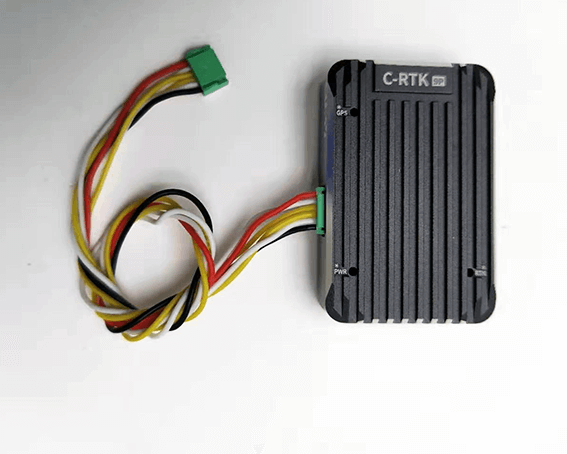

Connect to Others

../_images/c-rtk-9p-connection-to-others.png

Note

If you use a different flight controller, please select the V5+ version kit, which contains a 6 pin to 6pin cable that you can connect to the flight control GPS/GPS2/UART4 interface (it can be connected to Pixhawk2.1, Pixhawk 3 pro, etc).

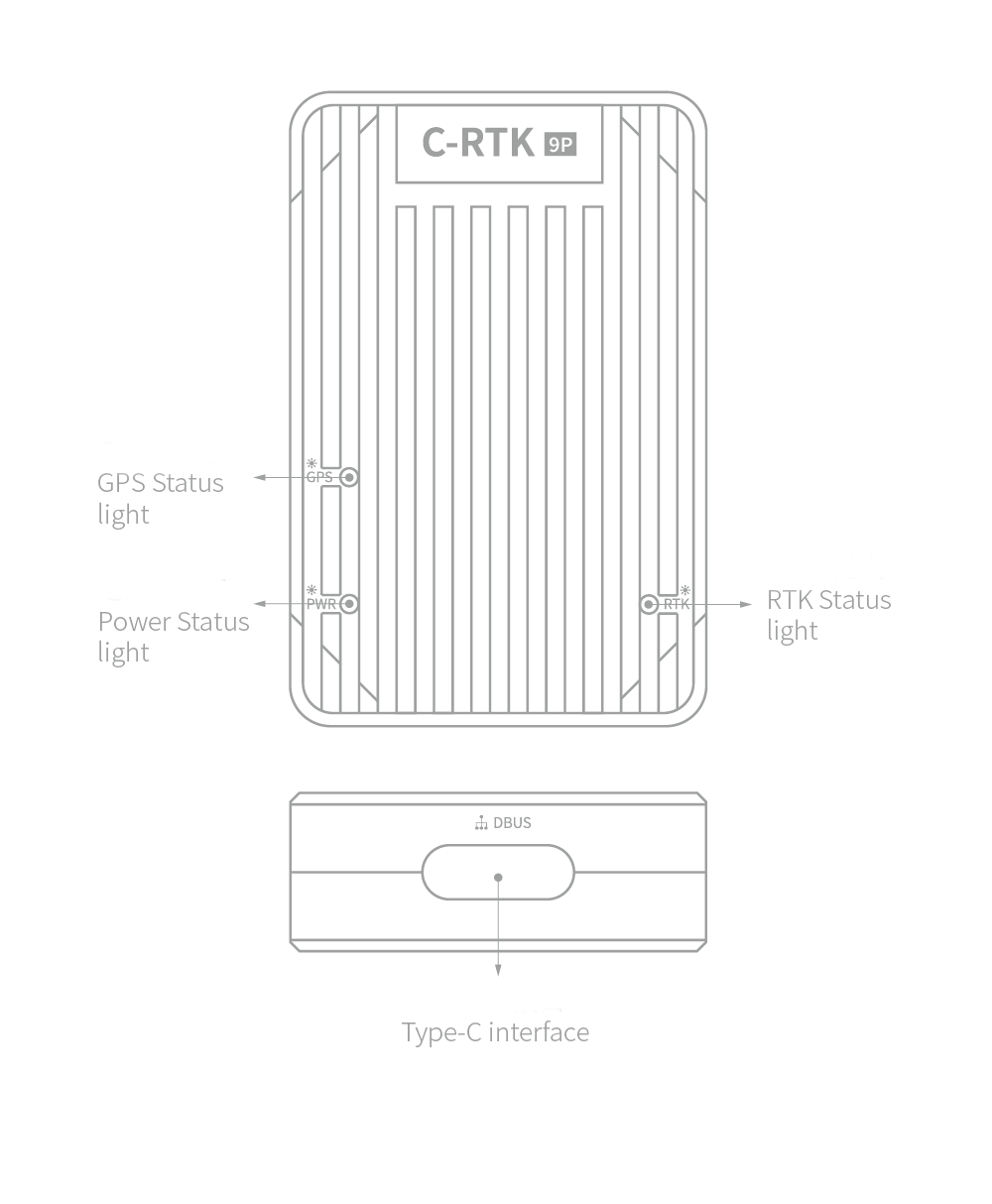

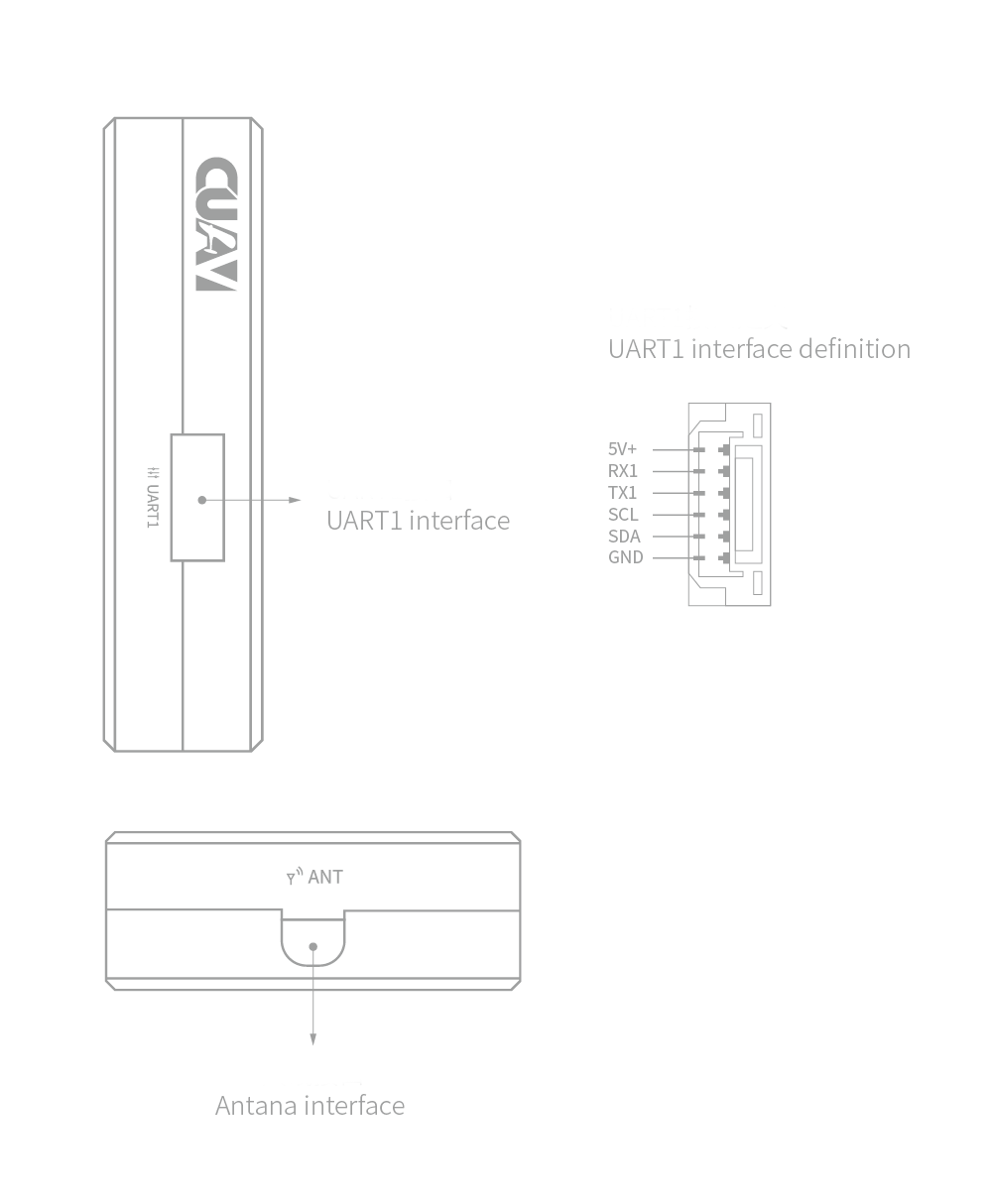

Port and LED

../_images/c-rtk-9p-port-and-led.png

LED status:

RTK status: solid (rtk fixed), Blinking (receiving and using RTCM corrections), off (otherwise).

GPS status:solid(no fix),Blinking(GPS FIX).

PWR status:solid(power input),off( not power input or vcc is not healthy).

../_images/c-rtk-9p-port-and-led2.png

More information

User guide.
