Archived: HIL Quad Simulator

Warning

ARCHIVED ARTICLE

HIL does not work since inertial navigation was introduced with Copter 2.9. The closest alternative we have is SITL.

This article explains how to setup Quad HIL in the mission planner.

What you need

  1. Download Flightgear 2.x.x here
  2. Download the latest APM Mission Planner here.
  3. In the Mission Planner > ‘Configuration tab | Adv Parameter List’ save your current parameters so you can reload them after the simulation.

How to make it work

Safety First: Remove your quad’s props, the motors will be live during the simulation!

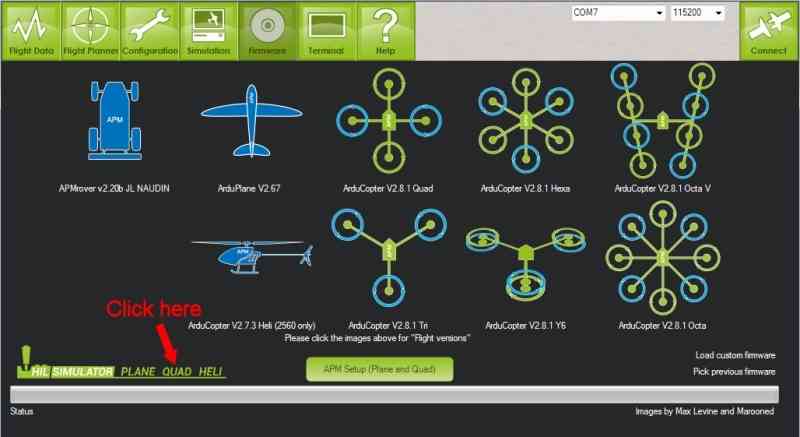

  1. Upload the quad hil firmware
../_images/ac2hilfirmware.jpg

2. Copy quadhil.xml (included with planner) to your FlightGear directory eg

C:Program Files (x86)FlightGeardataProtocol

https://ardupilot-mega.googlecode.com/svn/ArduPilotMegaImages/ac2fgprotocol.jpg

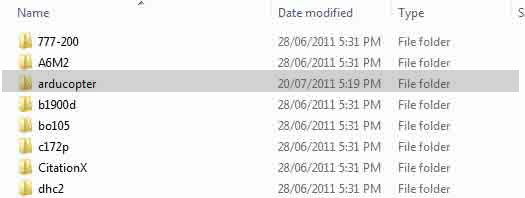

  1. Copy the whole ‘arducopter’ folder from

C:Program Files (x86)Mission Planneraircraft

to your FlightGear Aircraft directory eg

C:Program Files (x86)FlightGearAircraft

../_images/ac2fgmodel.jpg
  1. Start the Mission Planner
  2. Connect as usual

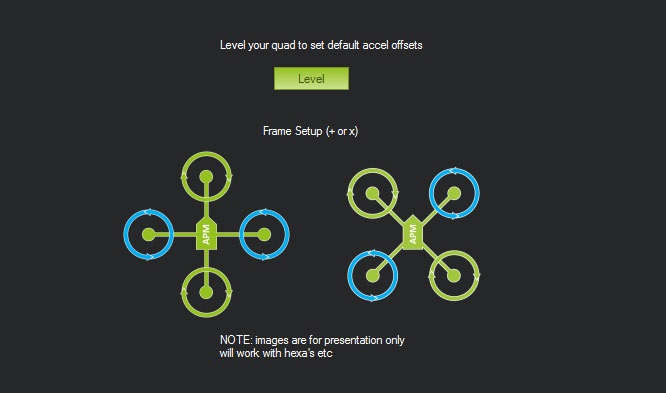

  3. Setup the radio/modes as required. Setup frame to +.
../_images/ac2setup.jpg

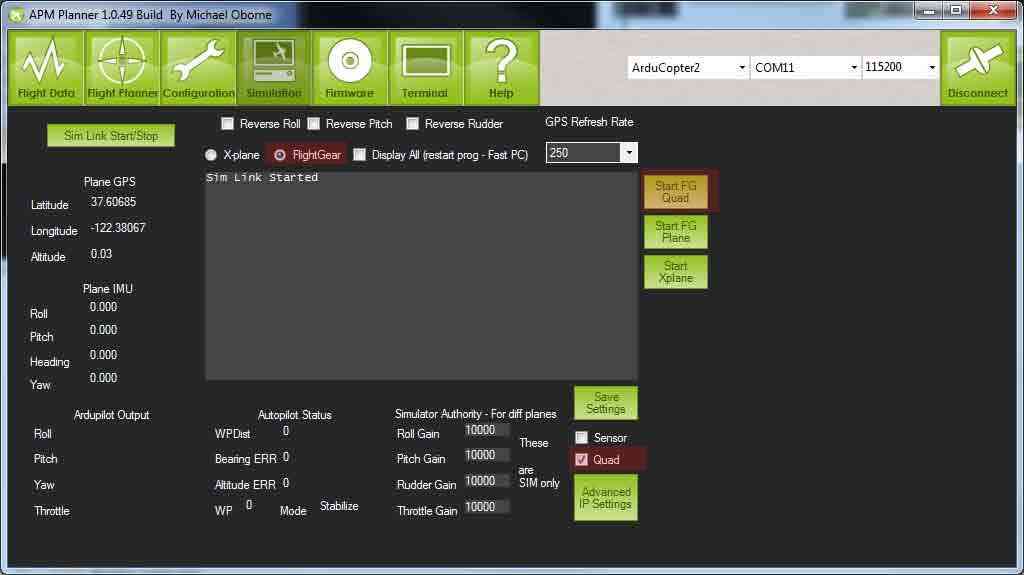

  1. Goto simulation.
  2. Check Quad, and FlightGear.
../_images/ac2simulator.jpg
  1. Click start fg quad and wait for FlightGear to start.
  2. Click start sim link.

For those that want to start FlightGear themselves

This is the bat file used to start FlightGear

"C:Program Files (x86)FlightGear v20110705binWin32fgfs" ^
  "--fg-root=C:Program Files (x86)FlightGear v20110705data" ^
     "--geometry=400x300"  ^
     "--aircraft=arducopter" ^
     "--native-fdm=socket,out,50,127.0.0.1,49005,udp" ^
     "--generic=socket,in,50,127.0.0.1,49000,udp,quadhil" ^
     "--fdm=external" ^
     "--prop:/logging/log/filename=fg_record.csv" ^
     "--log-level=info" ^
     "--roll=0"  ^
     "--pitch=0"  ^
     "--wind=0@0"  ^
     "--turbulence=0.0"  ^
     "--prop:/sim/frame-rate-throttle-hz=30"  ^
     "--timeofday=noon"  ^
     "--shading-flat"  ^
     "--fog-disable"  ^
     "--disable-specular-highlight"  ^
     "--disable-skyblend"  ^
     "--disable-random-objects"  ^
     "--disable-panel"  ^
     "--disable-horizon-effect"  ^
     "--disable-clouds"  ^
     "--disable-anti-alias-hud"
