Advanced MultiCopter Design

This section is topics related to advanced multicopter construction and design.

Note

• For information on understanding how a multicopter works please go Here
• For information on how to build your own simple Quadcopter using kits or frames go Here
• For information on building or setting up a copter for first Person View (FPV) go Here

There are several popular frame layouts for MultiCopters

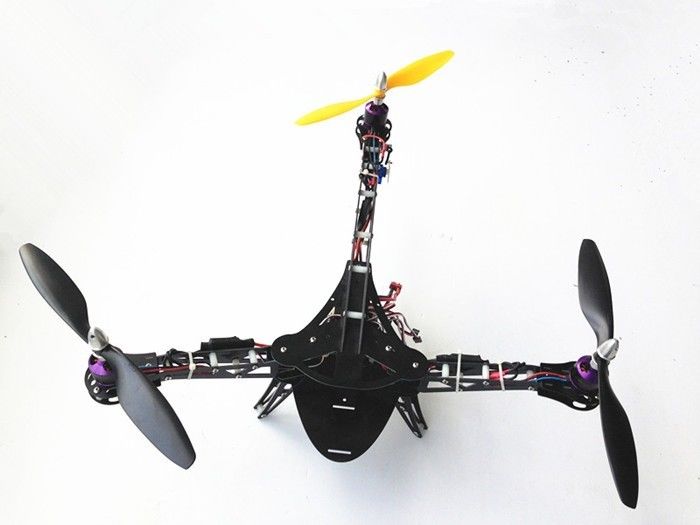

• The Tricopter uses 3 motor / propeller propulsion units with a servo to rotate one of them to compensate for adverse yaw.
  • Tricopters were popular early on when the brushless motor / propeller units were new and scarce.
  • They suffer from less than stellar performance and do not scale well to larger sizes.
  • But they still have some popularity for small, light hobby use applications.
  • Because this is primarily an outdated design we will not expand further on it in this article.

• The very popular Quadcopter has 4 motor/propeller units and is available in any size.

  • A Quadcopter is an elegantly simple design and is hands down the most popular layout for a whole lot of reasons.

  • Quadcopters are symmetrical and embody the simplest principle of operation for controlling roll, pitch, yaw and motion.

  • Simply varying the speed of each of the motors provides full 3D motion and rotation and hover capability.

  • They are relatively inexpensive to produce and they scale well to production manufacturing techniques.

  • In various sizes and layouts they are capable of actually performing useful tasks beyond simply flying around.

  • Their primary drawback is that a single motor failure generally results in an abrupt descent to the ground (crash).

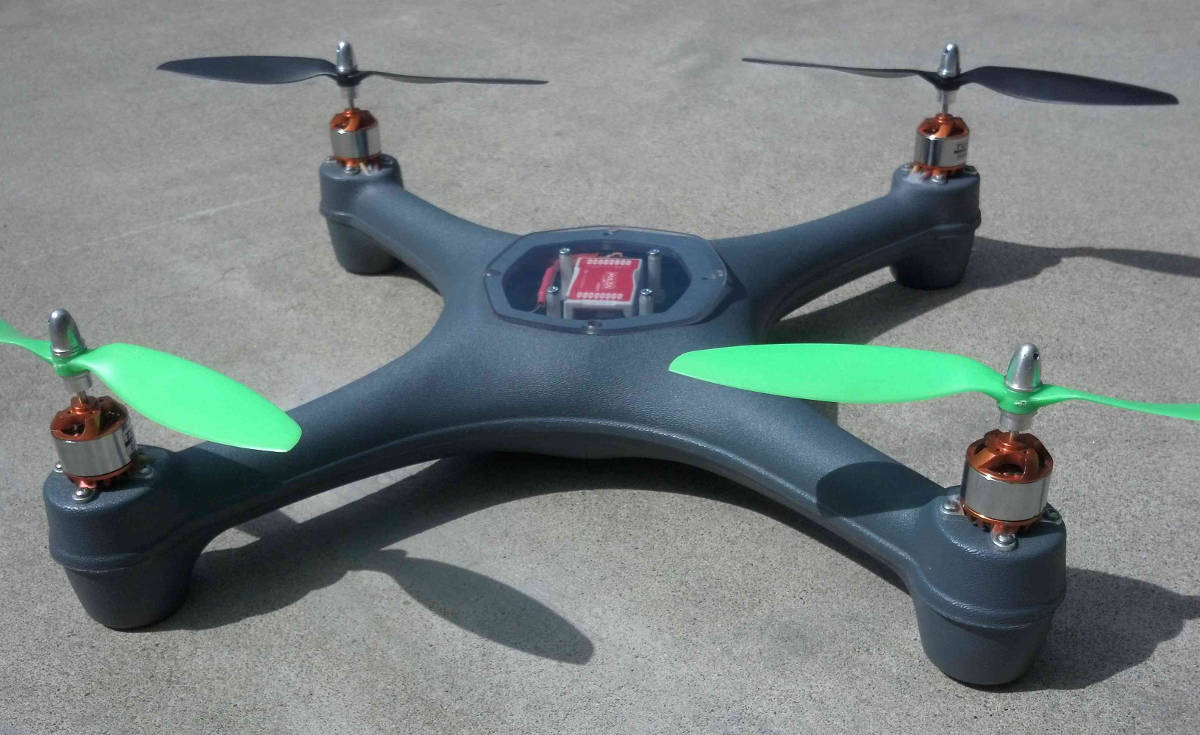

  • A very wide variety of materials and techniques can be employed to produce a useful Quadcopter.

  • There are several popular configurations for QuadCopters:

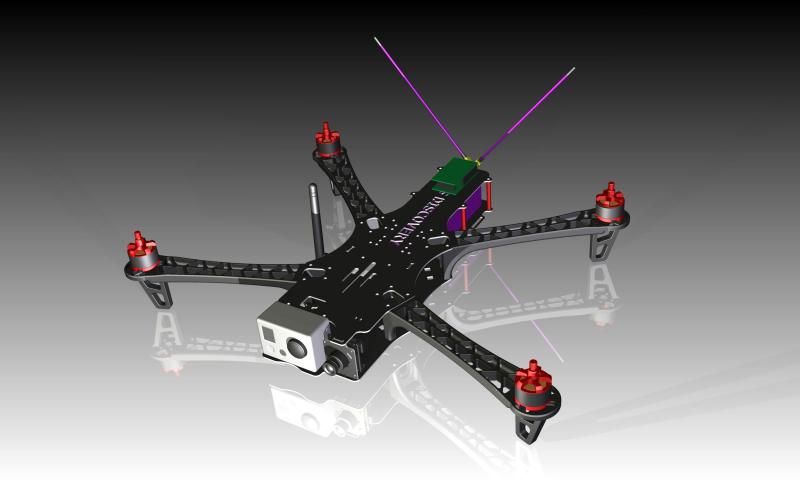

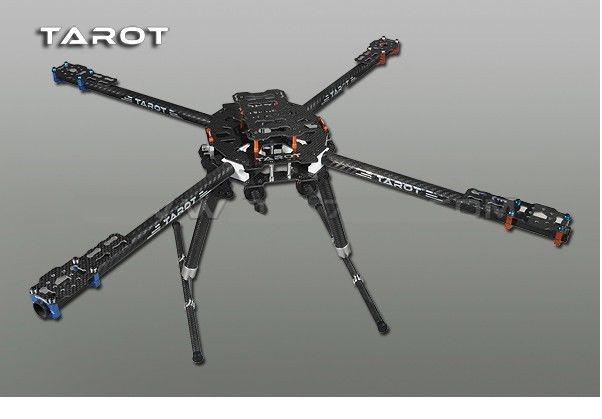

    • X with and X frame arm layout and the front and back of the copter between 2 propellers.
    • and with the same kind of X frame layout as above but with the front and back of the copter in line with one of the propellers.
    • “Dead Cat” a variation on X which in which the frame arms are further apart in the front and the back than they are side to side.
      • Name actually comes from Bart Jansen a Dutch artist who stuffed his expired cat and made a Quadcopter out of it.

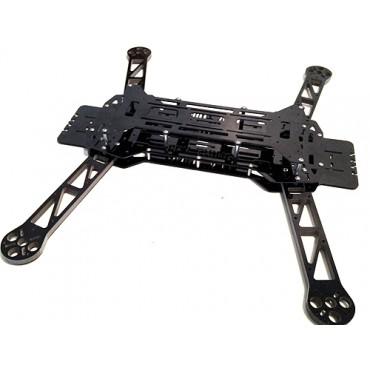

    • H which has frame side arms running between the motors on each side and connected with one or more frame arms in the middle.
    • Square which has frame arms connecting between motors (and usually intermediate frame arms supporting a central frame.)
    • And variations including ones with the motors laid out on a circle.
    • Most of them primarily operate the same as the X frame (provides better camera exposure between motors among other things).

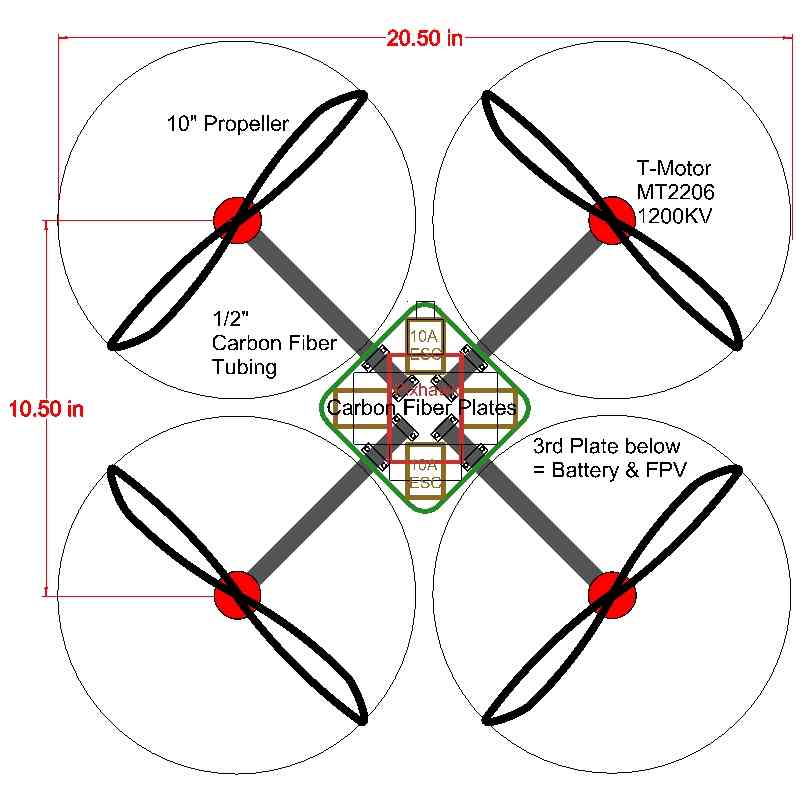

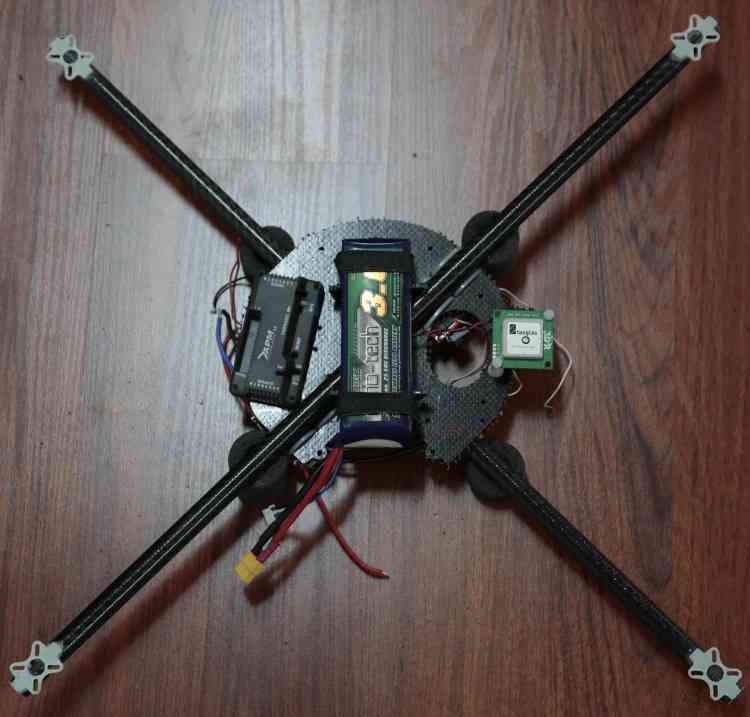

    • I recommend the standard X frame design because it is strong and simple and it’s natural symmetry balances flying forces better.

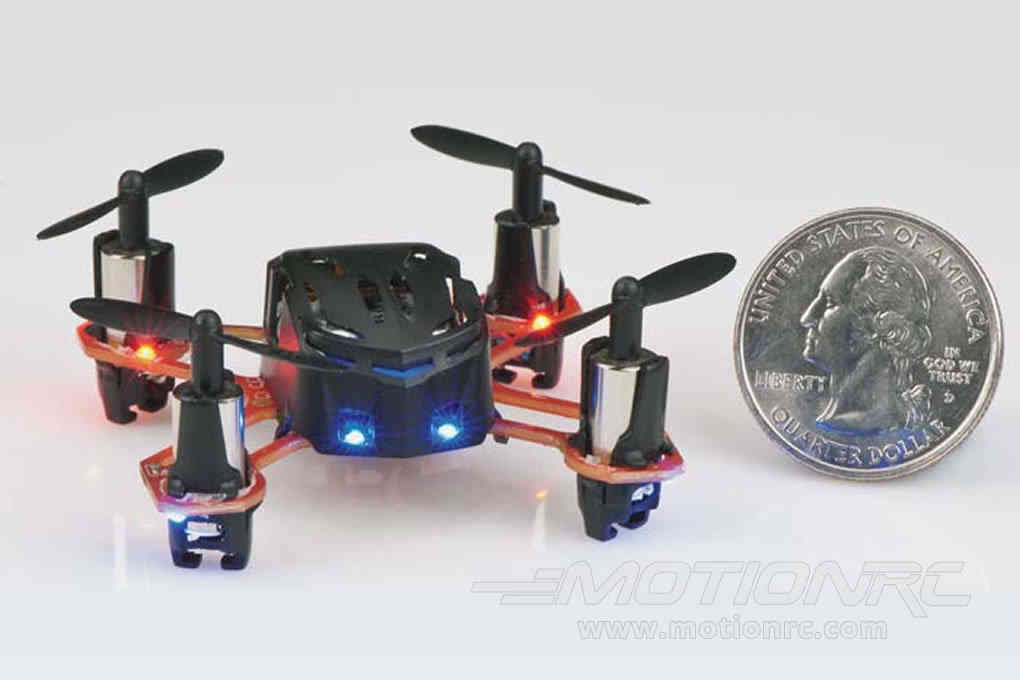

  • A humming bird sized Estes Proto X is shown below.

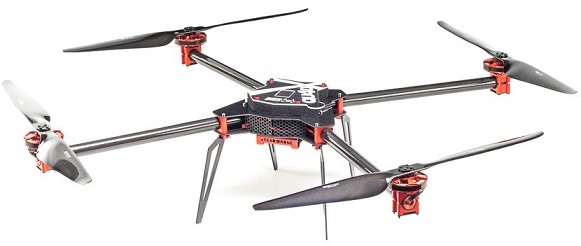

• A fifteen thousand dollar SteadyDrone Q4D-X Quadcopter with 28” propellers, 8KG lifting capability and claimed 60 minute flight times.

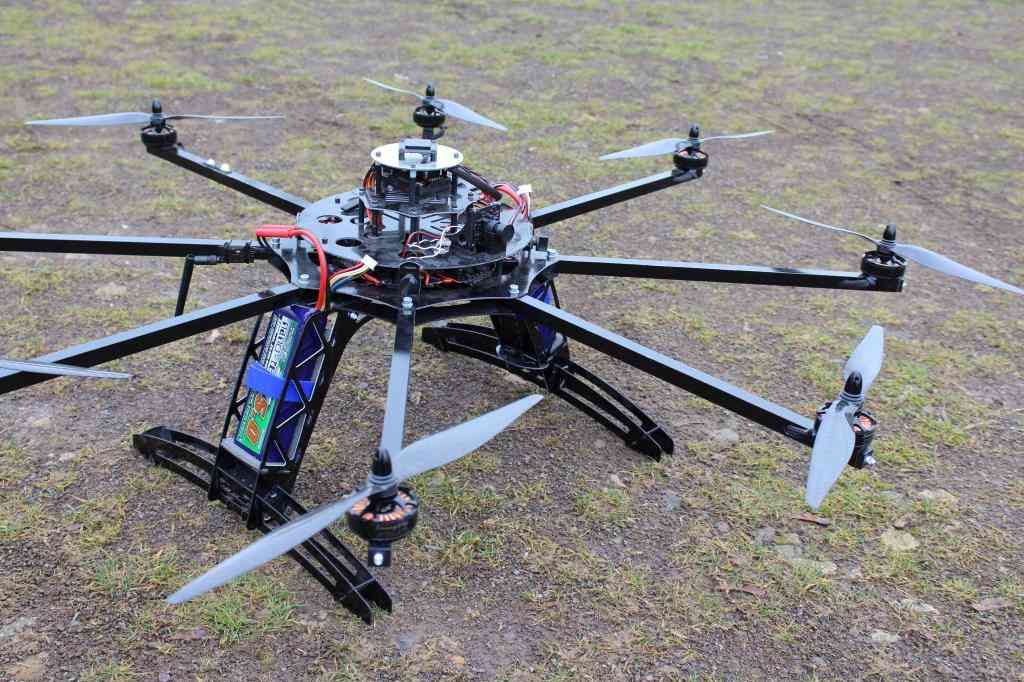

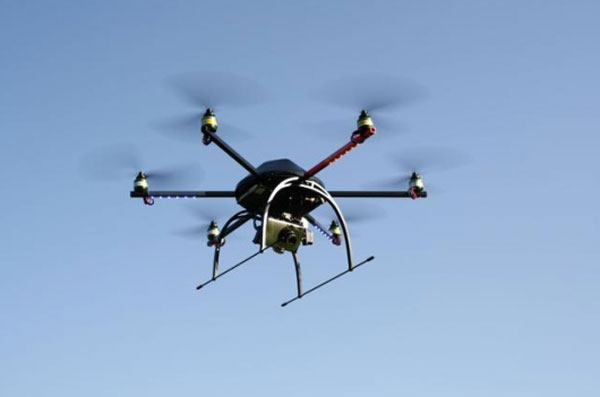

• For professional use, HexaCopters and OctoCopters with 6 and 8 Motor/propeller propulsion units are popular.

  • Hexacopters, Octocopters, Hex Y’s and Octo X’s can provide stable heavy lift platforms good for photography and other uses.
  • Hex and Octocopters may have the benefit of potentially being able to continue to fly with a single motor failure.
  • However the increased complexity versus a Quadcopter makes them more failure prone.
  • The reduction in prop size and increase in prop speed result in a smoother flight than an equivalent large blade Quadcopter.
  • However it also results in some reduction in flight efficiency and endurance all other things being equal.

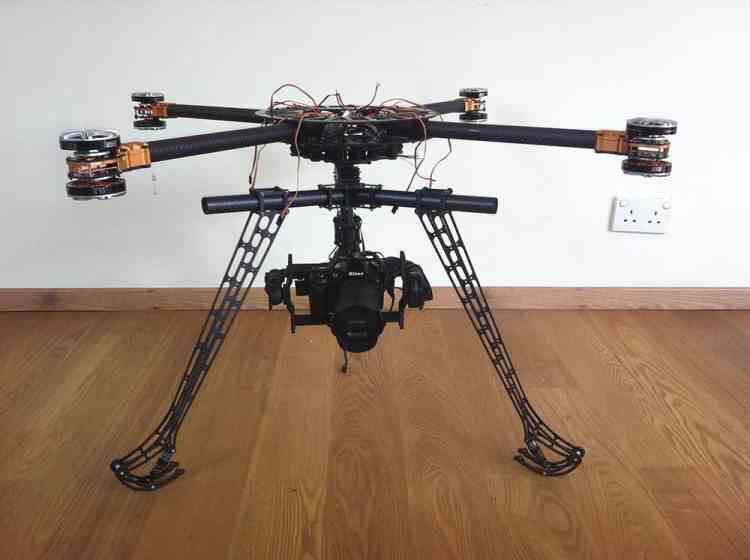

• Hex Y6 and Octo X8 designs with pairs of coaxial motor/propeller units mounted back to back are also becoming popular.

• Singlecopters and Coax copters are very new designs and have some advantages in specific applications.

  • Since they tend to a single ducted body for either the one or two motor/propeller units they tend to be self protected indoors.
  • The coax copter which relies on variable thrust on each of it’s 2 props for rotation is functionally simpler than the single copter.
  • The side profile of the ducted body makes these copters more susceptible to winds outdoors requiring more effort to compensate.
  • While generally good at hovering and fine positioning, they are more speed and performance limited than other multicopter designs.
  • The Singlecopter in particular is reasonably adaptable to gasoline engines for much greater endurance.
  • The possibility of using a single large propeller implies that good efficiencies could be realized even with an electric versions.
  • The Singlecopter features a single motor/propeller unit with 4 servo controlled vanes to direct roll, pitch and yaw.

• The Coaxcopter has dual motor/propeller units for thrust and yaw control and 2 servo controlled vanes for roll and pitch.

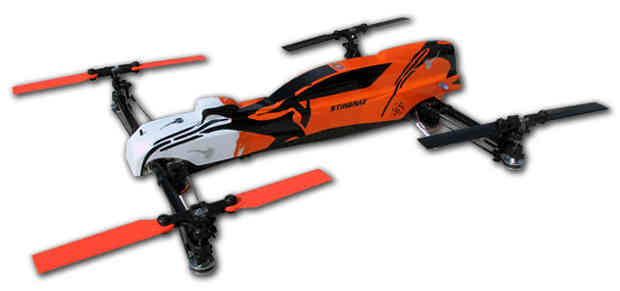

• There are also variable pitch Multicopters for incredible acrobatic performance.
  • Variable pitch multicopters have some interesting potential uses as well like the Curtis Youngblood Stingray 500 shown below.
  • Servo control of the props (rotors) produces roll, pitch and yaw so they are often powered by a single motor with shaft or belt drive.
  • If you use a single motor it is feasible to use a gasoline engine giving you the potential for considerable endurance and range.
  • These are very high performance and can even fly inverted, they are also mechanically more complex but can be built robustly.

• And copters with more than 8 motor/propeller units may be useful for specialized, extreme (or insane) applications.

Motors, propellers and ESCs

For multicopters, motors, propellers and ESCs (speed controllers) are critical and have been failure prone in the past.

This ECalc based Xcopter: motor - propeller - battery - ESC calculator will help you pick the best components for your copter.

• Quadcopter design will be used for illustration as they are the most wide spread and the most versatile.
  • But the information applies equally to Hex and Octo designs, either conventional or coaxial Y and X types.
• The brushless out-runner motors have to support the full weight of the copter continuously while turning at high speed.
  • Hobby grade motors have often used inadequate Conrad type unsealed bearings which are good axially but not in thrust.
    • And the motors are usually open frame to permit the greatest cooling but providing little or no protection
    • This has meant an unnecessarily high failure rate and very poor survival in wet or dusty conditions.
    • The cheapest possible Chinese motor is never a good choice for something that literally hangs in the air by it’s motor.
  • Some of the best motors have 2 or better 3 easily replaceable ABEC-7 bearings, RCTiger-Motor Pro series and KDE for instance.
    • The best motors are well ventilated, made with high temperature components and coated and sealed for environmental protection.
    • The best motors like TMotor and KDE have performance comparison charts, these should be reviewed when designing a copter
    • You are best off selecting motor - prop - battery cell combinations that will provide 10% or higher G/W efficiency at 50% throttle.
    • You should also target you copter design weight so that it hovers at approximately 50% throttle for optimum efficiency and flight time.
    • Top motors can cost considerably more, but reliability, performance and efficiency can be much better and worth it in the long run.
    • Low KV motors running on lower voltage (fewer cells) with large propellers are the most efficient and provide the longest flight times.
  • Selecting the best motor, propeller, battery set will enable you to build a copter with a usable 30 minute flight time including a camera.
    • You can get 30 minutes from 330 copters with 8” props to 700 size copters with 18” props depending on camera / gimbal weight.
    • It is very hard to get much more than 30 minutes of usable flight time from any “useful” multicopter regardless of size.
    • For hobby grade components, 20 minute maximum flight times would be a more realistic goal.
• ESCs are also very important.
  • High quality ESCs are more reliable than cheap ones.
  • And ESCs need to be properly sized to ensure they can provide the maximum current that is necessary.
    • Generally use the right size not over sized because they are more efficient if operated in the appropriate range (and lighter).
  • Sufficient cooling is also very important especially for “Heavy Lift” copters, and the ESCs may need to be placed in the air stream.

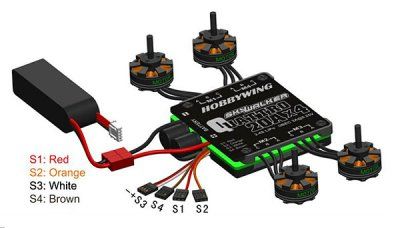

  • For small to medium QuadCopters there are four in one ESCs in the 20 - 30 Amp size range with several advantages.
    • They eliminate the need for a power distribution plate or block and all the attendant wiring.
    • The considerable reduction in DC wiring results in less DC EMF radiation interference with the compass.
    • They can often be conveniently installed tidily in the center of the copter frame.
    • The 20 and 25 amp ones work with 3 or 4 cell LiPo batteries and the 30 amp one works with 3 to 6 cell batteries.
    • They have a built in aluminum heat sink plate on one side (which you can augment with a finned heat sink if necessary).
    • You can use a thin layer of Fujik silicone thermal glue to attach a finned heat sink if one is needed.
    • They generally have higher reliability than individual ESCs and are reasonably priced.
• Larger diameter slower turning propellers are normally a lot more efficient than smaller, faster ones.
  • But there are limits and drawbacks:
    • Trying to turn too large a prop for a given motor can cause it to overheat so motors usually have a maximum prop size.
    • Also, really large, slow props can reduce the responsiveness of the multicopter and even cause it to oscillate in the air or vibrate.
    • Unless taken to extremes these difficulties are not usually significant and can be compensated for by various means.
    • And you can always drop the diameter an inch if the handling characteristics or motor stress are not what you want.
  • There are also different designs of propellers and for larger ones turning at slower speeds design is especially critical.
    • Carbon fiber designs with cupped blades that are wider at the hub and narrower at the tip are best for larger sizes 14” and over.
    • Smaller ones in the 14” and under category can be of more conventional design with a wider than normal blade and of plastic or CF.
    • Often motors are “charted” with specific propellers and these are certainly the best starting point for optimum performance.
    • TMotor is considered a premium prop, but good results have been obtained with RC-Timer and Tarot in the large tapered props.
    • APC, DJI, GemFan, RC Drones and Graupner all produce good props in the 14” and under category.

Professional Grade Power System for large Quadcopters (28” Propellers)

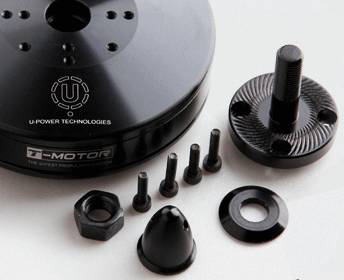

• The Tigermotor U8 Pro Series motor is currently top of the line for a commercially available (large) copter motor.

  • It features Environmentally protected, closed construction and

    easily replaceable bearings.

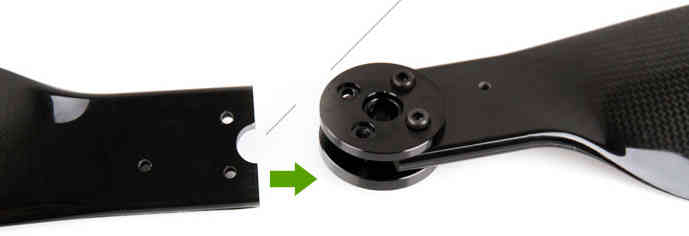

• They have very high quality two piece 27, 28 and 29” carbon fiber propellers for them as well

• And a top quality 70 AMP ESC (speed controller) to go with it.

• U8 Pro T-Motor $300.00, 28” CF Props $370.00 a pair, 70 Amp Pro ESC $110.00 @ four each = $2380.00.
• These are used in the large Steadidrone Quadcopter shown above, clearly a top quality professional and expensive product.
• This is a very heavy lift and long endurance copter and is completely excessive and hazardous for most uses and needs.
• This combination will work well for a Quadcopter with a total weight of up to 24 pounds and can achieve 40 minute flight times.
• This is a copter designed for very serious uses that demand it’s heavy lift and long endurance capabilities and is not for amateurs.
• Disaster relief, search and rescue, fire spotting, surveillance, ecological and geographical survey and mapping are appropriate uses.

Professional Grade Power System for Medium Quadcopters (16” Propellers)

• Clearly, applying similar quality to a more reasonably sized (and cost) copter is normally going to be a lot more practical.

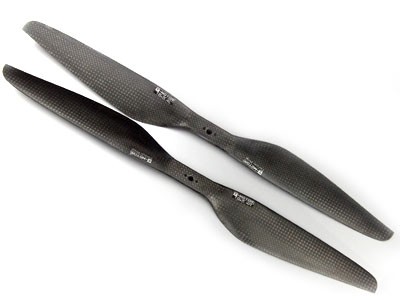

  • A 380KV T-Motor 4008 is $85.00, 16x5 CF Prop $90.00 a pair and 30 Amp Pro ESC $50.00 @ four each = $720.00.
  • This setup will work well for a copter up to 10 pounds or so and provide exceptional durability, efficiency and endurance.
  • This is a very practical setup for a professional Quadcopter for photo or video use with full sized cameras and a brushless gimbal.
  • It can be set up to let you choose 4S 14.8 volt, 5S 18.8 volt or 6S 22.2 volt batteries and 14” to 17” props according to your total weight.
  • With a proper setup you could reasonably expect to achieve practical 30 minute plus flight times with full camera equipment.

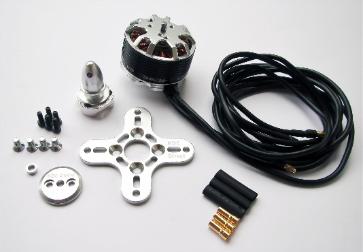

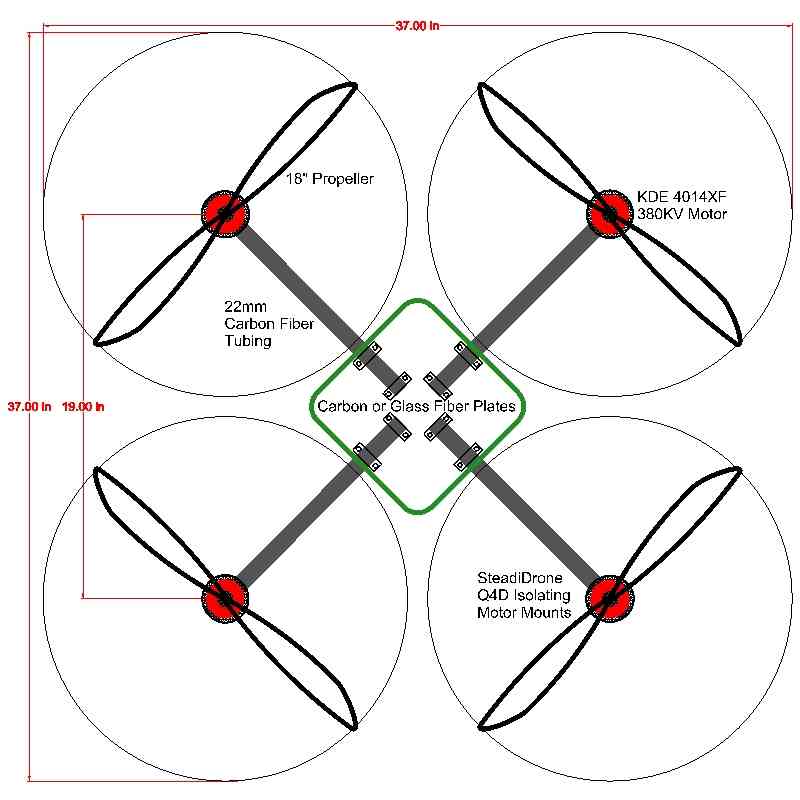

• This is a very superior ($120.00) KDE 4014XF-380KV Motor with 3 large replaceable ABEC bearings rated at about 200 hours.
  • This motor is capable of using 13” to 18” propellers and operating very efficiently with a wide range of batteries from 3 cell to 6 cell.
  • This KDE Motor has a phenomenal range of operation and can be used on a 7 pound to a 20 pound Quadcopter.
  • Every component and manufacturing technique was clearly optimized to produce the best possible motor without compromise.
  • This motor has a finned heat-sink case and a self ventilated design with high temperature encapsulated components.
  • In fact it is designed to run, if necessary, continuously at temperatures that would instantly destroy most other motors.
  • It is reasonable to expect that various configurations could provide well over an hour of useful operating time with cameras.
  • It is feasible to produce a QuadCopter that will approach the performance of the $15,000.00 Steadidrone at a fraction of the cost.
  • A similar practical lifting capability and nearly 40 minute useful flight times should be achievable even with 18” Propellers.
  • And given the extreme over design and ruggedness of the motors, similar reliability and longevity could also be expected.
  • This is the motor I will be using in my next Quadcopter and I will allow for up to 18” propellers.

A Hyper Efficient Medium Small Professional Grade Motor For Long Endurance

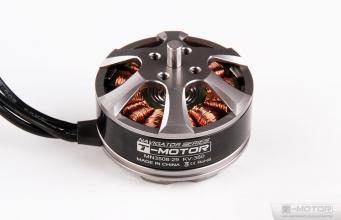

• The $70.00 T-Motor MN3508 380KV Navigator series motor is ideal for long flight time applications.
• This is the only motor in this size that can get G/W efficiencies over 17 at 50 percent throttle.
• If you want to build a 4-8 pound copter for maximum endurance this is the motor to use with a 4 cell LiPo.
• Because of it’s extremely high efficiency in it’s hover range it is also a candidate for high efficiency lithium batteries.
• Panasonic or LG’s high power Lithium batteries have about twice the energy density of the LiPos we normally use.
• But maximum discharge is only 2C so low current draw is required, the high efficiency of these motors can provide that.
• Carbon fiber 14” to 16” propellers will be required.

Professional Grade Power System for Small Quadcopters (10” - 14” Propellers)

• The largest market segment is for Quadcopters in frame sizes that use 10 to 14 inch propellers and weigh 3 to 7 pounds.

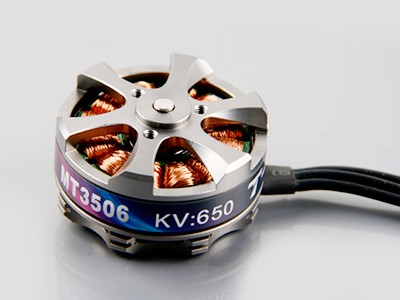

  • The 650 KV T-Motor MT3506 at $65.00 is a high quality small but powerful pancake that can turn props from 11” to 14” diameter.

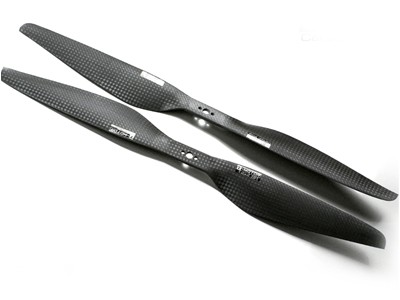

  • With a 3 cell LiPo battery and T-Motor 14” prop at $73.00 a pair it can lift up to 7 pounds and achieve very good endurance.

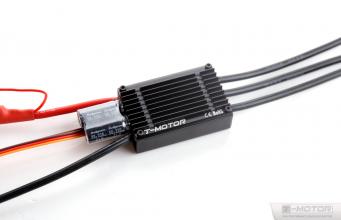

  • Add 4 T-Motor 18 Amp ESCs at $27.00 @ four each = $514.00 for top quality motors, props and ESCs.
  • This small pancake motor can achieve good efficiency with 3S 11.1 volt or 4S 14.8 volt LiPo batteries and an appropriate sized prop.
  • The frame should be sized to accept up to 14” propellers and various battery configurations.
  • It should be configurable to achieve 20+ minute flight times with a GoPro size camera and brushless gimbal plus FPV or telemetry.
  • This would still be a very capable and rugged Quadcopter capable of professional results and reliability.

• The above Motor / Propeller / ESC setups are all as close to professional quality as we can currently make them.

Consumer Grade Power System for Medium Quadcopters (15” - 16” Propellers)

• It is also possible to build a reasonably reliable and efficient Quadcopter using less expensive components.

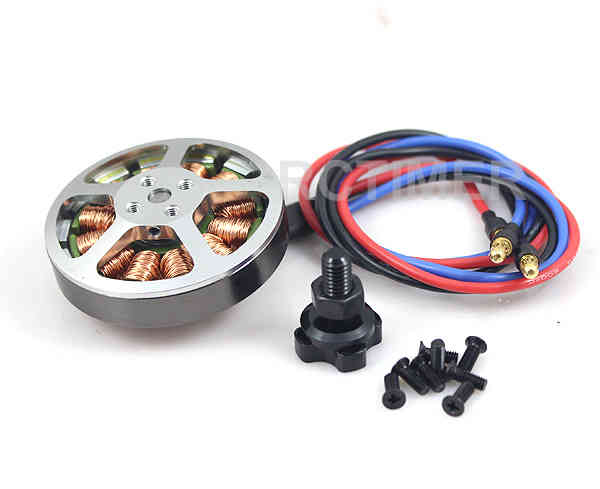

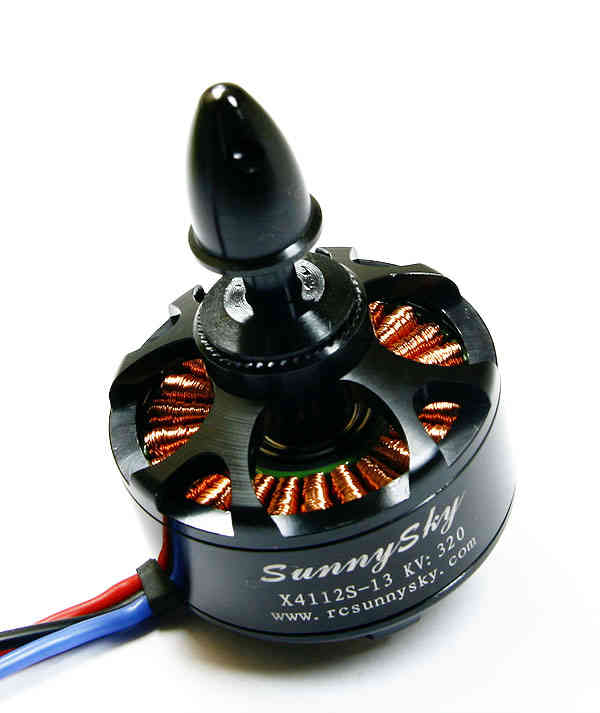

  • The $45.00 SunnySky 390KV X4112S motor or the really low cost $18.00 RCTimer 5010-14 360KV motors.
  • Which will work well with an easy to install and low EMF $40.00 Hobbywing four in one ESC.

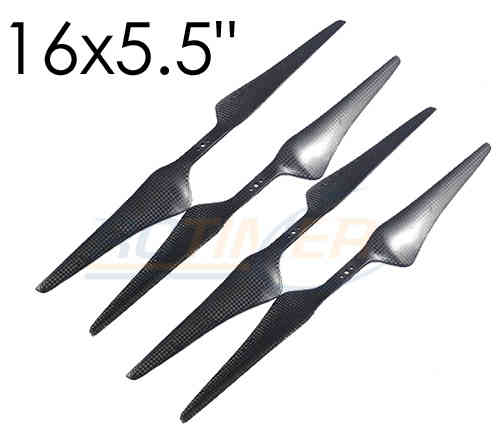

• And they both work well with RCTimer 15x5.5” (4 for $28.00) or 16x5.5” (4 for $35.00) CF propellers.

• The Sunnysky Combo will cost about $260.00 and work very efficiently for copters up to about ten pounds.
• The RCTimer Combo will cost about $150.00 and will provide extended flight time for copters up to about 6 pounds.
• These motors will both actually support up to 17” propellers and work with 3 to 6 cell LiPo batteries.
• You could still design a copter that would get 30 minute flight times while carrying a GoPro and gimbal if desired.
• The frame for either of these motors should be designed to support at least 16” prop diameter and 17” would be better.
• These will not last as long nor be as reliable as the previous T-Motor configurations but will still deliver lots of solid use.

Consumer Grade Power System for Small Quadcopters (8” - 12” Propellers)

• Here is a durable and low cost alternative for powering smaller hobby or even semi-pro sub 5 pound Quadcopters.

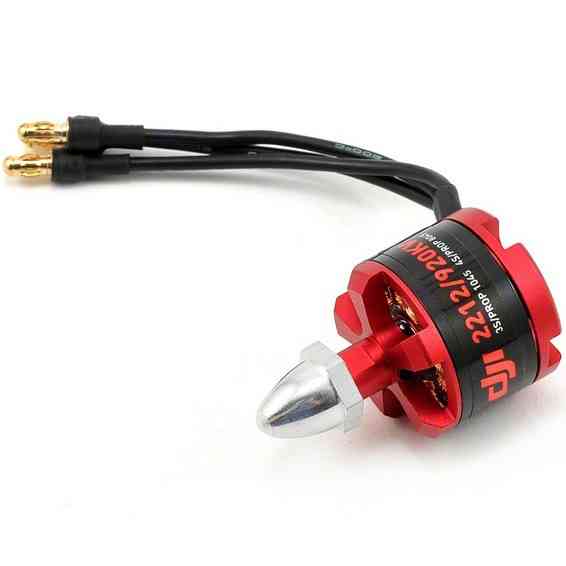

  • The DJI 2212 Motors provided with their low cost ARF Flamewheel Quadcopters are unusually durable and cost $24.00 each.

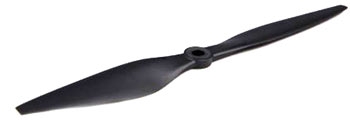

  • And DJI’s specially hubbed 10” plastic props at $8.00 a pair are well balanced, efficient and rugged.



• And this easy to use $40.00 four in one ESC eliminates a power distribution board, reduces EMF and provides good reliability.



• For $150.00 you can actually get quite a useful and durable power system for a smaller sub five pound quadcopter.

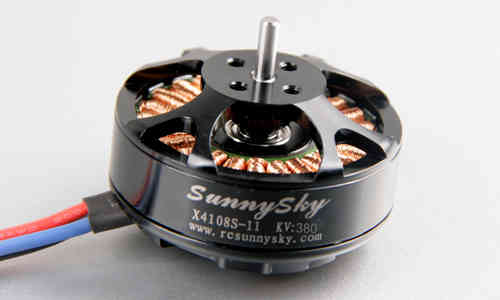

The $40.00 SunnySky X4108S pancake motor is also capable of being used on Quadcopters lifting up to 10 pounds.

• It is well regarded, efficient and durable and is suitable for use with 14” or 15” propellers and 4 cell to 6 cell LiPo batteries.

• Clearly these are not the only alternatives.
  • If you want to use your copter for constant, professional use you will want something like the first 3 configurations.
  • For occasional, hobby or non-critical use for flying, FPV and / or personal video or photography the others should be OK.
  • The KDE and Pro T-Motors bearings will last longer and are more weather proof and reliable than the less expensive alternatives.
  • And the more expensive Carbon Fiber props are more efficient, better balanced and more durable than cheaper alternatives.
  • But properly installed on an appropriate copter the less expensive alternatives listed can provide many reliable hours of flying.
  • I have favored slow speed pancake motors because efficiency and flight time benefit from the larger propellers they can use.
• The above illustrates just some of the possibilities in identifying an appropriate power system for your project.

The MultiCopter Frame

There are many types of frames and it is most important to put together a frame that is appropriate for your use.

• There are a lot of Multicopter frame types and many are available as bare frame kits or Almost Ready To Fly or Ready To Fly copters.
  • Most professional grade Multicopters are made from fiberglass and carbon fiber cut tubing and plate.
    • Carbon fiber is very strong, but is also brittle and can shatter on impact, it is also hard to machine and to glue to.
    • Fiberglass weighs a bit more for equivalent strength but is more shatter resistant and easier to machine and glue to.
    • Fiberglass or carbon fiber tube and sheet construction are very suitable to use for making your own copters.
  • Many consumer grade Multicopters are made with injection molded plastic parts and aluminum tubing.
    • Some injection molded parts can be very durable (the Iris’s Zytel frame arms for instance), but others are cheap and break easily.
    • Square aluminum tubing frame arms are common, but they tend to bend or break with annoying frequency in normal mishaps.
    • Except in specialized welded H or box frames aluminum tubing frame arms are sub optimal and will not be covered in depth here.
  • Some of the newer, smaller, commercially made Quadcopters have monolithic injection molded plastic shells.
    • On smaller copters these shells can be quite durable but they would be too fragile on larger ones even if mold costs were justified.
  • A few Quadcopters have monolithic shells made from vacuum formed laminated Kydex or other plastic sheet
    • Vacuum formed shells of laminated Kydex have proven very durable on small copters and are very good for waterproof uses.
    • At least one vacuum formed copter has been made with built in blade guards the Safe Flight 4410 (unfortunately out of business).
  • Hand laid fiberglass or carbon fiber is also popular on high end quadcopters.
    • There are some very attractive, hard to get and not inexpensive hand laid fiberglass and carbon fiber shells made by “DeX”.
    • There are also a variety of fiberglass shells for civilian, commercial and military use including an amphibious one.
    • Fiberglass shells tend to be expensive and may get damaged in use and can be difficult to repair.
  • Each type of construction has advantages and disadvantages and it is very important to figure out what is important for your needs.
  • Prop to prop and prop to frame clearance limit the max diameter of your propeller blades.
    • Allowing for various prop diameters will let you tune the copter for its current weight, batteries and function..
    • Generally allow an additional half inch of clearance from prop tip to tip or to center frame to avoid asymmetrical prop wash vibration.
    • A major design criteria is to size the frame appropriately for the largest propellers you might ever want to use.
    • Generally bigger propeller diameter equals better efficiency and an X frame layout normally permits the largest possible props.
    • Of course the motor speed and power and frame strength have to be matched to the propeller diameter and to total lifting capacity.
    • Pancake Low KV, Low RPM motors can turn bigger propellers efficiently.
    • It is possible to overlap prop tips if you have one above the other, but it does affect efficiency and induces asymmetric vibration.
    • Big slow props can have adverse vibration, instability, gust compensation and response rate issues also so that is a downside.
  • The additional motors of Hex and Octocopters can permit single motor out recovery and provide for smoother flight for photo uses.
    • But they need to use smaller propellers because of motor to motor clearance which is less efficient resulting in shorter flight times.
    • There is also additional cost and weight of the frames and extra motors and propellers.
    • And, the overall increase in complexity also reduces reliability.
    • High quality extended service larger pancake motors and props are just starting to become available.
    • So we are likely to see a shift to large Quadcopters from Hexacopters and Octocopters even for professional and commercial uses.

The Carbon Fiber or Fiberglass Tube and Plate Frame

The carbon fiber or fiberglass tube and plate frame is popular because it is strong and light and easily manufactured.

• The Tarot 650 is a typical layout medium sized carbon fiber Quadcopter frame that can work with up to 17” propellers.
  • It features folding arms and landing gear.
  • It’s ability to support pancake motors and 17” props means it can provide long flight times.
  • Some people have said the quality of construction is not as good as it could be but for $125.00 it is an amazing bargain.

• Fabrication requirements and techniques for fiberglass and carbon fiber tube and plate copters.
• On the copters shown above the method of attachment is by clamping carbon fiber tube frame arms with aluminum brackets.
  • This is because of the difficulties in attaching carbon fiber parts as well as the stress that can result from drilling the tubing.
  • Fiberglass is not quite as strong or light as carbon fiber but it is more flexible and easier to join and machine.
• If what you need is available in a commercial frame kit you are normally better off buying it as you will spend more making your own.
  • It will also take a lot of time and effort to design the copter, to obtain the components and to, cut, drill, machine and fabricate them.
  • There is also a strong possibility that design and fabrication mistakes and misperceptions will require that some things get redone.
• If you have sufficient reason to make your own frame, tube and plate construction is generally the most practical for home production.
• It is reasonable to mix materials, commonly carbon fiber frame tubes and fiberglass central and motor mounting plates.
  • Carbon fiber and fiberglass tubing and plate can be cut with a hacksaw or power jig or band saw (with metal or fiberglass blades).
    • It can also be drilled and milled with HSS or TC coated drills and mills, but all tooling wears out very quickly cutting these materials.
  • Carbon fiber in particular is tricky to cut, drill and machine, it can tear, shatter or de-laminate if not done smoothly and slowly.
    • A drill press is mandatory for carbon fiber, you cant center punch a pilot drill hole, so it needs to be held precisely in place.
    • Avoid milling of carbon fiber if at all possible, it is very difficult to accomplish satisfactory results.
    • You will see carbon fiber plates that have milled slots on consumer copters but these have generally been cut with a water jet.
    • With carbon fiber you will generally get better results drilling precision placed holes rather than attempting to mill slots in it.
    • You can carefully and slowly cut a carbon fiber plates exterior edges with a power saw and smooth them with a Dremel tool.
    • If you must put in slots consider drilling a hole at each end and using a small circular saw on a Dremel or flex shaft to connect them.
• It will be necessary to provide appropriate brackets to clamp the motor mounts and central hub to the frame arm tubes.
  • Tubing needs to be clamped but must not be “crushed”, silicone or rubber gasket can provide protection and vibration isolation.
  • Hardware should be aluminum or stainless steel machine screws and you can use Nylok nuts or “Blue” Loctite on regular nuts.
  • Plate separation and mounting can be provided with Nylon or aluminum standoffs.
  • (Note: It would be really nice if somebody made an X internal slip-glue fit ferrule for the center of the frame tubes but they don’t - yet!)
• There are a wide variety of Carbon fiber and epoxy fiberglass components to choose from.
  • Carbon fiber products are available from RockWest Composites and Carbon Fiber Tube Shopand Dragon Plate
  • A really good article on cutting and gluing carbon fiber products from Carbon Fiber Tube Shop
  • Fiberglass and Carbon Fiber products are available from: CST Sales and ACP Sales
  • A datasheet for 3M 2216 Epoxy Glue and a source for it Amazon
  • A datasheet for Loctite 9430 Glue and a source for Loctite 9340 Amazon

Using manufactured Plastic and Fiberglass Components in Your Own Frames.

• Although often not reasonable to make yourself some parts can be used effectively in your own designs.
• There are retrofit kits like the Team Blacksheep FPV subframe for a DJI Flamewheel quadcopter that reuse it’s plastic frame arms.
• And there are many cases where components from various frames can be used to good effect in our own designs.
• Clearly it is necessary to research your individual design to assure that the component pieces are actually available from the distributors.
• Research can provide an excellent source of very desirable components:

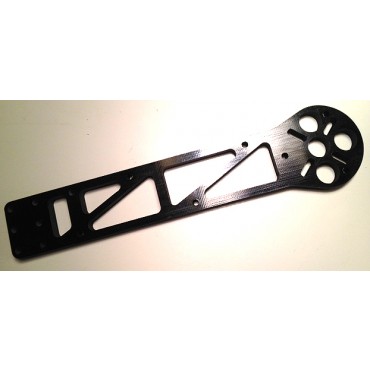

• Or the $14.00 CNC milled ultra tough fiberglass frame arms used in the Hoverthings Quadcopters:

• DJI injection molded frame arms from their Flamewheel copters are used in the TBS Discovery FPV frame.

• Clearly using manufactured parts will require research as to suitability and size for your project as well as actual availability.
  • But if you can accommodate them they can make your project simpler and better.

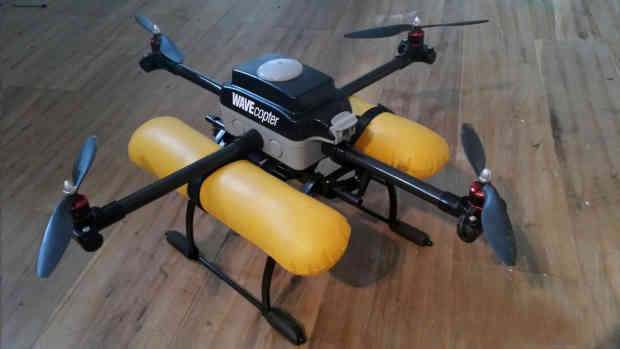

Homemade waterproof frame using a hinged electrical box

An absolutely excellent, very clean, rugged and waterproof design using carbon fiber arms and plastic electrical and plumbing parts.

• Here is a link to Alec Short’s construction article in Makezine
• I really like the use of the central 4 way hub for stabilizing the tubes and the slip fit adjustable tension T’s for motor mounts are also great.
• The mounting of n Pixhawk or APM2.x would really require the separate GPS / compass module in order to work correctly.
• There are a wide variety of latch type weatherproof electrical boxes which could be used for this.
• The main requirement is to get CF tube with an outer diameter appropriate to the plumbing / electrical fittings you want to use.
• I’ll definitely be visiting the electrical and plumbing section the next time I’m in Home Depot.

Vacuum Formed Frames and Components.

• Although this is specialized and requires a vacuum forming “press” it may be justified for some applications.

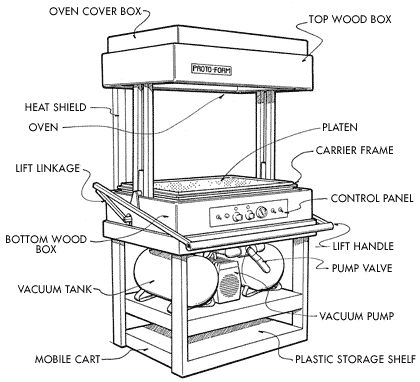

  • A vacuum molding press can be made relatively inexpensively that can make whole small shell type frames or for components.
  • Copters made this way can be made weather tight and even water proof and they can be incredibly tough.
  • Kydex is a laminated plastic sheet that produces a quite strong monocoque shell when molded properly.

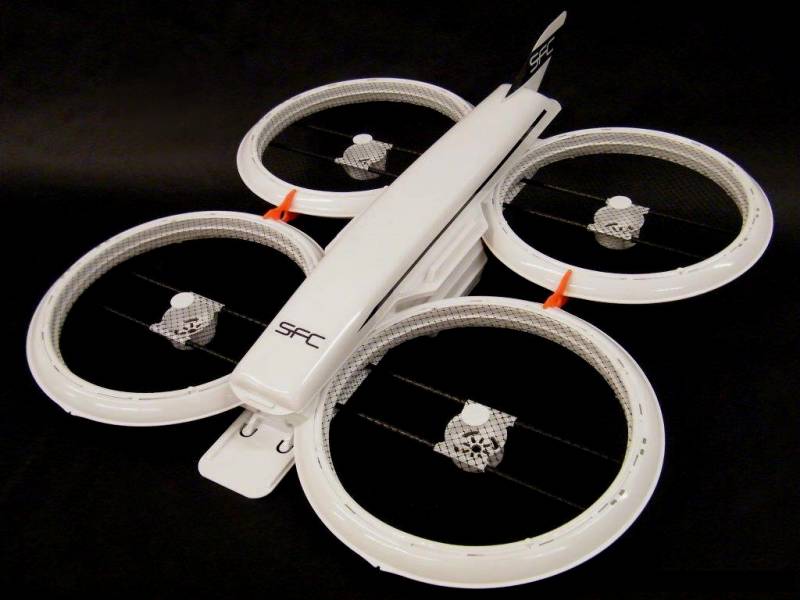

  • The no longer in production Safe Flight Copters SFC4410-1 vacuum formed propeller protected H Quad Frame.

• And the inexpensive ($120.00) and extra tough, water proof Aquacopter frame

• A fully functional vacuum forming system can actually be constructed with a shop vacuum and an electric grill.

• Vacuum forming can also be used to make central shells for copters with tube, plastic or fiber glass frame arms.
• This may be over specialized for most uses, but if you want to make tough, light central frame shells or covers.
• Or, if you want to build multiple small to medium Quadcopters that are tough and waterproof this could be just the ticket.
• (Or you could just buy an Aquacopter frame!!!)

Specific Building Examples and Techinques

• Some design considerations for a medium large, high efficiency, heavy lift Quadcopter build.
  • A simple, rugged and very versatile X Quadcopter with a frame sized large enough to accept 18” diameter propellers might include:
  • High quality 20mm carbon fiber tube frame arms with SteadiDrone motor mounts and central frame tube clamps from EBay or China.
  • Cut and drilled carbon fiber or fiberglass top and bottom central frame plates mounted to the tube clamps and standoffs.
  • A custom or commercial off the shelf landing gear system.
  • An optimal Pro configuration might include the top rated $120.00 KDE 4014XF-380KF motors and a 30 amp 3 - 6 cell four in one ESC.
    • The motors and ESC would cost about $540.00 and you would get a copter tuneable to lift up to 20+ pounds in total weight.
    • It is reasonable to get this configuration to achieve usable 60 minute flight times even with photo or video equipment aboard.
  • A more conservative hobby configuration might include the $40.00 SunnySky X4108S 380KV motors and a 25 amp four in one ESC.
    • The motors and ESC would cost about $200.00 and you would get a copter tuneable to lift up to 10+ pounds in total weight.
    • Even with this setup you could achieve usable flight times in excess of 30 minutes with small to medium consumer size cameras.
• Some additional features that need to be considered are:
  • A third frame plate under the two frame tube sandwiching plates can accommodate the batteries, ESCs and Receiver.
  • A vacuum formed, fabricated or adapted top and bottom shell can weatherproof the copter and increase its resistance to mishaps.
  • This frame is less than 27” from corner to corner, but props can be removed for transport or folding arms could be incorporated.
  • This frame will be very light and strong and it will allow lots of latitude in how it is set up and it will be easy to upgrade.
  • It’s ability to accept larger props even with an inexpensive power system will provide much better than average flight times.
  • The copters capabilities will be according to the power system selected, the battery combination used and the total weight.
  • You can include a camera gimbal under the center plate, make sure the landing gear does not interfere with the cameras view.
  • The landing gear should minimize interference with prop wash and provide strong, resilient and stable support.
  • If you really are determined to build your own frame, this is a really good place to start.

• The above design is a very capable pro-grade Quadcopter with an exceptionally wide performance and endurance envelope.

A Small Quadcopter Optimised to Use High Efficiency Lithium Batteries

• Modern ultra efficient Lithium batteries can have nearly twice the energy per unit weight of the LiPo batteries we normally use.
• 3300 mah 3.7volt Panasonic NCR18650B batteries weigh 47 grams versus a normal LiPo equivalent of about 100 grams per cell.
• Their disadvantage is that their maximum discharge rate is only 2C so 6.6 Amps.
• They will also last for many times the number of charge discharge cycles of our normal LiPos.
• Used properly a copter using these batteries can get nearly twice the flight time of one with the same weight of LiPo batteries.
• The most important factor in designing a copter to use these batteries is to keep the weight low enough that their is sufficient current.
• This quadcopter design uses carefully selected T-Motor MT2206 1200 KV 30 gram motors and 10” props with a light carbon fiber frame.
• It includes a 2S 2P 6600mah lithium battery, flight controller, receiver and even an FPV camera and transmitter.
• It weighs about a pound and since the battery is 2 parallel it can provide 13.2 amps of current (max current is less than 10 amps.)
• Xcalc computations show that a hover time of 60 minutes might be possible with a realistic fly around time of about 30 minutes.

This is an easy to build example of a practical and rugged design with exceptional capabilities and double the normal flight time.

Links To Specific MultiCopter Builds

• Here is a link to Forrest Franz’s build of a very simple, very light weight, very strong carbon fiber Quadcopter frame

• And some links to some of Forrests extremely ambitious copter building techniques and concepts.

  • building-copters-with-round-tubes-stronger-lighter-easier
  • build-your-own-copter-part-ii
  • build-your-own-copter-part-iii
  • build-your-own-copter-part-iv

• And here is a link to Luke Cook’s very serious, very well thought out and meticulously executed OctoCopter Build



• A link to Stuart Dodin’s really nice X8 heavy lifter Octocopter



A Commercial MultiCopter Exhibiting Advanced Design Concepts

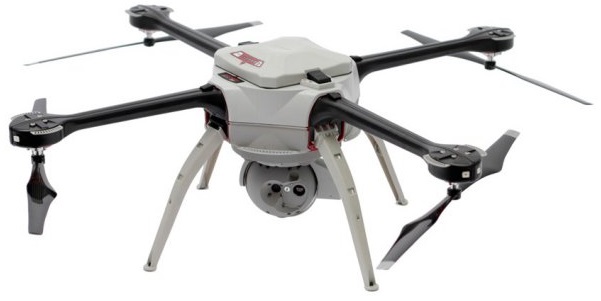

Here is an example of an excellent QuadCopter design: the Aeryon SkyRanger for high end UAV applications.

This copter has a lot of things right and is really a study in good design and quality construction.

1. The rotating ball full enclosure camera Gimbal provides good weather protection and improved performance.
2. The motors are on the bottom under the arms.
   1. More aerodynamically efficient with no prop wash interference and very little intake interference.
   2. Noticeably increased flight times, greater lift capability and quieter as well.
3. High torque, low KV “pancake” style motors and slow turning, large diameter, high efficiency props.
   1. This is much more efficient than faster motors with smaller diameter conventional design props.
   2. This also increases flight times and load capacity and reduces the sound footprint.
4. Tapered carbon fiber frame arms are more aerodynamically efficient and are light and very strong.
5. The fully enclosed weather tight framework with snap latch type access makes maintaining the copter easy.
6. A simple spring loaded landing gear provides for uneven landing sites and minimal interference with the prop wash.

This QuadCopter incorporates several excellent design concepts and shows what can be done without budget constraints.

The Skyranger has features we can use in our own designs but it is important to understand all designs are compromises.

The 3DRobotics Iris is one of the best designed QuadCopters that you can actually get and it is a real bargain.

Conclusion and Additional Design Considerations

• I have not covered either 3D printing or CNC machining.
  • These are both perfectly valid techniques for either whole frames or for parts or accessories.
  • But most people do not have the equipment or capability which is why they are not covered here.
  • Clearly if you have either of these capabilities they can greatly enhance your copter projects.
• I have also not covered in depth hand laid fiberglass or carbon fiber or vacuum bagging.
  • You can make Dynamite frames or shells this way but this too requires serious individual skill and capability (especially carbon fiber).
• I have also not gone into detail about the engineering criteria for multicopters:
  • 1. I don’t know.
  • 2. From what I’ve seen very few people do.
  • C. One who does is Paul Pounds PHD and here is his Paper on the subject: Quadrotors
• If you stick to a simple design and try to keep frame arm to a simple single small tube under the prop wash it will work fine.
  • Round tubing has about half the flat plate area (prop wash interference) as the same sized square tubing.
  • You can improve efficiency by putting the motor prop under the frame arm but then there are frame design and clearance issues.
• Try to keep the weight centralized as much as possible and keep the flight controller near the horizontal center if possible.
  • So that the copter tends to roll and pitch as though pivoting around the center of mass and around the flight controller.
  • However it is not as critical as some people have made it out to be because the stabilizing throttles will automatically compensate.
• You can do a lot with a rudimentary understanding of the forces involved, if you need more it is a career, not a hobby.
