Archived:PX4IO Overview

Warning

ARCHIVED

The PX4FMU (“PX4”) is end of life and is not generally available for purchase - ditto this companion board! This article is made available for existing users.

  • The PX4-IO board Contains its own on board microcontroller and stacks with the PX4-FMU board.
  • Built in Brownout proof direct battery input power supply.
  • 8 High speed servo PWM outputs.
  • Futaba SBUS or PPM-SUM serial servo output.
  • Futaba SBUS, PPM-SUM or Spektrum serial inputs from your receiver.
  • Two user assignable relays, two 1/2 amp 5 volt outputs and an analog input port.
  • All power inputs are reverse polarity protected.
  • All power outputs are current limited.
  • All logic inputs and outputs are ESD protected.
  • All PX4IO boards use positive retention DF13 connectors and a variety of connectors.
  • Wires with pre-crimped sockets and pre-made cables are available inexpensively for the PX4-IO from 3DRobotics.

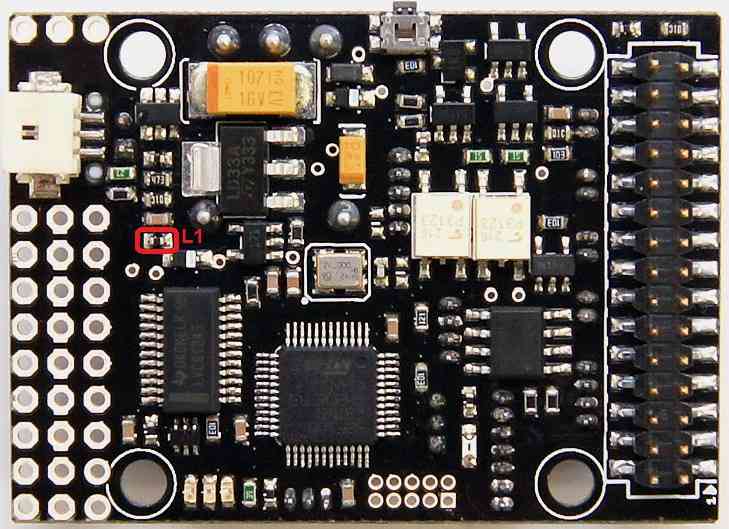

The Bottom of the PX4IO Board

../_images/PX4io-bottom.jpg
  • Note the Red Circled item above is ferrite L1.
  • For high power servos you can remove L1 to allow you to supply power from an external power supply to a servo connector center pin.

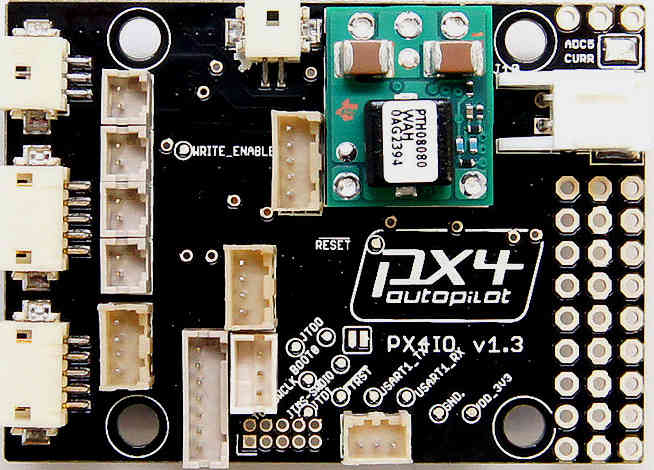

The Top of the PX4IO Board

../_images/PX4io-top.jpg

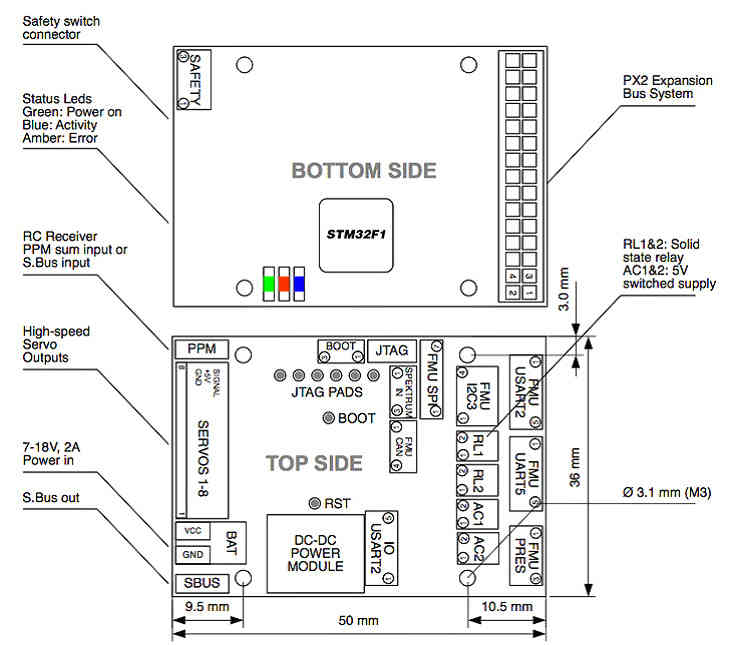

A Breif Description of the PX4IO Board

../_images/PX4IOdiagram.jpg

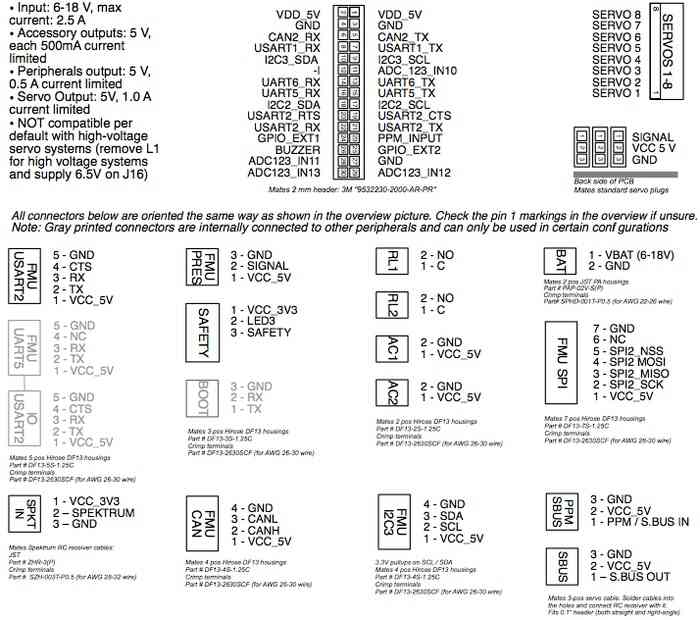

The PX4IO Board Connector pin assignments

../_images/PX4IOconnectors.jpg

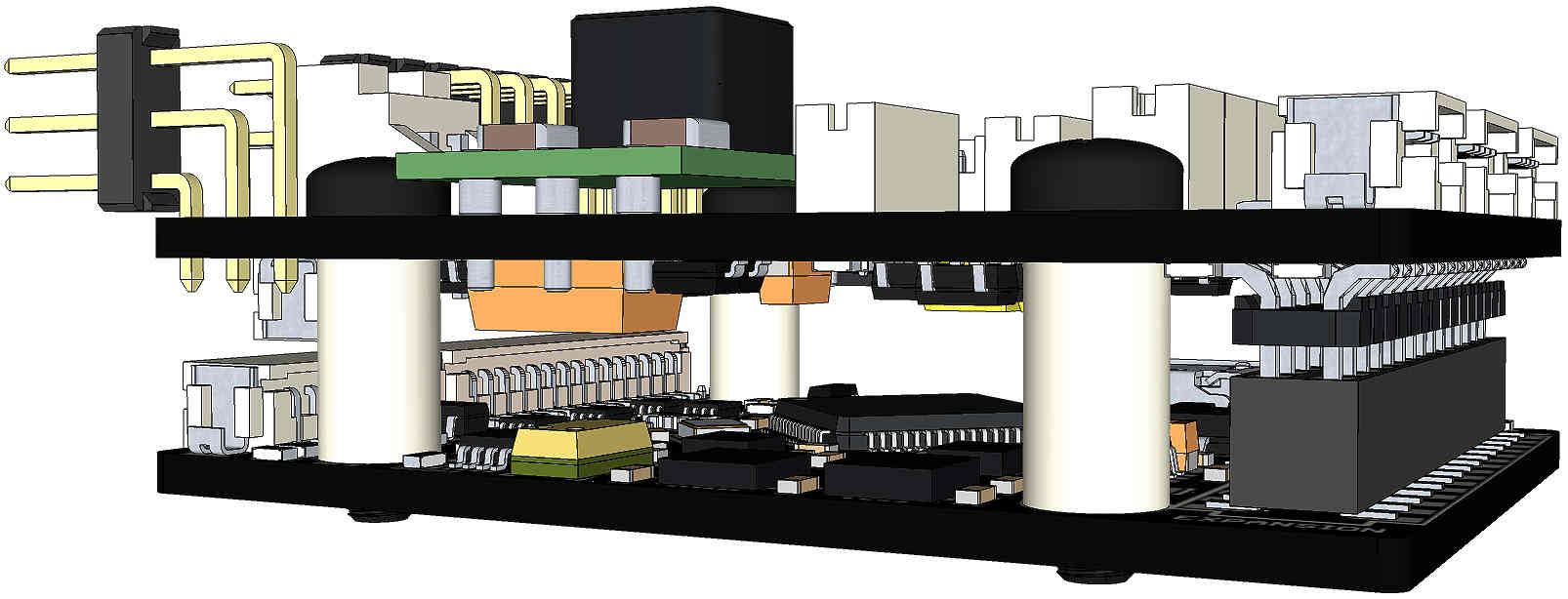

The PX4IO Board Stacks On Top of the PX4-FMU board

../_images/PX4-STACK1.jpg
