CUAV V5 Nano Overview

../_images/v5-nano_01.png

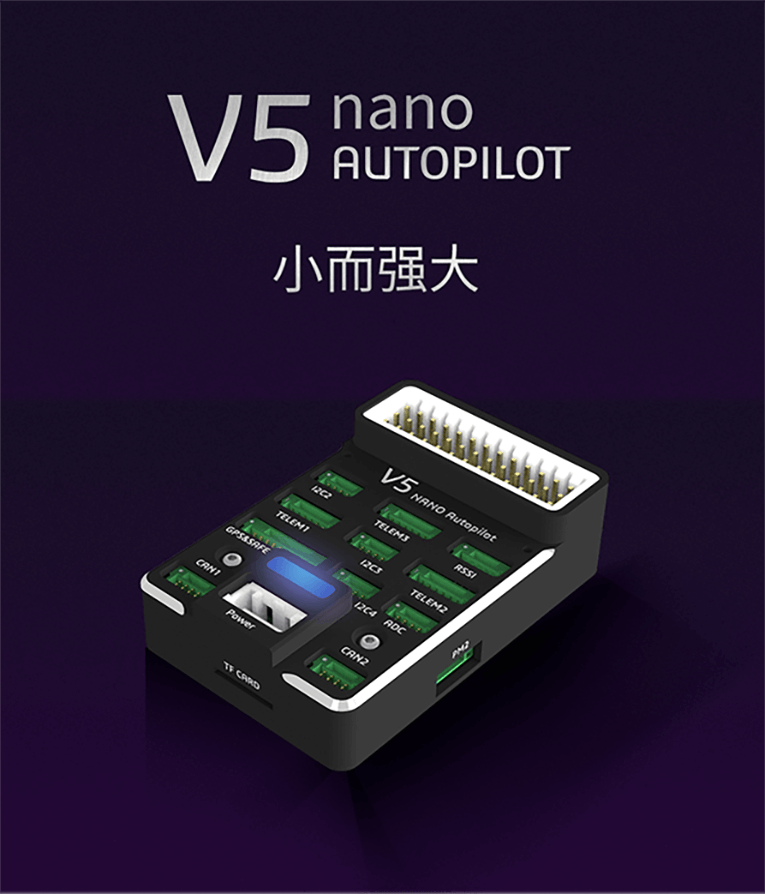

The CUAV v5 Nano is an advanced STM32F765 autopilot designed and made by CUAV. CUAV v5 Nano is intended for engineers and hobbyists who are looking for the power of CUAV V5+ but are working with smaller drones.

Specifications

  • Processor
    • 32-bit ARM Cortex M7 core with DPFPU
    • 216 Mhz/512 KB RAM/2 MB Flash
  • Sensors
    • InvenSense ICM20689 accelerometer / gyroscope
    • InvenSense ICM20602 : accelerometer / gyroscope
    • Bosch BMI055 accelerometer / gyroscope
    • MS5611 barometer
    • IST8310 magnetometer
  • Power
    • Operating power: 4.3~5.4V
    • USB Input: 4.75~5.25V
    • High-power servo rail, up to 36V (servo rail does not power the flight controller)
    • Dual voltage and current monitor inputs
    • CUAV v5 nano can be dual redundant if power is provided to Power 1 and USB inputs
  • Interfaces
    • 8 - 11 PWM servo outputs
    • 3 dedicated PWM/Capture inputs on FMU
    • S.Bus servo output
    • PPM connector supports all RC protocols (including SBUS, DSM, ST24, SRXL and PPM)
    • SBUS/DSM/RSSI connector supports all RC protocols (including SBUS, DSM, ST24, SRXL and PPM) and analog / PWM RSSI input
    • 5x general purpose serial ports
    • 3x I2C ports
    • 4x SPI bus
    • 2x CAN Bus ports
    • 2x analog battery monitor ports
  • Other
  • Dimensions: 60mm x 40mm x 14mm
  • Operating temperature: -20 ~ 80°c(Measured value)

Where to Buy

Order from here. Official retailers are listed here.

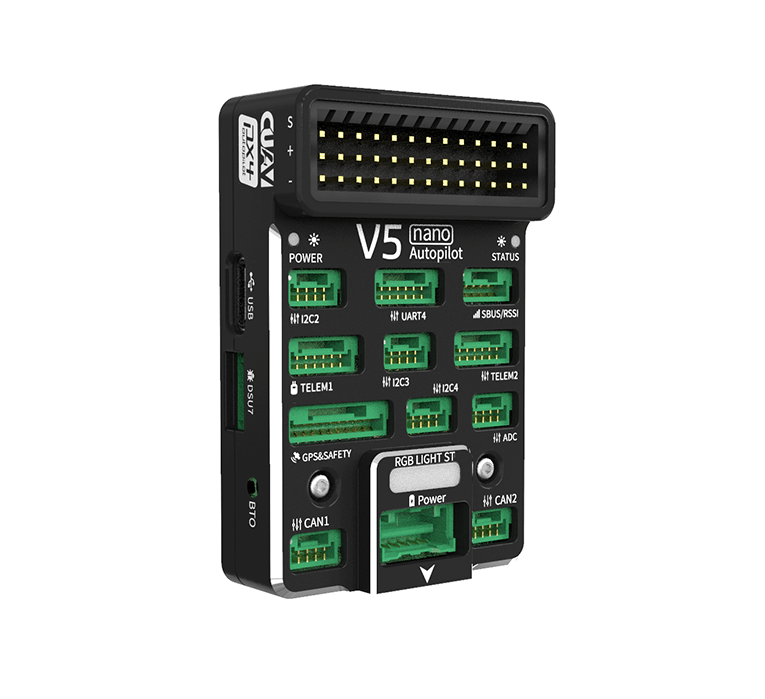

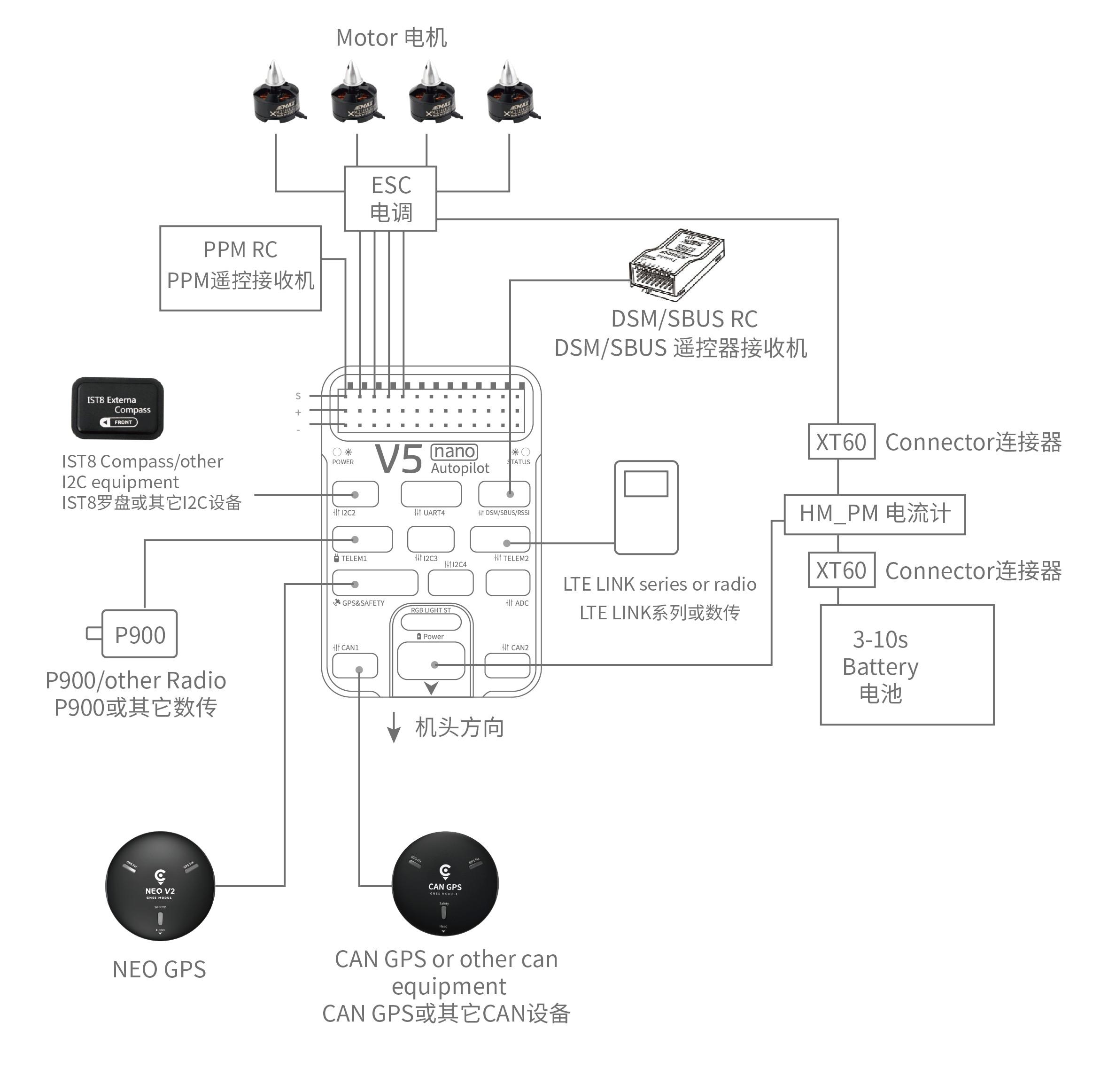

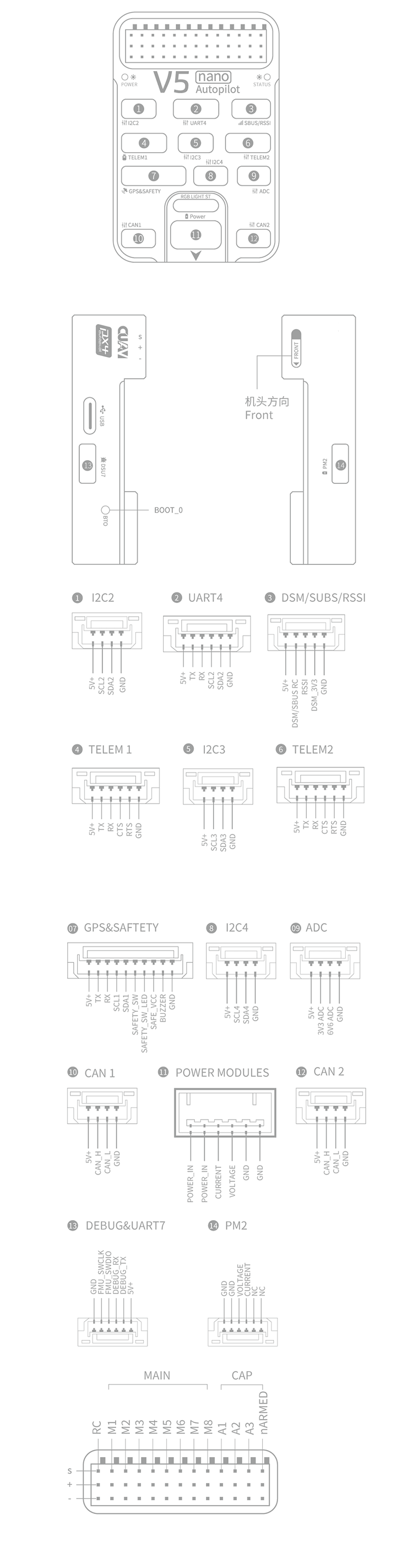

Quick Start

../_images/v5-nano_pinouts.png
Interfaces
Main Interface Function
Power 1 Primary power module. Flight controller power, V & I monitor
PM2 2 x ADC, ie second V & I monitor. Does not provide power
TF Card Insert SD card for log file and terrain data storage
M1 - M8 Main Outputs. Servo/motor/D-Shot capable
A1 - A3 Additional Outputs. Servo/motor capable
DSU7 Serial 6 (uart7)
ADC Analog sensor input
I2C2/I2C3/I2C4 External I2C (Compass / rangefinder etc)
CAN1/CAN2 CANBUS (UAVCAN, KDECAN, ToshibaCAN)
GPS & SAFETY CUAV NEO v2 GPS with compass, safety switch, LED, buzzer
TELEM1 / TELEM2 Serial ports (telemetry, peripherals, companion computer)
DSM/SBUS/RSSI RC Input (SBUS / DSM / ST24 / SRXL / PPM) or RSSI Input
../_images/v5-nano_quickstart_01.png ../_images/v5-nano_quickstart_02.png

More Information

CUAV V5 Nano PDF here

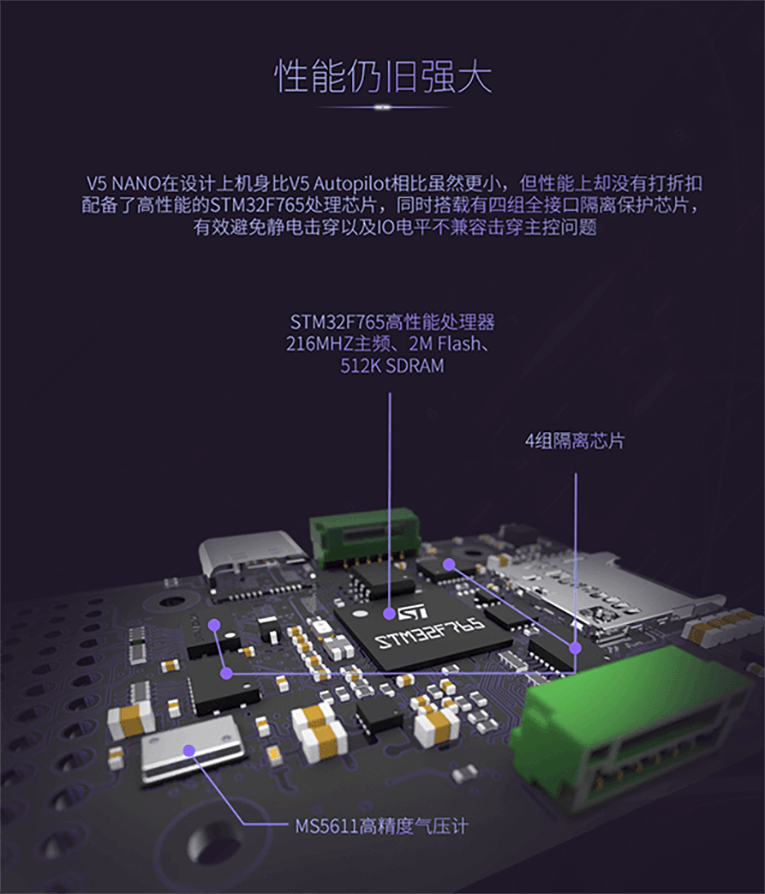

More Images

../_images/v5-nano_02.png
