Radio Control Calibration¶

This article shows how to perform radio control calibration using Mission Planner

Overview¶

RC transmitters allow the pilot to set the flight mode, control the vehicle’s movement and orientation and also turn on/off auxiliary functions (i.e. raising and lowering landing gear, etc).

RC Calibration involves capturing each RC input channel’s minimum, maximum and “trim” values so that ArduPilot can correctly interpret the input.

Check the Transmitter’s Setup¶

Ensure the battery is disconnected (this is important because it is possible to accidentally arm the vehicle during the RC calibration process)
Ensure the RC receiver is connected to the flight controller
Turn on your RC transmitter and if it has “trim tabs” ensure they are in the middle
Connect the flight controller to the PC using a USB cable

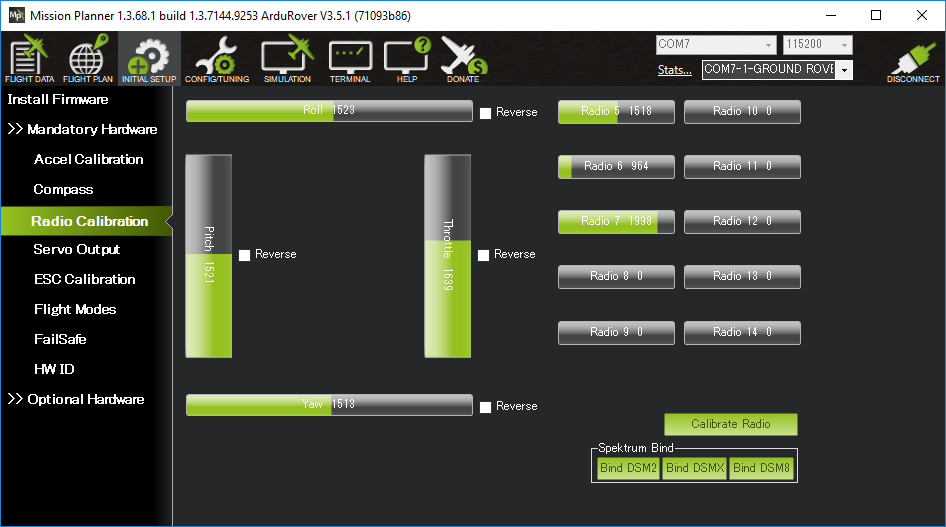

On the Mission Planner press the “Connect” button and open Mission Planner’s INITIAL SETUP | Mandatory Hardware | Radio Calibration screen
Some green bars should appear showing the ArduPilot is receiving input from the Transmitter/Receiver. If no bars appear check the receiver’s LED:
- No lights may indicate that it is incorrectly wired to the autopilot. Look for connectors that may have been inserted upside down
- A Red or flashing LED may indicate that your RC transmitter/receiver need be bound. See the manual that came with your RC equipment for instructions

Check the channel mapping in the transmitter (ie. check which inputs channels are controlled by the transmitter’s sticks, switches and knobs) by moving the sticks, knobs and switches and observing which (if any) green bars move. If this is the first time the transmitter is being used with ArduPilot it is likely that the transmitter’s channel mapping will need to be changed and normally this is done on the transmitter itself using its built-in configuration menu
- Determine if your transmitter is Mode1 or Mode2 (see below)
- Roll stick should control channel 1
- Pitch stick should control channel 2
- Throttle stick should control channel 3
- Yaw stick should control channel 4
- A 3 position switch (to control the flight mode) should be setup to control Channel 5 (if using Copter) or Channel 8 (if using Rover or Plane). This channel can be moved by setting the FLTMODE_CH or MODE_CH parameter
- On Copter, a tuning knob should control Channel 6
- On Copter and Rover, any remaining two or three position switches can be setup to control auxiliary functions by mapping them to channels 7 to 12
Move the transmitter’s roll, pitch, throttle and yaw sticks and ensure the green bars move in the correct direction:
- for roll, throttle and yaw channels, the green bars should move in the same direction as the transmitter’s physical sticks
- for pitch, the green bar should move in the opposite direction to the transmitter’s physical stick
- if one of the green bars moves in the incorrect direction reverse the channel in the transmitter itself. If it is not possible to reverse the channel in the transmitter you may reverse the channel in ArduPilot by checking the “Reversed” checkbox (Plane and Rover only). If the checkbox is not visible it is possible to reverse the channel by directly changing the RCx_REVERSED parameter (where “x” is the input channel from 1 to 4).

Calibration¶

Open Mission Planner’s INITIAL SETUP | Mandatory Hardware | Radio Calibration screen

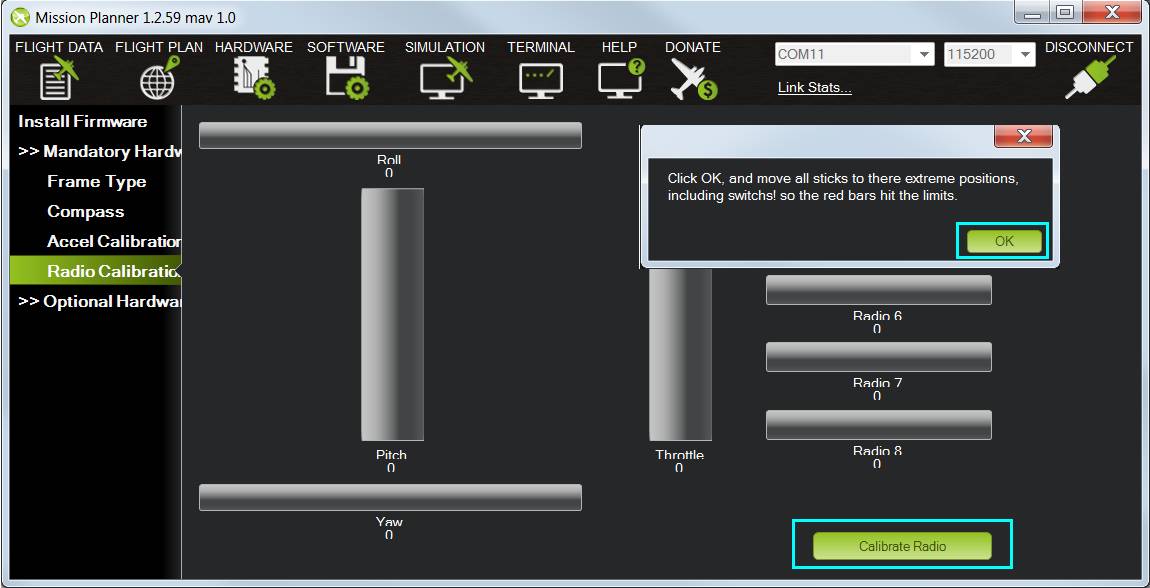

Click on the green “Calibrate Radio” button on the bottom right
Press “OK” when prompted to check the radio control equipment is on, battery is not connected, and propellers are not attached

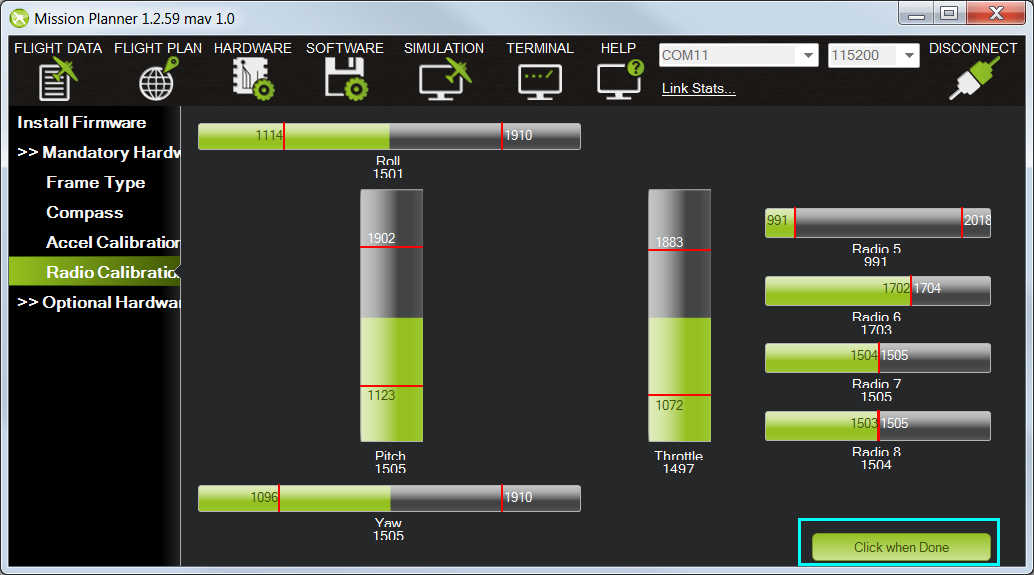

Move the transmitter’s control sticks, knobs and switches to their limits. Red lines will appear across the calibration bars to show minimum and maximum values seen so far
Select Click when Done
A window will appear with the prompt, “Ensure all your sticks are centered and throttle is down and click ok to continue”. Move the throttle to zero and press “OK”.

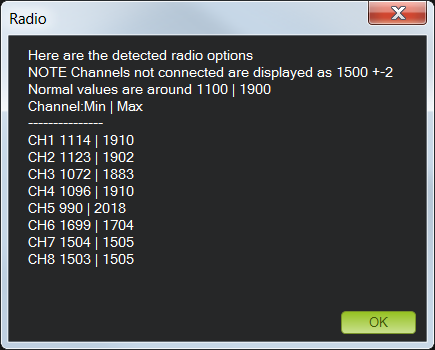

Mission Planner will show a summary of the calibration data. Normal values are around 1100 for minimums and 1900 for maximums.

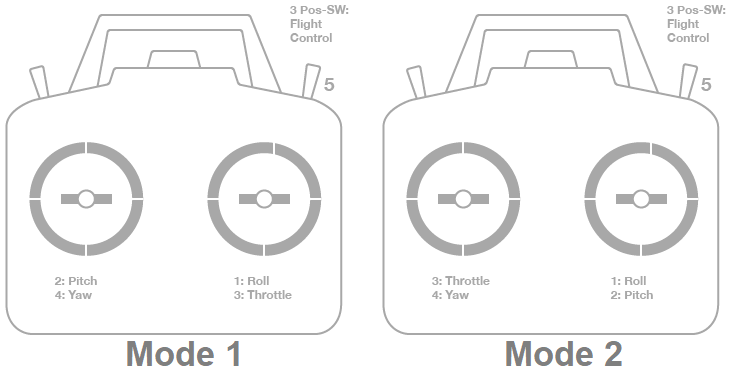

Mode1 and Mode2 Transmitters¶

There are two main transmitter configurations:

Mode 1: left stick controls pitch and yaw, the right stick will control throttle and roll.
Mode 2: left stick controls throttle and yaw; the right stick will control pitch and roll.

Channel mappings¶

Copter default channel mappings are:

Channel 1: Roll
Channel 2: Pitch
Channel 3: Throttle
Channel 4: Yaw
Channel 5: Flight modes
Channel 6: (Optional) Inflight tuning or camera mount (mapped to transmitter tuning knob)
Channel 7 to 12: (Optional) Auxiliary function switches
