Speedy Bee F4¶

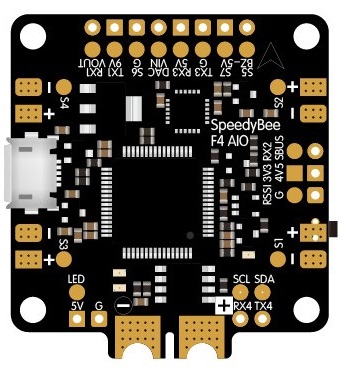

above image and some content courtesy of the speedybee.com
Note
Support for the SpeedyBee F4 was released with Copter-3.6.1
Specifications¶
- Processor and Sensors
- STM32F405 ARM microcontroller
- InvenSense MPU6000 IMU (accel, gyro, compass)
- Interfaces
- 4x PWM outputs
- 1x RC input (PWM/PPM, SBUS)
- 4x serial port inputs (including RC input listed above)
- 1x I2C for external compass
- battery voltage and current monitor
- Onboard Bluetooth
- USB port
- 3S to 6S input power
