Mission Commands¶
This article describes the mission commands that are supported by Copter, Plane and Rover when switched into Auto mode.
Warning
This is a work-in-progress and has not been full reviewed. A better list for Copter can be found here
Overview¶
The MAVLink protocol defines a large number of
MAV_CMD
waypoint command types (sent in a MAVLink_mission_item_message).
ArduPilot implements handling for the subset of these commands and
command-parameters that are most relevant and meaningful for each of
the vehicles. Unsupported commands that are sent to a particular
autopilot will simply be dropped.
This article lists and describes the commands and command-parameters that are supported on each of the vehicle types. Any parameter that is “grey” is not supported by the autopilot and will be ignored (they are still documented to make it clear which properties that are supported by the MAV_CMD protocol are not implemented by the vehicle.
Some commands and command-parameters are not implemented because they are not relevant for particular vehicle types (for example “MAV_CMD_NAV_TAKEOFF” command makes sense for Plane and Copter but not Rover, and the pitch parameter only makes sense for Plane). There are also some potentially useful command-parameters that are not handled because there is a limit to the message size, and a decision has been made to prioritise some parameters over others.
Note
There is additional information about the supported commands on Copter (from a Mission Planner perspective) in the Copter Mission Command List.
Types of commands¶
There are several different types of commands that can be used within missions:
- Navigation commands are used to control the movement of the vehicle, including takeoff, moving to and around waypoints, changing altitude, and landing.
- DO commands are for auxiliary functions and do not affect the vehicle’s position (for example, setting the camera trigger distance, or setting a servo value).
- Condition commands are used to delay DO commands until some condition is met, for example the UAV reaches a certain altitude or distance from the waypoint.
During a mission at most one “Navigation” command and one “Do” or “Condition” command can be running at one time. A typical mission might set a waypoint (NAV command), add a CONDITION command that doesn’t complete until a certain distance from the destination (MAV_CMD_CONDITION_DISTANCE), and then add a number of DO commands that are executed sequentially (for example MAV_CMD_DO_SET_CAM_TRIGG_DIST to take pictures at regular intervals) when the condition completes.
Note
CONDITION and DO commands are associated with the preceding NAV command: if the UAV reaches the waypoint before these commands are executed, the next NAV command is loaded and they will be skipped.
Frames of reference¶
Many of the commands (in particular the NAV_ commands) include position/location information. The information is provided relative to a particular “frame of reference”, which is specified in the message’s Frames of reference field. Copter and Rover Mission use MAV_CMD_DO_SET_HOME command to set the “home position” in the global coordinate frame (MAV_FRAME_GLOBAL), WGS84 coordinate system, where altitude is relative to mean sea level. All other commands use the MAV_FRAME_GLOBAL_RELATIVE_ALT frame, which uses the same latitude and longitude, but sets altitude as relative to the home position (home altitude = 0).
Plane commands can additionally use MAV_FRAME_GLOBAL_TERRAIN_ALT frame of reference. This again has the same WGS84 frame of reference for latitude/Longitude, but specifies altitude relative to ground height (as defined in a terrain database).
Note
The other frame types defined in the MAVLink protocol (see MAV_FRAME) are not supported for mission commands.
How accurate is the information?¶
If a command or parameter is marked as supported then it is likely (but not guaranteed) that it will behave as indicated. If a command or parameter is not listed (or marked as not supported) then it is extremely likely that it is not supported on ArduPilot.
The reason for this is that the information was predominantly inferred by inspecting the command handlers for messages:
- The switch statement in `AP_Mission::mavlink_to_mission_cmd was inspected to determine which commands are handled by all vehicle platforms, and which parameters from the message are stored.
- The command handler switch for each vehicle type (Plane, Copter, Rover) tells us which commands are likely to be supported in each vehicle and which parameters are passed to the handler.
The above checks give a very accurate picture of what commands and parameters are not supported. They gives a fairly accurate picture of what commands/parameters are likely to be supported. However this indication is not guaranteed to be accurate because a command handler could just throw away all the information (and we have not fully checked all of these).
In addition to the above checks, we have also merged information from the Copter Mission Command List.
How to interpret the commands parameters¶
The parameters for each command are listed in a table. The parameters that are “greyed out” are not supported. The command field column (param name) uses “bold” text to indicate those parameters that are defined in the protocol (normal text is used for “empty” parameters).
This allows users/developers to see both what is supported, and what protocol fields are not supported in ArduPilot.
Using this information with a GCS¶
Mission Planner (MP) exposes the full subset of commands and
parameters supported by ArduPilot, filtered to display just those
relevant to the currently connected vehicle. Mapping the MP commands to
this documentation is easy, because it simply names commands using a
cut-down version of the full command name (e.g. DO_SET_SERVO rather
than the full command name: MAV_CMD_DO_SET_SERVO). In addition, this
document conveniently lists the column label used by Mission Planner
alongside each of the parameters.
Other GCSs (APM Planner 2, Tower etc.) may support some other subset of commands/parameters and use alternative names/labels for them. In most cases the mapping should be obvious.
Commands supported by Copter¶
This list of commands was inferred from the command handler in /ArduCopter/mode_auto.cpp.
MAV_CMD_DO_DIGICAM_CONFIGURE (Camera enabled only)
MAV_CMD_DO_DIGICAM_CONTROL (Camera enabled only)
MAV_CMD_DO_SET_CAM_TRIGG_DIST (Camera enabled only)
MAV_CMD_DO_PARACHUTE (Parachute enabled only)
MAV_CMD_DO_GRIPPER (EPM enabled only)
MAV_CMD_DO_GUIDED_LIMITS (NAV_GUIDED only)
MAV_CMD_NAV_GUIDED_ENABLE (NAV_GUIDED only)
Special Commands¶
This section is for commands that may be relevant to missions, but but which are not mission commands (part of the mission).
MAV_CMD_MISSION_START¶
Supported by: Copter
Start running the current mission. This allows a GCS/companion computer to start a mission in AUTO without raising the throttle.
Note
This was introduced in AC3.3.
Copter¶
This command can be used to start a mission when the Copter is on the ground in AUTO mode. If the vehicle is already in the air then the mission will start as soon as you switch into AUTO mode (so this command is not needed/ignored).
Note
Previously a mission would only start after the pilot engaged the throttle. This command makes it possible to start missions without directly controlling the throttle (though that approach is still available).
This is not a “mission command” (it can’t be used as a type of mission waypoint). It is run from the Action menu (see the screenshot below).
Command parameters
The parameters are all ignored.
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | The first mission item to run. | |
| param2 | The last mission item to run (after this item is run, the mission ends). | |
| param3 | ||
| param4 | ||
| param5 | ||
| param6 | ||
| param7 |
Mission Planner screenshots

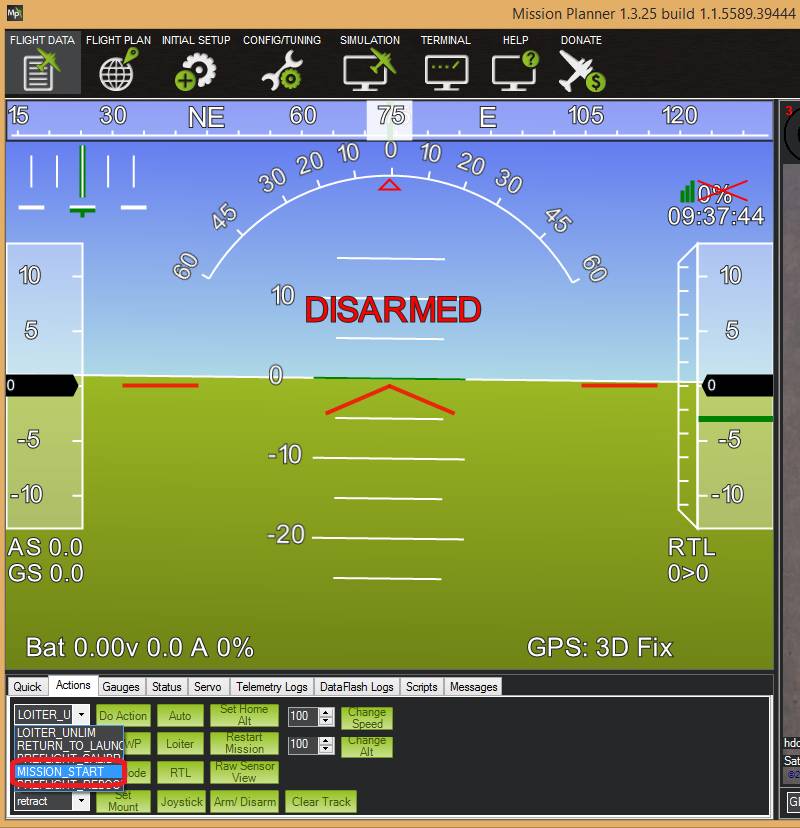

Mission Planner: MISSION_STARTcommand
MAV_CMD_COMPONENT_ARM_DISARM¶
Supported by: Copter
Disarm the motors.
Note
This was introduced in AC3.3.
Copter¶
Disarm the motors.
The command supports disarming on the ground and in flight.
Note
The motors will disarm automatically after landing.
This is not a “mission command” (it can’t be used as a type of mission waypoint).
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | 1 to arm, 0 to disarm. This only works when the vehicle is on the ground. | |
| param2 | A value of 21196 will disarm the vehicle in flight. | |
| param3 | ||
| param4 | ||
| param5 | ||
| param6 | ||
| param7 |
Navigation commands¶
Navigation commands are used to control the movement of the vehicle, including takeoff, moving to and around waypoints, and landing.
NAV commands have the highest priority. Any DO_ and CONDITION_ commands that have not executed when a NAV command is loaded are skipped (for example, if a waypoint completes and the NAV command for another waypoint is loaded, and unexecuted DO/CONDITION commands associated with the first waypoint are dropped.
MAV_CMD_NAV_WAYPOINT¶
Supported by: Copter, Plane, Rover.
Navigate to the specified position.
Copter¶
The Copter will fly a straight line to the specified latitude, longitude and altitude. It will then wait at the point for a specified delay time and then proceed to the next waypoint.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Delay | Hold time at mission waypoint in decimal seconds - MAX 65535 seconds. (Copter/Rover only) |
| param2 | Acceptance radius in meters (when plain inside the sphere of this radius, the waypoint is considered reached) (Plane only). | |
| param3 | 0 to pass through the WP, if > 0 radius in meters to pass by WP. Positive value for clockwise orbit, negative value for counter-clockwise orbit. Allows trajectory control. | |
| param4 | Desired yaw angle at waypoint target.(rotary wing) | |
| param5 | Lat | Target latitude. If zero, the Copter will hold at the current latitude. |
| param6 | Lon | Target longitude. If zero, the Copter will hold at the current longitude. |
| param7 | Alt | Target altitude. If zero, the Copter will hold at the current altitude. |
Parameters 2-4 are not supported on Copter:
- Hit Rad - is supposed to hold the distance (in meters) from the target point that will qualify the waypoint as complete. This command is not supported. Instead the WPNAV_RADIUS parameter should be used (see “WP Radius” field in screen shot or adjust through the Standard Parameters List). Even the WPNAV_RADIUS is only used when the waypoint has a Delay. With no delay specified the waypoint will be considered complete when the virtual point that the vehicle is chasing reaches the waypoint. This can be 10m (or more) ahead of the vehicle meaning that the vehicle will turn towards the following waypoint long before it actually reaches the current waypoint
- Yaw Ang - is supposed to hold the resulting yaw angle in degrees (0=north, 90 = east). Instead use a MAV_CMD_CONDITION_YAW command.
Mission Planner screenshots
Copter: Mission Planner Settings forWAYPOINT command
MAV_CMD_NAV_TAKEOFF¶
Supported by: Copter, Plane (not Rover).
Takeoff (either from ground or by hand-launch). It should be the first command of nearly all Plane and Copter missions.
Copter¶
The vehicle will climb straight up from it’s current location to the specified altitude. If the mission is begun while the copter is already flying, the vehicle will climb straight up to the specified altitude, if the vehicle is already above the altitude the command will be ignored and the mission will move onto the next command immediately.
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Grade % | Pitch/climb angle (Plane only). |
| param2 | Empty | |
| param3 | Empty | |
| param4 | Yaw angle (ignored if compass not present). | |
| param5 | Lat | Latitude |
| param6 | Lon | Longitude |
| param7 | Alt | Altitude |
Mission planner screenshots
Copter: Mission Planner Settings forTAKEOFF command
MAV_CMD_NAV_LOITER_UNLIM¶
Supported by: Copter, Plane, Rover.
Loiter at the specified location for an unlimited amount of time.
Copter¶
Fly to the specified location and then loiter there indefinitely — where loiter means “wait in place” (rather than “circle”). If zero is specified for a latitude/longitude/altitude parameter then the current location value for the parameter will be used.
The mission will not proceed past this command while in AUTO mode. In
order to break out of this command you need to change the mode (i.e. to
MANUAL). If there are subsequent commands then you can continue the
mission at the next command, if the Copter MIS_RESTART parameter is
set to resume, by switching back to AUTO mode (otherwise the mission
will restart).
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Empty | |
| param2 | Empty | |
| param3 | Radius around MISSION, in meters. If positive loiter clockwise, else counter-clockwise | |
| param4 | Desired yaw angle. | |
| param5 | Lat | Target latitude. If zero, the vehicle will loiter at the current latitude. |
| param6 | Lon | Target longitude. If zero, the vehicle will loiter at the current longitude. |
| param7 | Alt | Target altitude. If zero, the vehicle will loiter at the current altitude. |
Mission planner screenshots
Copter: Mission Planner Settings forLOITER_UNLIM command
MAV_CMD_NAV_LOITER_TURNS¶
Supported by: Copter, Plane (not Rover).
Loiter (circle) the specified location for a specified number of turns.
Copter¶
Loiter (circle) the specified location for a specified number of turns, and then proceed to the next command. If zero is specified for a latitude/longitude/altitude parameter then the current location value for the parameter will be used.
The radius of the circle is controlled by the CIRCLE_RADIUS parameter (i.e. cannot be set as part of the command).
This is the command equivalent of the Circle flight mode.
#HW TODO / QUESTION : Randy: Is radius and direction controlled by the message or by the CIRCLE parameters - like CIRCLE_RATE
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Turns | Number of turns (N x 360°) |
| param2 | Empty | |
| param3 | Radius | Radius around waypoint, in meters. Specify as a positive value to loiter clockwise, negative to move counter-clockwise. |
| param4 | Desired yaw angle. | |
| param5 | Lat | Target latitude. If zero, the vehicle will loiter at the current latitude. |
| param6 | Lon | Target longitude. If zero, the vehicle will loiter at the current longitude. |
| param7 | Alt | Target altitude. If zero, the vehicle will loiter at the current altitude. |
Mission planner screenshots
Copter: Mission Planner Settings forLOITER_TURNS command
MAV_CMD_NAV_LOITER_TIME¶
Supported by: Copter, Plane, Rover.
Loiter at the specified location for a set time (in seconds).
Copter¶
Fly to the specified location and then loiter there for the specified number of seconds — where loiter means “wait in place” (rather than “circle”). The timer starts when the waypoint is reached; when it expires the waypoint is complete. If zero is specified for a latitude/longitude/altitude parameter then the current location value for the parameter will be used.
This is the mission equivalent of the Loiter flight mode.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Time s | Time to loiter at waypoint (seconds - decimal) |
| param2 | Empty | |
| param3 | Dir 1=CW | Radius around waypoint, in meters. Specify as a positive value to loiter clockwise, negative to move counter-clockwise. |
| param4 | Desired yaw angle. | |
| param5 | Lat | Target latitude. If zero, the vehicle will loiter at the current latitude. |
| param6 | Lon | Target longitude. If zero, the vehicle will loiter at the current longitude. |
| param7 | Alt | Target altitude. If zero, the vehicle will loiter at the current altitude. |
Mission planner screenshots
Copter: Mission Planner Settings forLOITER_TIME command
MAV_CMD_NAV_RETURN_TO_LAUNCH¶
Supported by: Copter, Plane, Rover.
Return to the home location or the nearest Rally Point, if closer. The home location is where the vehicle was last armed (or when it first gets GPS lock after arming if the vehicle configuration allows this).
#HW TODO / Questions - Randy: Check that copter still uses RTL_ALT parameter and doesn’t try to send information about height in the package.
Copter¶
Return to the home location (or the nearest Rally Point if closer) and then land. The home location is where the vehicle was last armed (or when it first gets GPS lock after arming if the vehicle configuration allows this).
This is the mission equivalent of the RTL flight mode. The vehicle will first climb to the RTL_ALT parameter’s specified altitude (default is 15m) before returning home.
This command takes no parameters and generally should be the last command in the mission.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Empty | |
| param2 | Empty | |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
Mission planner screenshots
Copter: Mission PlannerSettings for RETURN_TO_LAUNCH command
MAV_CMD_NAV_LAND¶
Supported by: Copter, Plane (not Rover).
Land the vehicle at the current or a specified location.
Copter¶
The copter will land at it’s current location or at the lat/lon coordinates provided (if non-zero). This is the mission equivalent of the LAND flight mode.
The motors will not stop on their own: you must exit AUTO mode to cut the engines.
#HW TODO / Questions - LAND in the “Creating a mission with waypoints doc” states : “If you have Sonar, the craft will stop holding position at 3 meters and drop straight down.” Is that true, and what does it mean?
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Empty | |
| param2 | Empty | |
| param3 | Empty | |
| param4 | Desired yaw angle. | |
| param5 | Lat | Target latitude. If zero, the Copter will land at the current latitude. |
| param6 | Lon | Longitude |
| param7 | Alt | Altitude |
Mission planner screenshots
Copter: Mission Planner Settings for LANDcommand
MAV_CMD_NAV_SPLINE_WAYPOINT¶
Supported by: Copter (not Plane or Rover).
Navigate to the target location using a spline path.
Copter¶
Fly to the target location using a Spline path, then wait (hover) for specified time before proceeding to the next command.
The Spline commands take all the same arguments are regular waypoints (lat, lon, alt, delay) but when executed the vehicle will fly smooth paths (both vertically and horizontally) instead of straight lines. Spline waypoints can be mixed with regular straight line waypoints as shown in the screenshot below.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Delay | Hold time at target, in decimal seconds. |
| param2 | Empty | |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Lat | Latitude/X of goal |
| param6 | Long | Longitude/Y of goal |
| param7 | Alt | Altitude/Z of goal |
Copter: Mission Planner Settingsfor SPLINE_WAYPOINT command
The Mission Planner screenshot shows the path the vehicle will take.
- The 1 second delay at the end of Waypoint #1 causes the vehicle to stop so Spline command #2 begins by taking a sharp 90degree turn
- The direction of travel as the vehicle passes through Spline Waypoint #3 is parallel to an imaginary line drawn between waypoints #2 and #4
- Waypoint #5 is a straight line so the vehicle lines itself up to point towards waypoint #5 even before reaching waypoint #4.
MAV_CMD_DO_JUMP¶
Supported by: Copter, Plane, Rover.
Jump to the specified command in the mission list. The jump command can be repeated either a specified number of times before continuing the mission, or it can be repeated indefinitely.
Tip
Despite the name, this command is really a “NAV_” command rather than a “DO_” command. Conditional commands like CONDITION_DELAY don’t affect DO_JUMP (it will always perform the jump as soon as it reaches the command).
Note
- This command can be called a maximum number of 15 times in a mission, after which new DO_JUMP commands are ignored. The maximum number changed from 3 to 15 in AC 3.3.
- The command was introduced in/works reliably from AC3.2
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | WP# | The command index/sequence number of the command to jump to. |
| param2 | Repeat# | Number of times that the DO_JUMP command will execute before moving to the next sequential command. If the value is zero the next command will execute immediately. A value of -1 will cause the command to repeat indefinitely. |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
Mission planner screenshots
Copter: Mission Planner Settings forDO_JUMP command
In the example above the vehicle would fly back-and-forth between waypoints #1 and #2 a total of 3 times before flying on to waypoint #4.
Conditional commands¶
Conditional commands control the execution of _DO_ commands. For example, a conditional command can prevent DO commands executing based on a time delay, until the vehicle is at a certain altitude, or at a specified distance from the next target position.
A conditional command may not complete before reaching the next waypoint. In this case, any unexecuted _DO_ commands associated with the last waypoint will be skipped.
MAV_CMD_CONDITION_DELAY¶
Supported by: Copter, Plane, Rover.
After reaching a waypoint, delay the execution of the next conditional “_DO_” command for the specified number of seconds (e.g. MAV_CMD_DO_SET_ROI).
Note
This command does not stop the vehicle. If the vehicle reaches the next waypoint before the delay timer completes, the delayed “_DO_” commands will never trigger.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Time (sec) | Delay in seconds (decimal). |
| param2 | Empty | |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
Mission planner screenshots
Copter: Mission Planner Settingsfor CONDITION_DELAY command
In the example above, Command #4 (DO_SET_ROI) is delayed so that it
starts 5 seconds after the vehicle has passed Waypoint #2.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Rate (cm/sec) | Descent / Ascend rate (m/s). |
| param2 | Empty | |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Alt | Target altitude |
MAV_CMD_CONDITION_DISTANCE¶
Supported by: Copter, Plane, Rover.
Delays the start of the next “_DO_” command until the vehicle is
within the specified number of meters of the next waypoint.
Note
This command does not stop the vehicle: it only affects DO commands.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Dist (m) | Distance from the next waypoint before DO commands are executed (meters). |
| param2 | Empty | |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
Mission planner screenshots
Copter: Mission PlannerSettings for CONDITION_DISTANCE command
In the example above, Command #4 (DO_SET_ROI) is delayed so that it
only starts once the vehicle is within 50m of waypoint #5.
MAV_CMD_CONDITION_YAW¶
Supported by: Copter (not Plane or Rover).
Point (yaw) the nose of the vehicle towards a specified heading.
Copter¶
Point (yaw) the nose of the vehicle towards a specified heading.
The parameters allow you to specify whether the target direction is
absolute or relative to the current yaw direction. If the direction is
relative you can also (separately) specify whether the value is added or
subtracted from the current heading (note that the vehicle will always
turn in direction that most quickly gets it to the new target heading
regardless of the param3 value).
We don’t support controlling the yaw rate, so the param2 value (Sec)
is ignored.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Deg |
If param4=0 (absolute): Target heading in degrees [0-360] (0 is North).
If param4=1 (relative): The change in heading (in degrees).
|
| param2 | Sec | Speed during yaw change:[deg per second]. |
| param3 | Dir 1=CW | If param4=1 (relative) only: [-1 = CCW, +1 = CW]. This denotes
whether the flight controller should add (CW) or subtract (CCW) the
degrees (``param1``) from the current heading to calculate the target heading.
|
| param4 | rel/abs | Specify if param1 ("Deg" field) is an absolute direction (0) or a relative to the current yaw direction (1). |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
Mission planner screenshots
Copter: Mission Planner Settingsfor CONDITION_YAW command
DO commands¶
The “DO” or “Now” commands are executed once to perform some action. All the DO commands associated with a waypoint are executed immediately.
MAV_CMD_DO_SET_MODE¶
Supported by: Copter, Plane, Rover.
Set system mode (preflight, armed, disarmed etc.)
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Mode, as defined by `MAV_MODE |
|
| param2 | Custom mode - this is system specific, please refer to the individual autopilot specifications for details. | |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
MAV_CMD_DO_CHANGE_SPEED¶
Supported by: Copter, Plane, Rover.
Change the target horizontal speed and/or throttle of the vehicle. The changes will be used until they are explicitly changed again or the device is rebooted.
Copter¶
Sets the desired maximum speed in meters/second (only). Both the speed-type and throttle settings are ignored.
Note
In AC3.1.5 (and earlier) versions the speed change will only take effect after the current navigation command (i.e. waypoint command) completes. From AC3.2 onwards the vehicle speed will change immediately.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | speed m/s | Speed type (0=Airspeed, 1=Ground Speed). |
| param2 | speed m/s | Target speed (m/s). |
| param3 | Throttle as a percentage (0-100%). A value of -1 indicates no change. | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
Mission planner screenshots
Copter: Mission Planner Settingsfor DO_CHANGE_SPEED command
Note
From AC3.2 the speed parameter will be in the SECOND COLUMN, not the first column as in previous releases and shown above (this is to match the official MAVLINK protocol)
MAV_CMD_DO_SET_HOME¶
Supported by: Copter, Plane, Rover.
Sets the home location either as the current location or at the location specified in the command.
Note
- For Plane and Rover, if a good GPS fix cannot be obtained the location specified in the command is used.
- For Copter, the command will also try to use the current position if all the location parameters are set to 0. The location information in the command is only used if it is close to the EKF origin.
Warning
This command should not be used in AC3.2 due to this issue. Instead Rally Points can be used to control the position used for RETURN_TO_LAUNCH (“Home” is also used internally as the “origin” for all navigation calculations). The command is fixed in AC3.3.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Current | Set home location: 1=Set home as current location. 0=Use location specified in message parameters. |
| param2 | Empty | |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Lat | Target home latitude (if ``param1=2``) |
| param6 | Lon | Target home longitude (if ``param1=2``) |
| param7 | Alt | Target home altitude (if ``param1=2``) |
Mission planner screenshots
Copter: Mission Planner Settings forDO_SET_HOME command
MAV_CMD_DO_SET_RELAY¶
Supported by: Copter, Plane, Rover.
Set a Relay pin’s voltage high (on) or low (off).
#HW TODO / Question - is “toggling supported” using -1 in the setting? Some docs indicate this, but no information. “Toggling the Relay will turn an off relay on and vice versa”
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Relay No | Relay number. |
| param2 | off(0)/on(1) | Set relay state: 1: Set relay high/on (3.3V on Pixhawk, 5V on APM). 0: Set relay low/off (0v) |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
Mission planner screenshots

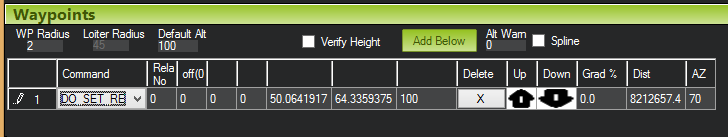

Copter: MissionPlanner Settings for DO_SET_RELAY command
MAV_CMD_DO_REPEAT_RELAY¶
Supported by: Copter, Plane, Rover.
Toggle the Relay pin’s voltage/state a specified number of times with a given period. Toggling the Relay will turn an off relay on and vice versa
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Relay No | Relay number. |
| param2 | Repeat # | Cycle count - the number of times the relay should be toggled |
| param3 | Delay(s) | Cycle time (seconds, decimal) - time between each toggle. |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
Mission planner screenshots
Copter: Mission Planner Settingsfor DO_RELAY_REPEAT command
In the example above, assuming the relay was off to begin with, it would be set high and then after 3 seconds it would be toggled low again.
MAV_CMD_DO_SET_SERVO¶
Supported by: Copter, Plane, Rover.
Set a given servo pin output to a specific PWM value.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Ser No | Servo number - target servo output pin/channel number. |
| param2 | PWM | PWM value to output, in microseconds (typically 1000 to 2000). |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
Mission planner screenshots
Copter: Mission Planner Settingsfor DO_SET_SERVO command
In the example above, the servo attached to output channel 8 would be moved to PWM 1700 (servos generally accept PWM values between 1000 and 2000).
MAV_CMD_DO_REPEAT_SERVO¶
Supported by: Copter, Plane, Rover.
Cycle a servo PWM output pin between its mid-position value and a specified PWM value, for a given number of cycles and with a set period.
The mid-position value is specified in the RCn_TRIM parameter for
the channel (RC8_TRIM in the screenshot below). The default value is
1500..
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Ser No | Servo number - target servo output pin/channel. |
| param2 | PWM | PWM value to output, in microseconds (typically 1000 to 2000). |
| param3 | Repeat # | Cycle count - number of times to move the servo to the specified PWM value |
| param4 | Delay (s) | Cycle time (seconds) - the delay in seconds between each servo movement. |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
Mission planner screenshots
Copter: Mission Planner Settingsfor DO_REPEAT_SERVO command
In the example above, the servo attached to output channel 8 would be moved to PWM 1700, then after 4 second, back to mid, after another 4 seconds it would be moved to 1700 again, then finally after 4 more seconds it would be moved back to mid.
MAV_CMD_DO_LAND_START¶
Supported by: Plane (not Copter, Rover).
Mission command to prepare for a landing.
MAV_CMD_DO_SET_ROI¶
Supported by: Copter, Plane, Rover.
Sets the region of interest (ROI) for a sensor set or the vehicle itself. This can then be used by the vehicles control system to control the vehicle attitude and the attitude of various sensors such as cameras.
#HW TODO / Questions - What is the frame - altitude above home or above terrain or relative to vehicle?
#HW TODO / Questions - Is behaviour on all vehicles the same (except for Yaw). If so, merge 3 sections below.
Copter¶
Points the camera gimbal at the “region of interest”, and also rotates the nose of the vehicle if the mount type does not support a yaw feature.
After setting the ROI, the camera/vehicle will continue to follow it
until the end of the mission, unless it is changed or cleared by setting
another ROI. Clearing the ROI is achieved by setting a later
DO_SET_ROI command with all zero for param5-param7 (Lat, Lon
and Alt).
The above behaviour was implemented in AC3.2. In AC3.1.5 the camera/vehicle only tracks the ROI in the waypoint it is declared. A new ROI therefore needs to be set at every waypoint where tracking is required.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Region of interest mode. (see MAV_ROI enum) // 0 = no roi, 1 = next waypoint, 2 = waypoint number, 3 = fixed location, 4 = given target (not supported) | |
| param2 | MISSION index/ target ID. (see MAV_ROI enum) | |
| param3 | ROI index (allows a vehicle to manage multiple ROI's) | |
| param4 | Empty | |
| param5 | Lat | Latitude (x) of the fixed ROI |
| param6 | Long | Longitude (y) of the fixed ROI |
| param7 | Alt | Altitude of the fixed ROI |
Mission planner screenshots/video
Copter: Mission Planner Settings forDO_SET_ROI command
In the example above the nose and camera would be pointed at the red marker.
If using AC3.1.5: The nose would point at the marker for only the period that the vehicle is flying from Waypoint #1 to Waypoint #3. If you wanted the nose/camera to continue to point at the red marker as it flies from #3 to #4, a second DO_SET_ROI command would need to be entered after Waypoint #3.
If using AC3.2: The nose would continue to point at the red marker until the end of the mission. To “clear” the do-set-roi and cause the vehicle to return to it’s default behaviour (i.e. pointing at the next waypoint) a second DO_SET_ROI command should be placed later in the mission with all zero for Lat, Lon and Alt.
MAV_CMD_DO_DIGICAM_CONFIGURE¶
Supported by: Copter, Plane, Rover.
Configure an on-board camera controller system.
The parameters are forwarded to an on-board camera controller system (like the 3DR Camera Control Board), if one is present.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Mode | Set camera mode: 1: ProgramAuto 2: Aperture Priority 3: Shutter Priority 4: Manual 5: IntelligentAuto 6: SuperiorAuto |
| param2 | Shutter Speed | Shutter speed (seconds divisor). So if the speed is 1/60 seconds, the value entered would be 60. Slowest shutter trigger supported is 1 second. |
| param3 | Aperture | Aperture: F stop number |
| param4 | ISO | ISO number e.g. 80, 100, 200, etc. |
| param5 | ExposureMode | Exposure type enumerator |
| param6 | CommandID | Command Identity |
| param7 | Engine Cut-Off | Main engine cut-off time before camera trigger in seconds/10 (0 means no cut-off). |
MAV_CMD_DO_DIGICAM_CONTROL¶
Supported by: Copter, Plane, Rover.
AC3.3: Control an on-board camera controller system (like the 3DR Camera Control Board).
Currently/BEFORE AC3.3: Trigger the camera shutter once. This command takes no additional arguments.
Command parameters
The parameters below reflect the supported fields in AC3.3. In general if a command field is sent as 0 it is ignored. All parameters are ignored prior to AC3.3.
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | On/Off | Session control (on/off or show/hide lens): 0: Turn off the camera / hide the lens 1: Turn on the camera /Show the lens |
| param2 | Zoom Position | Zoom's absolute position. 2x, 3x, 10x, etc. |
| param3 | Zoom Step | Zooming step value to offset zoom from the current position |
| param4 | Focus Lock | Focus Locking, Unlocking or Re-locking: 0: Ignore 1: Unlock 2: Lock |
| param5 | Shutter Cmd | Shooting Command. Any non-zero value triggers the camera. |
| param6 | CommandID | Command Identity |
| param7 | Empty |
Mission planner screenshots
Copter: Mission PlannerSettings for DO_DIGICAM_CONTROL command.
MAV_CMD_DO_MOUNT_CONTROL¶
Supported by: Copter, Plane, Rover.
Mission command to control a camera or antenna mount.
This command allows you to specify a roll, pitch and yaw angle which will be sent to the camera gimbal. This can be used to point the camera in specific directions at various times in the mission.
Note
Supported from AC3.3, Plane 3.4
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Pitch, in degrees. | |
| param2 | Roll, in degrees. | |
| param3 | Yaw, in degrees. | |
| param4 | reserved | |
| param5 | reserved | |
| param6 | reserved | |
| param7 | `MAV_MOUNT_MODE |
Mission planner screenshots
Copter: Mission PlannerSettings for DO_MOUNT_CONTROL command
MAV_CMD_DO_SET_CAM_TRIGG_DIST¶
Supported by: Copter, Plane, Rover.
Trigger the camera shutter at regular distance intervals. This command is useful in camera survey missions.
Note
In AC3.1.5 (and earlier) versions this command cannot be shut-off. The camera will continue to be triggered repeatedly even after the mission has been ended. In AC3.2 (and higher) providing a distance of zero will stop the camera shutter from being triggered.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Dist (m) | Camera trigger distance interval (meters). Zero to turn off distance triggering. |
| param2 | Empty | |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
Mission planner screenshots
Copter: Mission PlannerSettings for DO_SET_CAM_TRIGG_DIST command
The above configuration above will cause the camera shutter to trigger after every 5m that the vehicle travels.
MAV_CMD_DO_FENCE_ENABLE¶
Supported by: Plane (not Copter or Rover).
Mission command to enable the GeoFence.
MAV_CMD_DO_PARACHUTE¶
Supported by: Copter (not Plane or Rover).
Mission command to trigger a parachute (if enabled).
Copter¶
Mission command to trigger a parachute.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | ???? | Parachute action (0=disable, 1=enable, 2=release). |
| param2 | Empty | |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
MAV_CMD_DO_INVERTED_FLIGHT¶
Supported by: Plane (not Copter or Rover).
Change to/from inverted flight.
MAV_CMD_DO_GRIPPER¶
Supported by: Copter (not Plane or Rover).
Mission command to operate EPM gripper.
Copter¶
Mission command to operate EPM gripper.
Note
This is supported from AC3.3. The instructions for integrating Copter with gripper are out of date and use DO_SET_SERVO to activate the gripper (April 2015).
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | Gripper No | Gripper number (from 1 to maximum number of grippers on the vehicle). |
| param2 | drop(0)/grab(1) | Gripper action: 0:Release 1:Grab |
| param3 | Empty | |
| param4 | Empty | |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
MAV_CMD_DO_GUIDED_LIMITS¶
Supported by: Copter (not Plane or Rover).
Set limits for external control.
Copter¶
This command sets time, altitude, and distance limits for external control (GUIDED mode). When these limits are exceeded, control will return from GUIDED mode to the mission. Setting any of these parameters to zero will remove the associated limit.
Command parameters
| Command Field | Mission Planner Field | Description |
|---|---|---|
| param1 | timeout S | Maximum time (in seconds) that the external controller is allowed to control vehicle. Use 0 to remove time limits (unlimited time allowed). |
| param2 | min alt | Minimum allowed absolute altitude (in meters, AMSL), below which the command will be aborted and the mission will continue. Use 0 to indicate that there is no minimum altitude limit. |
| param3 | max alt | Maximum allowed absolute altitude (in meters, AMSL), above which the command will be aborted and the mission will continue. Use 0 to indicate that there is no maximum altitude limit. |
| param4 | max dist | Horizontal move limit (in meters, AMSL). If vehicle moves more than this distance from its location at the moment the command was executed, the command will be aborted and the mission will continue. Use 0 to indicate that there is no horizontal limit. |
| param5 | Empty | |
| param6 | Empty | |
| param7 | Empty |
