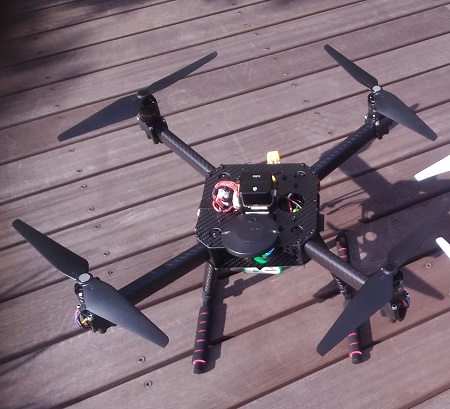

Hexsoon EDU450

The Hexsoon EDU450 is a relatively low cost frame including motors, ESCs and propellers

Parts List

• The frame will be available for purchase from late 2019 onwards from many Hex retailers
• Cube autopilot or any other ArduPilot compatible flight controller
• 3300mAh to 5300mAh 3S battery
• RC transmitter with at least 6 channels like the Futaba T10J

Connection and Setup

• Connect the four ESC wires to the back of the flight controller as shown in the QuadX configuration
• Mount the GPS/compass unit on the front of the frame slight elevated if possible to increase the distance between the ESC wires

Firmware used: Copter-4.0

Parameter file: hexsoon-edu450.param

This parameter file can also be loaded using the Mission Planner’s Config/Tuning >> Full Parameter Tree page by selecting “hexsoon-edu450” from the drop down on the middle right and then push the “Load Presaved” button.
