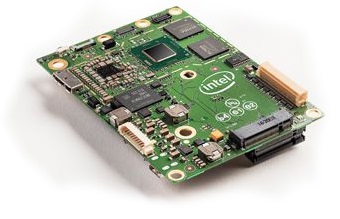

Intel Aero Overview

The Intel Aero computer board is a high performance linux board that can run ArduPilot natively while still having enough compute resources to do other CPU intensive tasks including vision processing.

Specifications

• Processor - Intel® Atom™ x7-Z8700 Processor - 2.4 GHz burst, quad core, 2M cache, 64 bit - 4GB RAM LPDDR3-1600 - 32GB eMMC
• Sensors
  • Bosch BMI160 6-Axis IMU
  • Bosch BMC150 6-axis compass
  • MS5611 Barometer
• OS
  • Linux* 4.4.3-yocto-standard OS powered with Yocto Project* 2.1 (Krogoth)
• Interfaces
  • I2C x 2
  • UART
  • SPI
  • CAN
  • 5 analog inputs
  • 25 programmable GPIO pins
  • Wi-Fi (802.11ac)
  • 1 micro HDMI 1.4b
  • 1 USB 3.0 On-the-Go (OTG) connector
  • MIPI (CSI-2) 4-lanes + 1 lane connector
  • microSD memory card slot
  • M.2 connector 1 lane PCIe for SSD
• Dimensions
  • Weight: 30g (without heatsink, 60g (with heatsink)
  • Size: 88mm x 63mm x 20mm (including heatsink)
