Acro Mode

Acro mode (Rate mode) uses the RC sticks to control the angular velocity of the copter. Release the sticks and the vehicle will maintain its current attitude and will not return to level. Acro mode is useful for aerobatics such as flips or rolls, or FPV when smooth and fast control is desired.

Overview

  • The throttle is completely manual with no compensation for tilt angle of the vehicle. If the pilot puts the throttle completely down the motors will go to their minimum rate.
  • AC3.1 and higher include an Acro Trainer functionality that can be turned on/off to make learning to fly Acro easier.
  • Stick inputs are interpreted in the “body frame” (as opposed to Sport mode in which they are “earth frame”). The difference between “body frame” and “earth frame” is most obvious when the vehicle is leaned over. For example when pitched forward at 45 degrees, when left yaw is applied if using an earth frame controller (i.e. Sport mode) the copter will maintain it’s pitch and roll angles as it’s heading changes. With a body frame controller like Acro it will rotate about the vehicle’s vertical axis meaning the pitch angle will become the roll angle and the roll angle will become the pitch angle.

Warning

Acro is the most difficult flight mode to master and you can look forward to crashing multiple times before you get the hang of it. While Acro mode does not necessarily require GPS, switching to RTL in case of emergency does. Make sure you do have a reliable position estimate prior to arming, most commonly provided by 3D GPS fix with sufficient HDOP.

The above video was filmed with a Pixhawk running AC3.2 in ACRO mode using FPV goggles.

Acro Trainer

The ACRO_TRAINER parameter can be set to:

  • 0 = disabled. This means the pilot operates in full Rate control with no automatic leveling nor angle-limiting performed by the autopilot.
  • 1 = automatic leveling. The vehicle will automatically return to the level when the pilot releases the sticks. The aggressiveness with which it returns to level can be controlled with the ACRO_BAL_ROLL and ACRO_BAL_PITCH parameters. The default of 1.0 will cause it to return to level at up to 30deg/sec. Higher values will make it return more quickly.
  • 2 (Default) = automatic leveling and lean angle limited. Includes the automatic leveling as option #1 but in addition the vehicle will not lean more than 45 degrees (this angle can be configured with the ANGLE_MAX parameter).

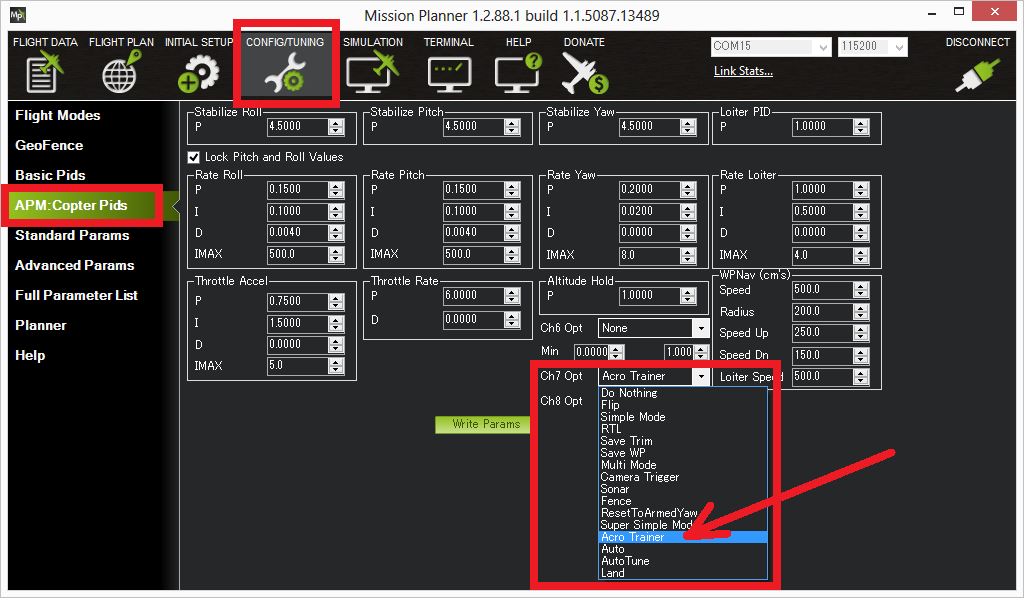

The trainer can be enabled/disabled using the Ch7/Ch8 switches. With a 3 position switch the off position (i.e. PWM < 1200) will disable the trainer, middle position will enable option #1 (automatic leveling) and the top position (i.e. PWM > 1800) will enable option #2 (leveling and lean angle limited). With a 2 position switch only options #0 (disabled) and option #2 (leveling & limited) are possible.

../_images/MP_Ch7_AcroTrainer.png

Tuning Parameters

  • ACRO_RP_P controls the rotation rate for the roll and pitch axis. The default, 4.5, will command a 200deg/sec rotation rate. Higher values lead to higher rotation rates, lower to slower rotation rates.
  • ACRO_YAW_P controls the rotation rate for the yaw axis. The default, 4.5, like roll and pitch, will command a 200deg/sec rotation rate.
  • ACRO_RP_EXPO and ACRO_Y_EXPO are an amount of Exponential to apply to the pilots stick inputs that only applies to ACRO mode. By default, ACRO mode is much more responsive, even in the center-sticks positions, than the other modes, so this parameter allows the pilot to fine-tune stick response in the control to match what they feel when they are in other modes such as Stabilize, AltHold, PosHold, etc. The default value of 0 applies 30% expo to Roll and Pitch demands from the pilot.

Advanced Tuning Parameters

After you have become very confident with flying in ACRO mode, you may want to go deeper in to tuning it based on your vehicle’s performance characteristics. These parameters should be adjusted by advanced users only with the intent of removing “bounce” after very fast roll or flip maneuvers on a vehicle that you are confident is very well tuned. Note that these parameters are global parameters that apply to all flight modes, not just ACRO.

  • ATC_ACCEL_R_MAX and ATC_ACCEL_P_MAX: Maximum acceleration in roll/pitch axis measured in Centi-degres/sec/sec. Let’s say you have a highly nimble quadcopter and you have your ACRO_RP_P parameter set to 9, which translates to a roll request of ~400deg/sec. The copter is not physically capable of going from 0deg/sec to 400deg/sec without a brief moment of acceleration. During that time, error is building up in the controller in order to get you to 400deg/sec. When you let off the sticks, that error can still be present, resulting in an overshoot of desired attitude, followed by a bounce-back. This parameter can be tuned to help remove that error during the maneuver and soften if not remove the bounce-back. Note that this is completely different from tuning the Rate D terms for Pitch and Roll, and should come only after those terms are properly tuned.
  • ATC_ACCEL_Y_MAX: Maximum acceleration in Yaw axis measured in Centi-degress/sec/sec. Same principle as ATC_ACCEL_R_MAX and ATC_ACCEL_P_MAX: Acceleration Max for Pitch but on the YAW axis based on the ACRO_YAW_P <ACRO_YAW_P> parameter value (likely a much lower, more attainable value.)
